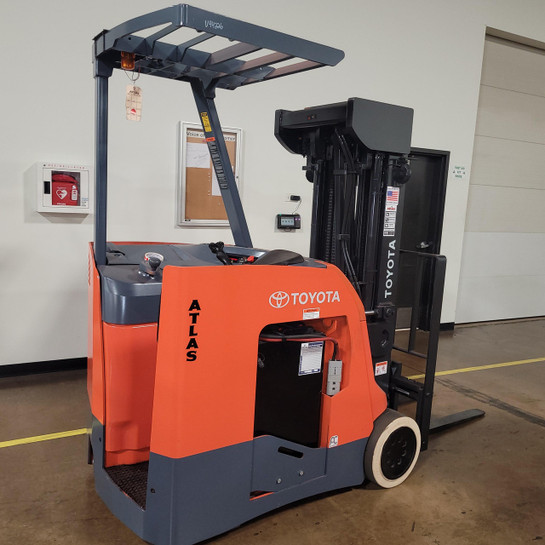

Used 4000 lb Toyota Stand Up Truck 8BNCU20
Reconditioned 4,000 lb capacity Toyota 8BNCU20 Toyota Stand Up Forklift
The unique dock-to-stock capability of the Toyota Industrial Equipment Stand Up Rider Forklift makes it top of its class and one of the most versatile forklifts in Toyota Industrial Equipment's product line. With the ability to navigate narrow aisles, the Toyota Industrial Equipment Stand Up Rider Forklift is an asset to any material handling job.
Includes:
- Battery & charger
- Side shifter
- Mast: STD triple
- Voltage: 36V
PERFORMANCE
- 36-Volt electrical system
- AC induction drive motor
- AC transistor control system with MOSFET
- AC induction lift motor
- Independent lift, steer & auxiliary motors
- Dual rubber steer tires (8BNCU15 only)
- Dual polyurethane steer tires (8BNCU18-20 only)
- Low durometer smooth rubber drive tires
- Programmable performance parameters
- Multifunction digital display
- Power hookup for onboard terminal (10 amp)
- UL-approved model type "E"
- Mast tilt (3° forward/5° backward)
- OPERABILITY
- Multifunction control handle (single-axis, simultaneous function)
- Hydrostatic power steering
- Auto-off system
- Cornering speed control
- Ventilated tractor compartment
- Auto position hold (drive motor/brake hold)
- Anti-stall protection
- Two-post overhead guard
- High-visibility mast & overhead guard
- Dual electric disc brakes (self-adjusting)
- Regenerative braking
- Proportional plugging
- 48" load backrest extension
- Hydraulic mast cushioning
ERGONOMICS
- Shock-dampened, isolated operator compartment floor
- Spacious operator compartment
- Flexible side stance operator compartment
- 7/8"-thick bubble-cushioned floor mat
- Ergonomically sloped floorboard
- Cushioned padded backrest & armrest
- Low-effort brake pedal
- Low step height
- Integrated clipboard, amenity tray & cup holder
SERVICEABILITY
- One-piece top cover
- Self-diagnostics (with instructional messages)
- Built-in analyzer
- Fault code memory
- Programmable maintenance indicator
- Battery compartment rollers (corrosion resistant)
- Battery retaining gates
- Vertically mounted motors
- Anti-static ground strap
- Reverse polarity protection
- Flashware enabled software
- SB 350 battery connector (gray)
- No directional contactors
- Multifunction hour meter
- Battery discharge indicator (with lift interrupt)
- Maintenance indicator
- Temperature indicator
LOAD HANDLING
- Full free-lift 2-stage mast (FV)
- Full free-lift 3-stage mast (FSV)
- Full free-lift 4-stage mast (QFV)
- Integral sideshift (Lift-Tek)2, 15
- Mast tilt centering (two-way)15
- Hydraulic quick disconnects (single 15 & dual 15)
LOAD HANDLING (HOSE & VALVE ASSEMBLY) WITH SIDESHIFT
- Integral sideshift (Lift-Tek) with one auxiliary function (internal reeving)2, 15 WITHOUT SIDESHIFT
- One auxiliary function (fixed carriage only) (internal reeving)
- Two auxiliary functions (fixed carriage only) (internal reeving)
LIGHTS & INDICATORS
- Travel alarm (back up only or forward only)
- Travel alarm (forward & back up)
- Fire extinguisher 2.5 lb. dry chemical
- Warning strobe light, top or bottom mounted (amber or red)
- LED work lights (mast mounted)
- LED rear work light
- LED operator compartment light
- Operator compartment fan
- 12-Volt power supply (9 amp)
- Multi-position pillar-mounted clipboard
- Electronic key (operator pin code entry)
- Capacity plate for field-installed attachments
BODY
- Load backrest, optional height (30," 36," 42")
- Factory pre-programmed maximum travel speed (5 mph)
- Travel speed reduction above free-lift
- Digital load weight display
- Lift limit switch with bypass
- Keyless on/off switch (in lieu of key switch)
- OHG: intermediate height 83"
- OHG: intermediate height 84" -; 93"
- Mast tilt (5° forward/3° backward)
- Bottler's mast tilt (10° forward/3° backward)
- Extended operator compartment backrest
- Compartment sensor system (CSS)
- Hinged rear operator guard (full length)
FORK
- STANDARD TAPERED: Fork lengths (4" wide x 1.5" thickness) -; 30," 36," 42," 48," 54," 60"
- FULLY TAPERED & POLISHED: Fork lengths (4" wide x 1.5" thickness) -; 30," 36," 42," 48," 54," 60"
WHEELS & TIRES
- Polyurethane drive (black), 83 durometer (16.25" x 11.25" x 6")
- Polyurethane drive (black), 83 durometer (16.25" x 11.25" x 7")
- Non-marking rubber drive (white), 65 durometer (16.25" x 11.25" x 6")
- Non-marking rubber drive (white), 65 durometer (16.25" x 11.25" x 7")
- Traction rubber drive (black), 64 durometer (16.25" x 11.25" x 6")
- Traction rubber drive (black), 64 durometer (16.25" x 11.25" x 7")
- Razor siped polyurethane drive (red), 83 durometer (16.25" x 11.25" x 6")
- Razor siped polyurethane drive (red), 83 durometer (16.25" x 11.25" x 7")
- Dual rubber steer (black), 72 durometer
- Dual polyurethane steer (tan), 95 durometer
- Dual polyurethane steer (red), 85 durometer
Model:8BNCU20, Tire Type: Cushion
Featured Attribute:Electric, Power/ Fuel Type:Battery, Electrical System Voltage: 36V, Max Capacity (lbs.):5000, Max Travel Speed Empty (mph):12.4, Max Travel Speed Loaded (mph): 11.8, Lift Speed Loaded (fpm):91, Max Gradeability Loaded (%): 24/29, Basic Right Angle Stack (in.): 100.7, Length to Fork Face (in.):95.6, Overall Height Collapsed (in.):88, Overall Width (in.):47, Lift Height (in.):179.5, Turn Radius Outside (deg/in): 84.2,Turn Radius Inside (deg/in): 60.8, Wheelbase (in.): 67.7
Model:8BNCU20
