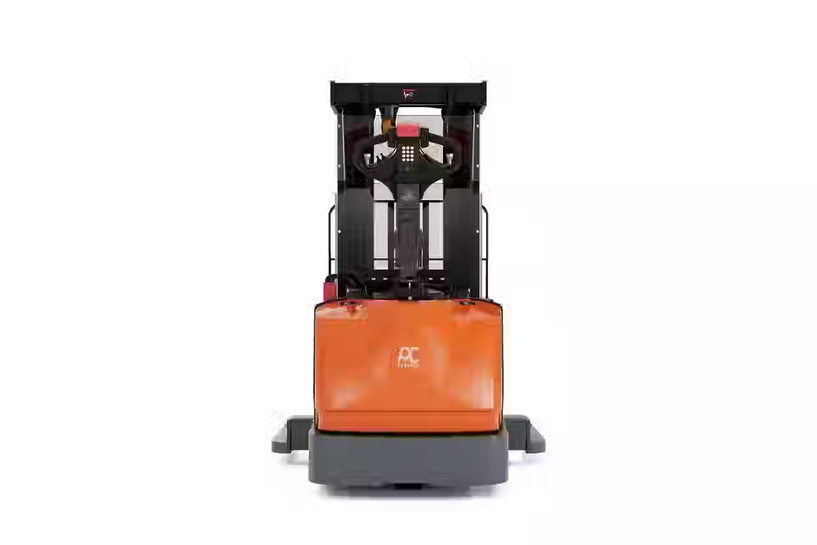

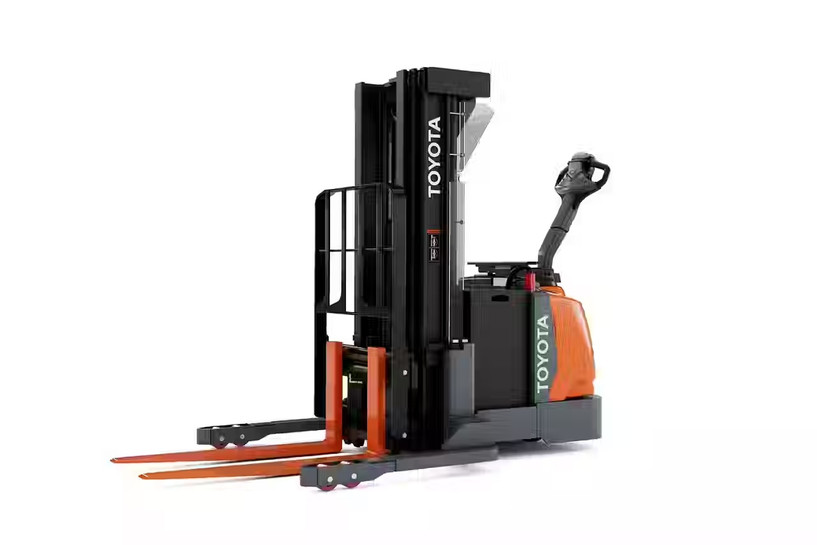

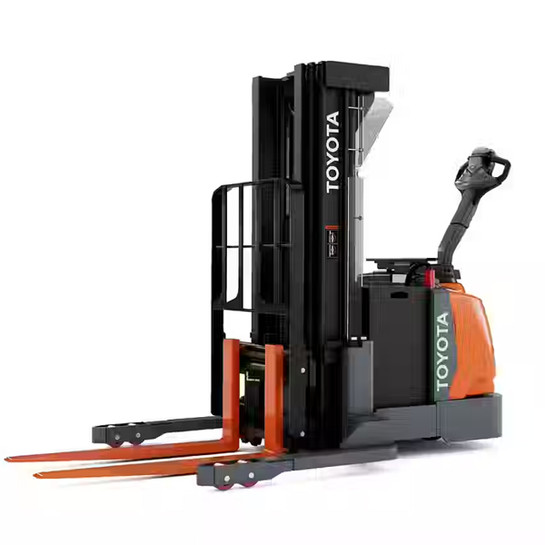

Toyota Walkie Straddle Stacker
| When a traditional forklift isn’t necessary but you need to lift product above a second-tier rack, the Toyota Walkie Straddle Stacker is a cost-efficient, easy-to-use solution. With top-of-the-line durability and long-run performance, the Industrial Stacker is an economical complement to nearly any forklift fleet. |
WALKIE STRADDLE STACKER
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Gradeability - Full (%)
|
Max Lift Speed - Full (FPM)
|
|
WS1-HD22
|
2,200
|
3.5
|
6
|
37
|
|
WS1-HD30
|
3,000
|
3.5
|
6
|
32
|
|
WS1-HD40
|
4,000
|
3.5
|
6
|
27
|
PERFORMANCE
- 24 Volt Electrical System
- SB-175 Red Connector
- On/Off Key Switch
- UL Type-E Constructed
- Electric Raise And Lower Controls In Operator Handle
- AC Drive Motor
- Cushioned Mast Stops
BODY/EXTERIOR DESIGN
- Electric Horn
- 30 Inch Wide ITA Class II Hook Type Carriage
- 42 Inch Long Pallet Forks
- 48 Inch High Load Back Rest Extension
- Rubber Drive Tire
- Tandem Polyurethane Load Wheels 4” dia. x 2.875”
- Battery Compartment: 32.13” x 9.13” x Open Height (Steel-to-Steel)
- Battery Compartment: 32.13” x 13.38” x Open Height (Steel-to-Steel)
- 32” to 50” Base Leg Openings in 1” increments
- Easy Access Service Cover
- Fixed Baselegs
OPERABILITY & ERGONOMICS
- Emergency Power Disconnect Switch
- Battery Discharge Indicator w/ Lift Interrupt and Hour Meter
- Regenerative Plugging
- Ergonomically Advanced Control Handle
- Polycarbonate Mast Guard
- Dual Thumb Wheel Control Forward and Reverse
- Direction and Travel Speed
- Power On Self Test Model:Walkie Straddle Stacker, Tire Type: Rubber / Polyurethane
Featured Attribute:Electric, Power/ Fuel Type:Battery, Electrical System Voltage: 24V
