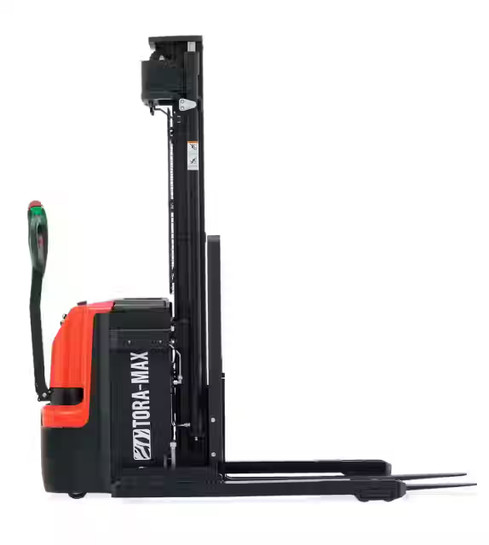

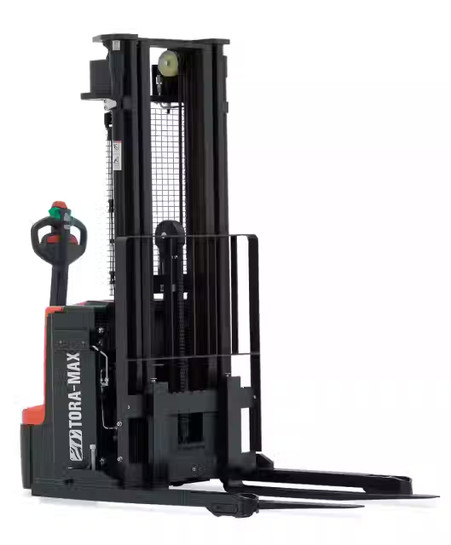

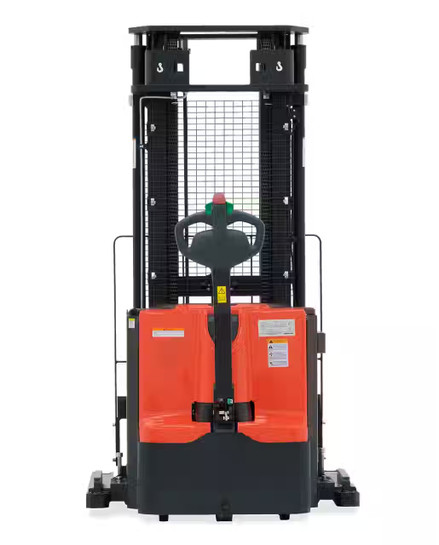

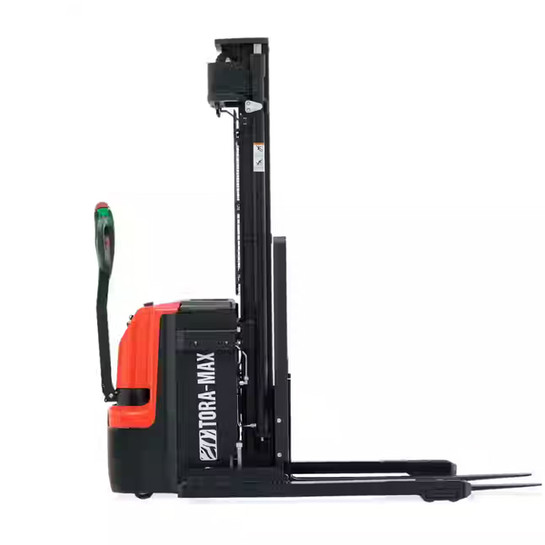

Toyota Tora-Max® Straddle Stacker
| Ideal for repetitive processes, the Tora-Max® Straddle Stacker is the perfect lift to meet all your stacking needs. With a lifting capacity ranging from 3,500 – 4,000 lbs. and a maximum lift height of 207 inches, this stacker provides the versatility you need to handle various loads and stacking heights. Additionally, the Straddle Stacker is equipped with adjustable baselegs, also known as straddle legs, allowing you to maneuver various pallet sizes easily and efficiently. |
TORA-MAX® STRADDLE STACKER
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed - Full (MPH)
|
Max Gradeability - Full (%)
|
Basic Right Angle Stack (in)
|
|
2TSB35
|
3,500
|
3.4
|
6
|
96
|
|
2TSB40
|
4,000
|
3.4
|
6
|
96.3
|
PERFORMANCE
- 24 Volt Electrical System
- AC Drive Motor
- Regenerative Braking
- Contactor-less Drive / Lift Control
- Proportional Lift / Lower Control
- P54 Rated Controlle
- DC Lift Motor
- CAN-BUS Communication
OPERABILITY & ERGONOMICS
- Multifunction Control Handle with Ergonomically Angled Hand Grips
- Fingertip Control of All Functions
- Directional Thumb Wheels
- Pneumatic Cylinder Control Handle Return
- Parking Brake Electromagnetic Disc
- Turtle Speed Button
- Electric Lift and Lower
- LCD Battery Discharge Indicator with Hour Meter
- Built in USB-Connector for Charging
BODY / EXTERIOR DESIGN
- Polyurethane Drive Tire
- Polyurethane Load Wheels
- On-Board Charger
- 24V Lead-Acid Battery
- Key-Lock Access
- 42” Forks
- Mesh Screen Protection
- Load Backrest
- Adjustable Baselegs
Model:Tora-Max® Straddle Stacker, Wheel Type: Polyurethane
Fuel Type: Battery , Electrical System Voltage: 24V, Fork Length (actual) (in.):45.3, Load Capacity:3500-4000, Max Gradeability - Full Load: 6%, Max Travel Speed - Loaded (mph):3.4
Model:Tora-Max® Straddle Stacker
