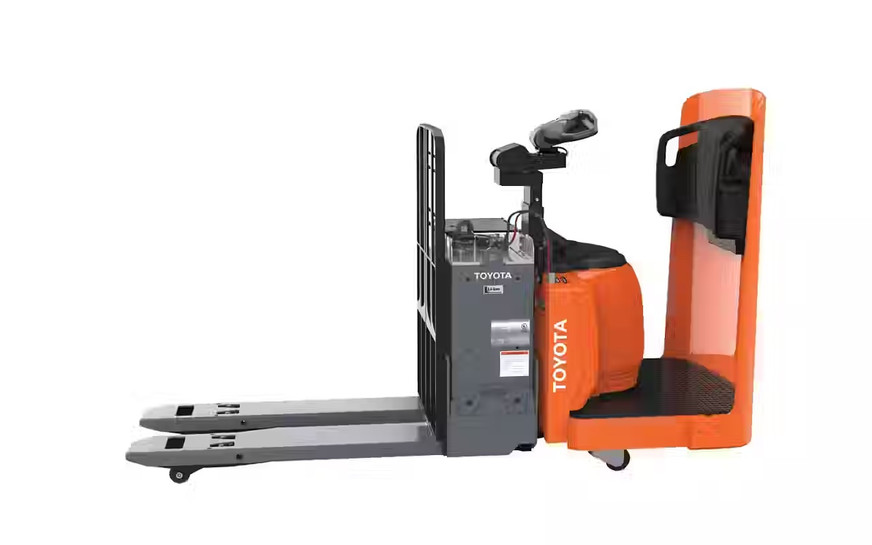

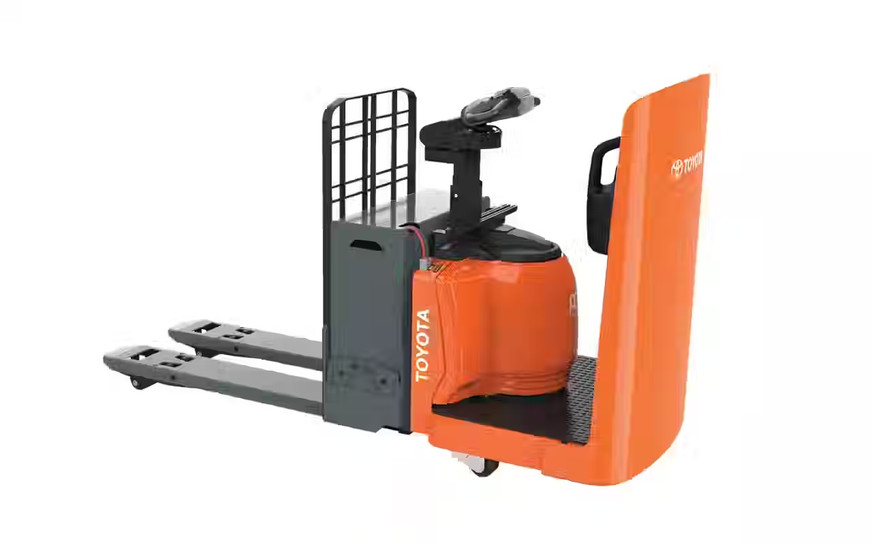

Toyota Side-Entry Rider
| Toyota’s Side-Entry End Rider is ergonomically friendly, equipped with standard power steering, best-in-class turning radius, and easy pallet entry and exit, to get the job done. The Side-Entry End Rider assists operators with speed reduction in turns, making it easier to transport loads when cornering, ideal for a combination of applications. Trust Toyota’s Side-Entry End Rider to be the ideal truck for dock work, cross-warehouse hauling, and low-level order picking. |
SIDE-ENTRY RIDER PALLET JACK
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Gradeability Full Load (%)
|
Battery Voltage (V)
|
|
ER1-EF60
|
6,000
|
6.5
|
8
|
24
|
|
ER1-EF80
|
8,000
|
6.5
|
8
|
24
|
PERFORMANCE
- 24 Volt Electrical System
- AC Drive Motor
- Regenerative Plugging
- Heavy Duty Spring Loaded Casters
- Electric Power Steering
- Battery Discharge Indicator with Lift Interrupt
- Hour Meter Indicator
- Horn
- Automatic Parking Brake
- UL Type "E" Construction
BODY/EXTERIOR DESIGN
- 13.13" Long x 31" Wide x 31" High Battery Compartment
- Dual Lift Cylinders
- Operator Compartment Sensor System
- Steel Pull Rods
- Stainless Steel Lift Pins
- Electric Disc Brake
- Emergency Power Disconnect
- Fork Lift of 6"
- Rubber Drive Tire
OPERABILITY & ERGONOMICS
- Cushioned Operator Backrest
- Programmable Performance
- Start Up and Run Time Diagnostics
- Anti-Roll Back
- Multifunction Control Handle with Ergonomically Angled Hand Grips
- Speed Reduction in Turns
Model:Side-Entry Rider, Wheel Type: Rubber / Polyurethane
Fuel Type: Battery, Electrical System Voltage: 24V, Power Unit Height (in): 31.4
