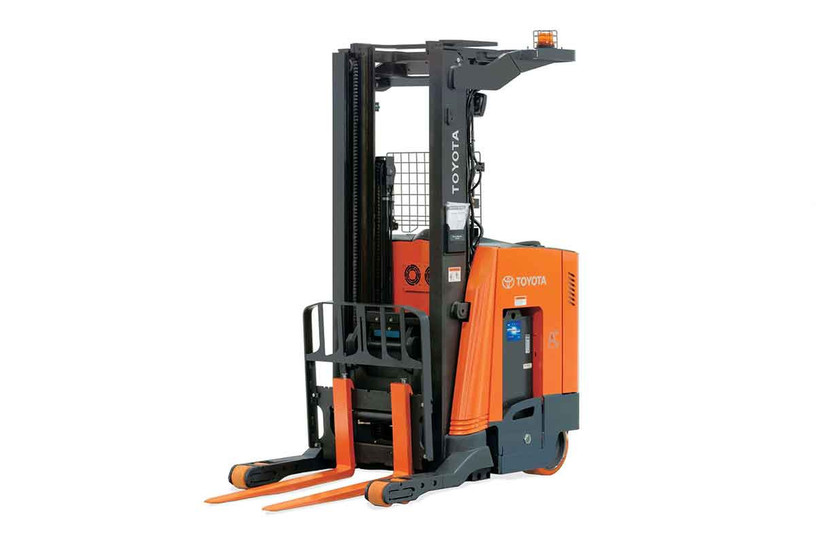

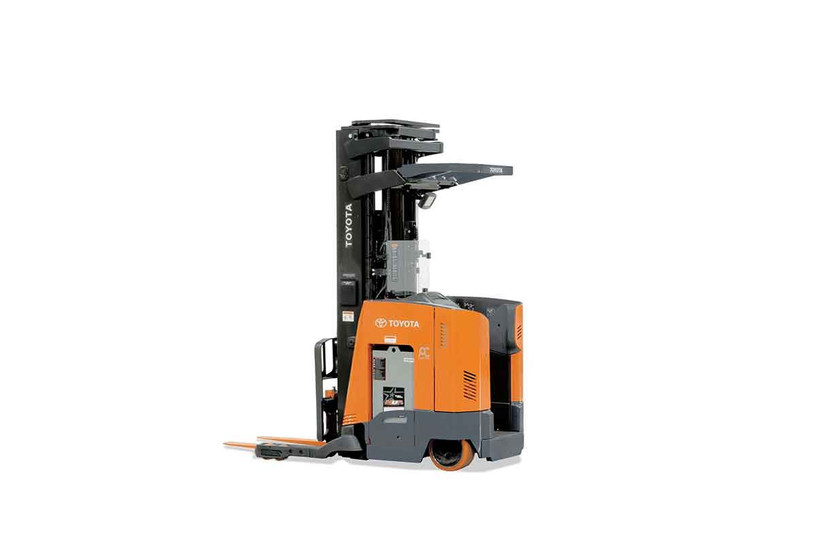

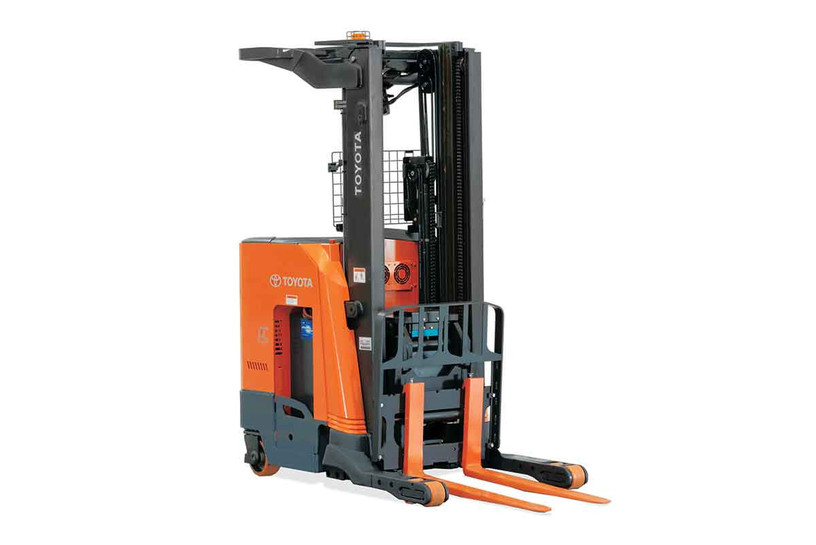

Toyota Reach Truck
| Toyota’s Electric Reach Truck delivers on efficiency and performance like never before. This Reach Truck comes with unique features coupled with the longstanding productivity, ergonomics, and low cost of ownership you expect from Toyota. The Toyota Reach Truck provides optimal visibility when reaching a second-level pallet position. The open view mast utilizes a 4-cylinder design to maximize forward visibility. Rigid mast construction helps minimize mast sway for precise load handling at maximum lift heights. This Reach Truck enables you to reach higher, work smarter, and be comfortably productive whether you’re moving from dock-to-stock, stock-to-dock, or anywhere in between. |
REACH TRUCK
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Lift Height (in.)
|
Battery Voltage (V)
|
|
RF1-BE1X35
|
3,500
|
5.5
|
270
|
24
|
|
RF1-BE1X40
|
4,000
|
5.5
|
268
|
24
|
|
RF1-BH1X35
|
3,500
|
7
|
270
|
36
|
|
RF1-BE2X25
|
2,500
|
6.5
|
252
|
24
|
|
RF1-BH1X45
|
4,500
|
7
|
372
|
36
|
|
RF1-BH1X40
|
4,000
|
7.065
|
268
|
36
|
|
RF1-BH2X25
|
2,500
|
7
|
252
|
36
|
|
RF1-BH1X35
|
3,500
|
7
|
270
|
36
|
|
RF1-BH2X30
|
3,000
|
7
|
372
|
36
|
|
RF1-SD1Z45
|
4,500
|
7.5
|
372
|
36
|
|
RF1-HP1Z45
|
4,500
|
6
|
444
|
36
|
|
RF1-HP2Z32
|
3,200
|
7
|
444
|
36
|
|
RF1-HP2X32
|
3,200
|
7
|
444
|
36
|
|
RF1-SD2Z32
|
3,200
|
6
|
372
|
36
|
|
RF1-HP1X45
|
4,500
|
6
|
444
|
36
|
|
RF1-SD1X35
|
3,500
|
6
|
301
|
36
|
|
RF1-SD1X45
|
4,500
|
7.5
|
372
|
36
|
PERFORMANCE
- 24 Volt Electrical System
- 36 Volt Electrical System
- AC Powered Drive System with
- Torque Control
- AC Hydraulic System
- Multifunction Control Handle
- Variable Speed Lift and Lowering
- Electric Power Steering Motor
- 7” Color Touchscreen Display Panel
- Multifunctional Hour Meter
- Time & Date Display
- Programmable Travel, Acceleration, Lift/Lower Speeds, Reach/Retract & Coast Control
- Fault Code Memory
- Weight Display
- Two Speed Reach / Retract
- Current controlled proportional valve
- Lowering flow limiter
- Lift system relief valve
- UL “E” Construction
OPERABILITY
- 180-Degree Electronic Power Steering
- Auto-Position Hold
- Sidestance Operator Compartment
- Open-View 3-Stage Mast (FSW)
- Hydraulically Cushioned Mast Staging
- Hydraulic Cushioned Retract System
- Hydraulic Fork Deceleration at Floor Level
- 33 in. to 52 in. Base Leg Openings (ID) - in 1 in. increments 1,2
- Polyurethane Drive Tire (13.5 in. dia. x 6.0 in.)
- Tandem Articulated, Bolt-On Polyurethane
- Load Wheels (5 in. x 3.62 in.)
- Load Wheels (6 x 4 in.)
- Polyurethane Caster Wheel (8 in. x 4 in.)
- Electric Disc Brake
- Regenerative Plugging
- Ventilated Tractor Compartment w/ Door Mounted High Capacity Cooling Fan
- 36 in Tilting Load Backrest Extension (5° Fwd / 3° Bwd)
- 36 in Tilting Load Backrest Extension (3° Fwd / 4.5° Bwd)
- ITA Class II Hook-Type Carriage (32 in. Wide)
- Forks: 42 in. x 1.5 in. x 4 in. / 42 in. x 1.75 in. x 4 in.
- Anti-Static Ground Strap
- Proportional handle plugging
- Lift slowdown at max lift
- Tapered Toe Box 5” x 3.62”9
- Adjustable speed limit above freelift (0-3.5 mph)
- View-through Carriage
ERGONOMICS
- Bubble Cushioned Padded Floor & Brake Pedal
- Low Step Height
- High Visibility Overhead Guard
- Safety Glass Mast Guard3
- Comfort-Padded Lean Points
- Cushioned Knee Pad
SERVICEABILITY
- Battery Compartment Rollers
- Battery Retaining Gates (Adjustable)
- SB350 Red Connector
- SB350 Grey Connector
- Bolt-on, Ductile Iron Base Legs
- Battery Discharge Indicator w/ Lift Interrupt
- Self Diagnostics
- Built-In Analyzer
- Self-Adjusting Electric Disc Brake
- Emergency Power Disconnect Switch
- Electro-Mechanical Horn
- Key Switch
- Enclosed Battery Compartment:
- 14.2 in. x 38.62 in. x 31 in.
- 16.2 in. x 38.62 in. x 31 in.
- 18.2 in. x 38.62 in. x 31 in.
- 21.2 in. x 38.62 in. x 31 in.
- 23.8 in. x 38.62 in. x 31 in.8
Model:RF1-HP2Z32, Tire Type: Polyurethane / Rubber
Featured Attribute:Electric, Power/Fuel Type: Battery, Electrical System Voltage: 36V Horsepower (hp): 7.1
