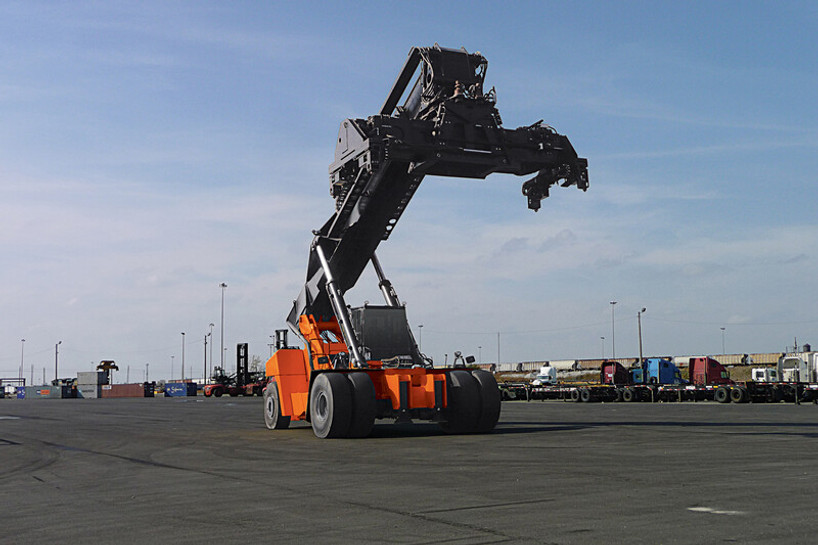

Toyota Reach Stacker Container Handler
| The Toyota Industrial Equipment Reach Stacker Container Handler is used to handle a diverse range of heavy-lift applications, from loading and unloading trailers to transporting wind turbine components. Stacking up to 5 containers high with a reach depth of 3 rows and lifting capacity of up 99,000 lbs, the Toyota Industrial Equipment Reach Stacker Container Handler is built for any heavy-duty job. |
REACH STACKER CONTAINER HANDLER
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Gradeability Full Load (%)
|
Basic Right Angle Stack (in.)
|
|
THD9900-R60
|
99,000 (1st row) / 60,000 (2nd row) / 30,000 (3rd row)
|
19.3
|
18.2
|
480 (20' cont.) / 565 (40' cont.)
|
|
THD9900-R68
|
99,000 (1st row) / 68,000 (2nd row) / 34,000 (3rd row)
|
19.3
|
17.5
|
480 (20' cont.) / 565 (40' cont.)
|
|
THD9900-R73
|
99,000 (1st row) / 72,600 (2nd row) / 38,500 (3rd row)
|
19.3
|
17.2
|
480 (20' cont.) / 565 (40' cont.)
|
|
THD9900-R77
|
99,000 (1st row) / 77,000 (2nd row) / 44,000 (3rd row)
|
19.3
|
16.9
|
480 (20' cont.) / 565 (40' cont.)
|
|
THD9900-R85
|
99,000 (1st row) / 85,000 (2nd row) / 47,000 (3rd row)
|
20.1
|
15.8
|
508 (20' cont.) / 586 (40' cont.)
|
|
THD9900-R90
|
99,000 (1st row) / 90,000 (2nd row) / 68,000 (3rd row)
|
20.1
|
15.6
|
508 (20' cont.) / 586 (40' cont.)
|
SAFETY
- Electrical horn
- Asbestos-free components
- Neutral safety switch
- Integrated overhead guard
- Operator Restraint System (ORS) seat
- Operator Presence Sensing System (OPSS)
PERFORMANCE
- CUMMINS® 10.8 liter, 6-cylinder Tier 3 diesel engine
- Common rail electronic fuel injection system
- Turbocharged & intercooled
- Pivoting attachment with 4 ISO twistlocks
- Extendable/retractable to 20' & 40' foot pick points
- Automatic locking pendular floating twistlocks for handling 20' to 53' ISO containers
- Large LED twistlock engagement indicator lights
- Interlock safety system to ensure proper locking
- 31.5" of side shift each way
- Mechanical pile slope (+/- 5.0 deg)
- High-load composite side thrust bearings
- Boom-mounted twistlock indicator light
- Warning lights
- - battery charge
- - low engine oil pressure
- - low fuel level
- - water in fuel
- - high engine water temperature
- - clogging air filter
- - high transmission oil temperature
- - park & service brake
- - hydraulic filter
- - transmission filter
- Dana model 36000 transmission with 4 forward & 4 reverse speeds
- 4-spool main control valve (lift, tilt, extend, rotate)
- Charge air cooler with integral side by side radiator & transmission coolers
- Independent brake & brake/declutch pedals
- 2-stage high-strength steel telescoping boom
- Load-sensing, hydrostatic-powered steering
- Upswept exhaust
- Integrated multifunction display – includes
- - Hour meter display
- - Fuel gauge
- - Low fuel warning light
- - Engine oil pressure gauge
- - Battery charge warning light
- - Water temperature gauge
- - Transmission temperature gauge
- - Transmission, air & hydraulic filter indicator
- - Parking brake indicator
- - Oil pressure indicator
- - Service indicator
- - Engine water temperature indicator
- - Tachometer
- - Speedometer
- Overload warning system
DURABILITY
- Force-cooled wet disc brakes
- Planetary drive axle rated for durability in high-capacity, off-road applications
- AxleTech® planetary drive axle rated for durability in high-capacity, off-road applications
- Heavy-duty, welded steer axle
- Rigidly constructed welded frame
- Engine protection system
- High-capacity cooling system
- Open core radiator with fan shroud motor & alternator
- Two industrial 8D 12V batteries
- Two-stage heavy-duty air cleaner
- 12-Volt electrical system with 12V starter motor & alternator
- "Brake Saver" system prevents travel when parking brake is applied
ERGONOMICS/CABIN
- LED front headlights (2)
- LED rear worklights (2)
- LED spreader lights (4)
- LED forward-facing fender-mounted worklights (2)
- LED rear-facing counterweight-mounted worklights (2)
- Stairway lighting
- Strobe light
- Forward & reverse travel alarms
- Single multifunction joystick control handle
- Key off headlights
- Sideview mirrors (right & left sides)
- Front indicator lights (2)
- Rear combination lights (2)
- Dashless cab design for improved visibility
- Front & rear windshield washer/wiper
- Top-mounted windshield wiper
- Cabin doors with sliding windows
- Individually controlled front/rear wipers
- LED twistlock indicator lights inside cab
- Tilt steering column
- Left-hand directional shift lever
- Adjustable air-ride seat with retractable seatbelts and adjustable armrests
- Lockable doors with greaseable hinges
- Cab heater & defroster
- Tinted glass to minimize glare
- Four turn lock-to-lock steering wheel
- Emergency E-Stop in operator compartment
- Dome light
- Hydraulically powered traversing cab
- Rear window escape hatch
SERVICEABILITY
- Electronic engine diagnostics with fault code history
- Easy-access filters
- Hydraulic multi-gauge
- Externally serviceable brakes
- Bolt-on tanks, counterweights, cab super-structure & stairways (removable)
- External attachment spreader cylinders
- Powertrain access panels with quick-release latches
OPTIONAL EQUIPMENT
POWERTRAIN
- Tier 3 diesel engine
- Tier 4i (interim) diesel engine
- Precleaner
- Fitch fuel catalyst
LOAD HANDLING
- Mechanical pile slope
- Hydraulic pile slope
- 4-point top pick ISO – twistlock
- WTP/pin module
- Trailer leg module (requires 275" wheelbase)
- Rear container guides
- Spreader beam slave attachments
- Twistlock snapshot camera system
- Container landing damage prevention system
COLD START AID
- Oil pan heater
- Engine block heater
- Hydraulic tank heater
- Fuel heater (diesel)
- Battery pad warmer
- Coolant preheater
CAB/CONTROLS
- Open cab (less doors, glass, wipers, heat)
- AM/FM/CD with 2 speakers
- Auxiliary 12V power supply (pass through studs)
- Air-conditioning
- Top sunshade
- Single joystick control
- Orange seatbelt
- Rearview mirror (center mount)
- Auxiliary heater/front defrost
- 3-point seatbelt
- Floor-mounted computer stand
INDICATORS & MISC.
- Forward camera system visibility aid
- Rear camera system visibility aid
- Dual camera system visibility aid
- Onboard load weighing system
- Onboard load weighing system (with tape printer)
- Fire extinguisher (5 lb. cab mount)
- Fire extinguisher (20 lb. chassis mount)
- Fire suppression system
- - Twin agent auto/manual
- Rear object detection radar
- 4-corner object detection radar
- Shock sensor warning system (w/logging)
- Tire pressure monitoring system
- 2nd position keyswitch twistlock override
- Ground-level E-Stop stations (1 each side)
- Ground-level monitoring kit
- French Canadian language
ELECTRICAL
- Jumpstart receptacle • Lockable battery isolator
COLD START AID
- Oil pan heater
- Engine block heater
- Hydraulic tank heater
- Fuel heater (diesel)
- Battery pad warmer
- Coolant preheater
SERVICE/MAINTENANCE
- Central lubrication system
- Auto-lubrication system (chassis)
- Auto-lubrication system (spreader)
- Engine oil purification system
- Onboard battery trickle charger
- Onboard stand-alone generator
WHEELS & TIRES
- Pneumatic
- Foam-filled pneumatic tires
- Solid pneumatic tires (lugged)
- Solid pneumatic tires (smooth)
- Extra tire/rim
PAINT OPTIONS (REQUIRES PAINT CODE & MAP)
- Custom color (single or dual)
- Chevron striping on counterweight
- Intermodal tire striping
Model:THD9900-R90, Work Height (in.): 738"
Featured Attribute:Container Handler, Fuel Type:Diesel
