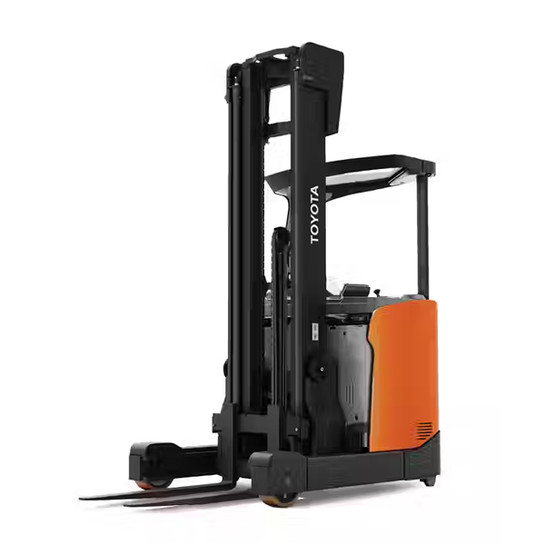

Toyota Moving Mast Reach Truck

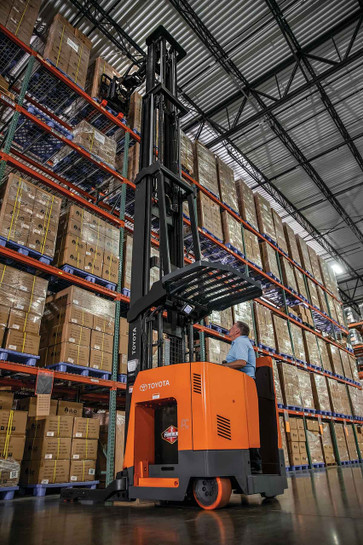

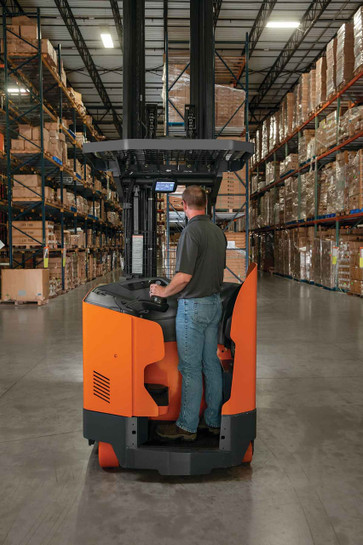

| With a max lift height of 512 inches, Toyota’s Moving Mast Reach Truck offers clear and precise control for fast and smooth handling shift after shift. With a unique optional tilting cab system, your operators not only have a clear view of their load, which can reduce the risk of neck and shoulder straining at high-level applications, but it allows for faster and more accurate fork positioning. With the trend of warehouses continuing to build upward due to space constraints, the Moving Mast Reach Truck is designed to deliver the perfect fit for your operation’s needs. |
MOVING MAST REACH TRUCK
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Gradeability Full Load (%)
|
Max Lift Height (in.)
|
|
RRE140H
|
3,000
|
6.4
|
10
|
433.1
|
|
RRE160H
|
3,500
|
6.2
|
10
|
433.1
|
|
RRE180H
|
3,900
|
6.8
|
10
|
511.8
|
|
RRE200H
|
4,400
|
6.8
|
10
|
511.8
|
|
RRE250H
|
5,500
|
6.8
|
7
|
511.8
|
OPERABILITY
- Selectable 360-degree or 180-degree Electronic Power Steering
- Wide-View 3-Stage Mast (FSV)
- View-through Carriage 35.4 in. to 51.2 in. Base Leg Openings (ID)
- Polyurethane Drive Tire (11.8 in. dia. x 4.2 in.)
- Polyurethane Load Wheels (13.8 in. x 5.5 in.)
- Regenerative Braking
- 39.4 in. Load Backrest Extension
- ITA Class II Hook-Type Carriage (31 in. Wide)
- Forks: 1.57 in. x 4 in. x 45.28 in.
- Proportional plugging
- Transitional Lift Control
- Steering Direction Indicator
ERGONOMICS

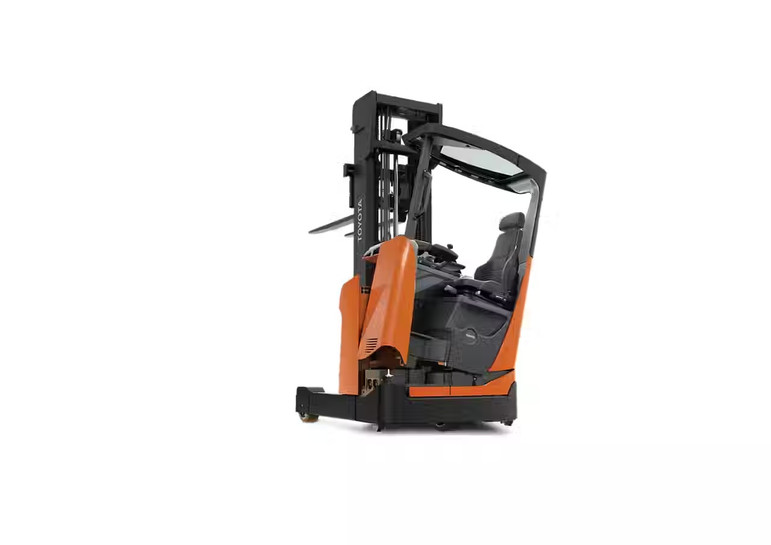

- Automatic Tilting Operator Compartment4
- Seated Operator Compartment
- Manually Adjustable Height Floor
- Adjustable Armrest with Fingertip Controls
- High Visibility Overhead Guard
- Adjustable Steering Wheel
SERVICEABILITY
- Battery Extraction by Mast
- Euro-style Battery Connector
- Battery Discharge Indicator w/Lift Interrupt
- Self Diagnostics
- Built-In Analyzer
- Over Temperature Indicator w/ Protection On Drive & Lift Motor
- Electric Disc Brake
- Emergency Power Shut-Down
- Electric Horn
- Operator PIN Code Access
- Enclosed Battery Compartment:
- 10.8 in. x 47.7 in. x 30.9 in.1
- 13.7 in. x 47.7 in. x 30.9 in.2
- 16.5 in. x 47.7 in. x 30.9 in.
- 19.3 in. x 47.7 in. x 30.9 in.3
PERFORMANCE
- 48 Volt Electrical System
- AC Powered Drive System
- AC Hydraulic System
- Variable Speed Lift and Lowering
- Electric Power Steering
- Current controlled proportional valve
- Lowering flow limiter
- Lift system relief valve
- Optimized Cornering Control
- Optimized Reach Control
- Interactive Digital Display Panel
- Multifunctional Hour Meter
- Time & Date Display
- Programmable Travel and
- Acceleration Speeds
- Lift/Lower Speeds
- Fault Code Memory
Model:RRE250H, Tire Type: Polyurethane / Rubber
Featured Attribute:Electric, Power/Fuel Type: Battery, Electrical System Voltage: 48V Horsepower (hp): 14.1
