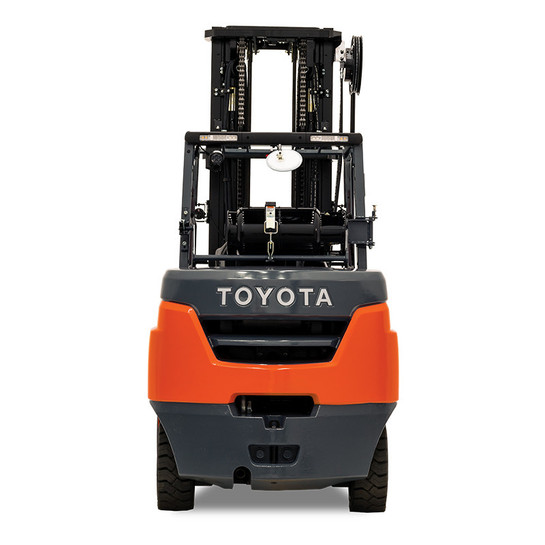

Toyota Large IC Cushion Forklift

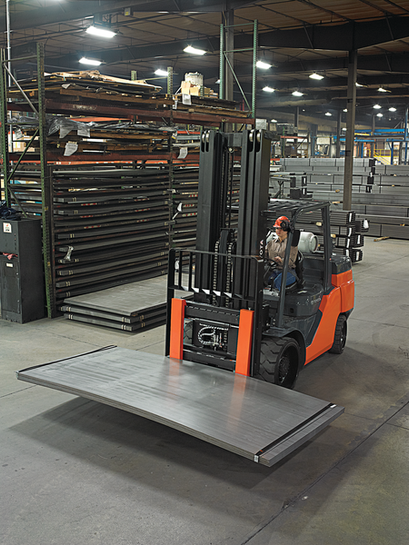

| Toyota Industrial Equipment’s Large IC Cushion forklift is a durable, high lift capacity forklift used primarily indoors and in specialty applications such as retail, lumber yards, heavy-duty manufacturing, shipping and freight, and various warehouse applications. The Large IC Cushion can be outfitted as the Box Car Special or the Paper Roll Special forklift models. |
LARGE IC CUSHION FORKLIFT
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Gradeability Full Load (%)
|
Basic Right Angle Stack (in.)
|
|
50-8FGC35U
|
8,000
|
11.8
|
47
|
108
|
|
50-8FGC45U
|
10,000
|
11.8
|
37
|
113
|
|
50-8FGC55U
|
12,000
|
13
|
34
|
118
|
|
50-8FGC60U
|
13,500
|
13
|
31
|
123
|
|
50-8FGC70U
|
15,500
|
13
|
28
|
123
|
- Control Area Network (CAN-bus) communication
- Fully stamped steel side panels
- Full-floating front axle
- Moisture-resistant electric connectors
- Limited free-lift 2-stage mast (V)2
- 3-stage limited free lift mast (FSV)1
- High cooling capacity radiator
- Low-maintenance battery
- Large-capacity engine-cooling fan
- 8" cyclone air cleaner
- Plate-iron front fenders
- Anti-restart ignition key switch
- Stamped steel engine hood
- External hydraulic oil cooler
- Radiator screen
- Tilt cylinder boots
- Force-cooled wet disc brakes
- Fully oil charged lift cylinders
- (FV, FSV mast only)
SUPPORT
- System of Active Stability™ (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key lowering interlock
- Electric horn
- Neutral start safety switch
- Asbestos-free components
- Orange forks
- LED headlights
- Key off/headlight off system
- Speed control
PERFORMANCE
- EPA/CARB-certified engine
- UL-approved model type “LP”
- Toyota Industrial Equipment 4-cylinder, 3.7 liter, OHV engine (1FS)
- Distributorless ignition system
- Alternator with built-in regulator (70A)
- Automatic transmission with oil cooler
- Full-floating powertrain
- Electric shift control
- Treaded cushion tires (front & rear)
- Wide tread
- LCD multi-function display – includes:
- - Data log, fuel, and operation information with QR code output
- - Master warning, wheel, direction, and mast tilt indicators
- - Various hours meters
- - Engine coolant temperature gauge
- - Fuel gauge (excluding LP)
- - Check engine light
- - Engine oil pressure warning light
- - OPSS activation light
- - Parking brake indicator
- - SAS/OPSS warning light
ERGONOMICS
- 11.8"-dia. two-spoke steering wheel
- Load-sensing power steering
- Cowl-mounted hydraulic control levers with rubber boot covers
- Double-action parking brake (hand)
- 12"-long dual operator assist grips
- Low, wide entry steps
- Oversized cup holder
- Low-profile front cowl
- Vinyl, 4-way adjustable full-suspension seat
- Heavy-duty non-slip floor mat
- Non-cinching seatbelt
- Integrated headlight & turn signal lever
- Hydraulic accumulator
- Intelli-Shift
- Mini-lever controls with ErgoShift
- Synchronized steering
- Combination brake & inching pedal
- EZ Pedal (foot directional control)
- Steering wheel with knob
- Strobe lights
- LED front combination lights
- LED rear combination lights
- LED rear work light
- LED reverse-activated rear work light
- Cloth, 4-way adjustable full-suspension seat
- Swivel seat
- Orange seatbelt
- Box fin radiator
- Fire extinguisher
- 2-stage (FV) & 3-stage (FSV) full free-lift masts
- Hang-on sideshifters
- Polished & tapered forks
- Pre-cleaner for air intake
- Rearview mirrors
- Rear assist grip with horn button
- Back up alarms
- 12-volt power supply
- 5-way hydraulics
- Boxcar Special counterweight
- Paper Roll Special counterweight
- Hydraulic valve for clamping attachments
- Integral sideshifter
- Integral sideshifting fork positioner
- Forward and reverse facing blue light
- Red zone light
- Seatbelt interlock
- Premium ventilation package
- Polycarbonate overhead guard cover
LOAD CENTER
- 24 IN. O
Tire Type: Cushion
Power/ Fuel Type:LPG, Electrical System Voltage: 12
