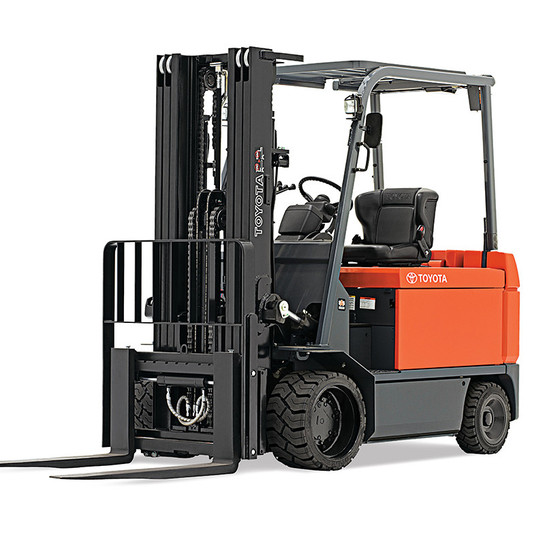

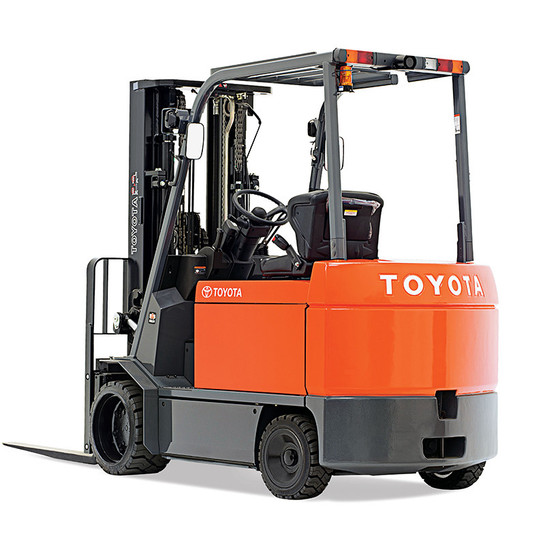

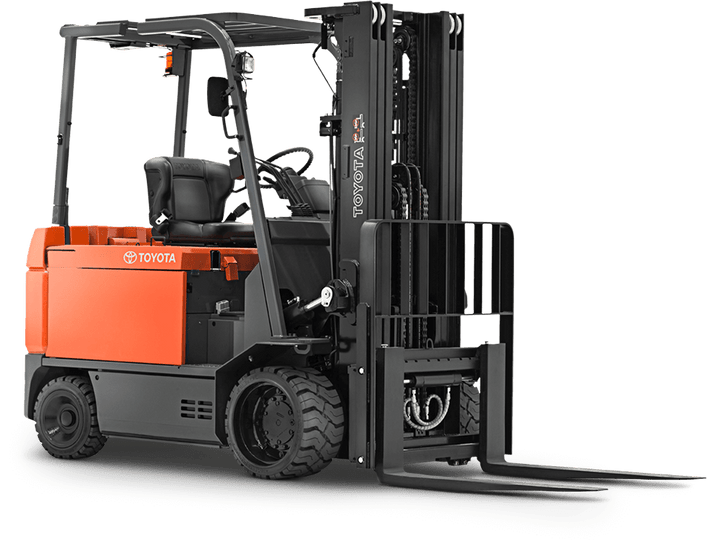

Toyota Large Electric Forklift

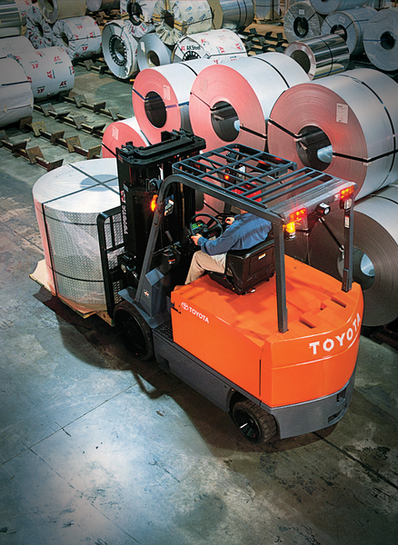

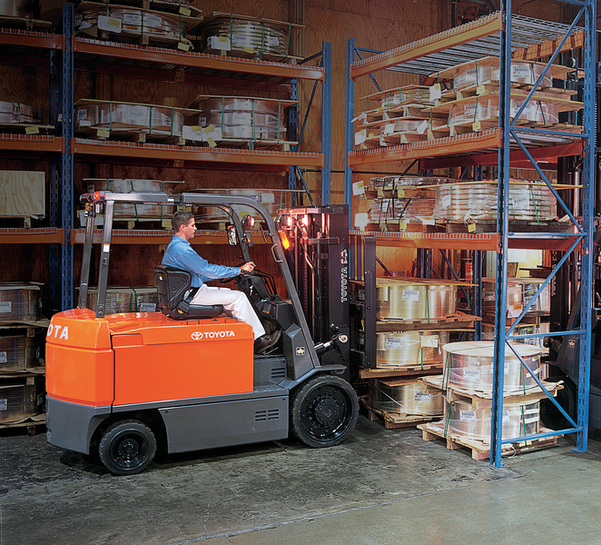

| Toyota Industrial Equipment’s Large Electric Forklift gets the job done, quietly and reliably. With 12,000 pounds of lifting power, its a zero-emissions ride that is perfect for your toughest warehousing challenges, even in the food and beverage industries. It speaks softly and carries a big lift. |
LARGE ELECTRIC FORKLIFT
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Gradeability Full Load (%)
|
Basic Right Angle Stack (in.)
|
|
7BCU35
|
8,000
|
8.4 (36V), 10.9 (48V)
|
16 (36V), 22 (48V)
|
102.6
|
|
7FBCU45
|
10,000
|
7.8 (36V), 10.9 (48V)
|
13 (36V), 18 (48V)
|
106.7
|
|
7FBCU55
|
12,000
|
7.5 (36V), 9.3 (48V)
|
14 (36V), 20 (48V)
|
116.9
|
SAFETY
• System of Active Stability™ (SAS)
- Active control rear stabilizer
- Active mast function controller
• Operator Presence Sensing System (OPSS)
• Key lowering interlock
• Double-action parking brake
• Asbestos-free brakes
• Electric horn
• Manual return to neutral
PERFORMANCE
• AC drive system (MOSFET Transistor)
• UL-approved model type “E”
• Three forms of energy regeneration
- Coast control
- Plug braking
- Foot braking
• Load handling chopper
• Digital multifunction display
- Time & date
- Speedometer
- Multifunction hour meter
- Battery capacity indicator
- Parking brake indicator
- Overdischarge warning (lift interrupt)
- Swing lock cylinder indicator
• Built-in analyzer
• Self-diagnostics
• Power select functions (S.P.H.)
• 3-way hydraulic control valve
• Auto shut-off (after 15 minutes)
• Travel power control (acceleration)
BODY/EXTERIOR DESIGN
• Wide-view 2-stage mast (V)
• Punched plate entry/exit step
• 48" load backrest extension - With angled tie bar
• 54" load backrest extension - With angled tie bar
• Tapered forks
• Cushion tires (treaded)
• Wide-view carriage bars
• Drawbar pin
• Tie-down hooks
• Adjustable front headlights
• ORS vinyl non-suspension seat
• Retractable seatbelt
• 85° wide-opening battery hood
• Overhead guard
• SB 350 battery connector (gray)
• 39.2" battery compartment (8000 – 10000 lbs.)
• 45.7" battery compartment (12000 lbs.)
OPERABILITY & ERGONOMICS
• Strategically configured instrument display
• Hydrostatic power steering
• Dual operator assist grips
• SAS automatic fork-leveling control
• Electric directional shift control
• Memory-tilt steering column
• Two-spoke steering wheel
• Cowl-mounted hydraulic controls
• Heavy-duty non-slip floor mat
• Dash-integrated pen/pencil holder
• Hood-integrated clipboard
• Dash-mounted cup holder
SERVICEABILITY
• AC drive motor (no brushes or commutator)
• Easy-access hydraulic motor
• Bolt-on overhead guard
• Easy-access no tools required floorboard
• Battery compartment hood assist dampers
• Planned maintenance indicator
• Easy-access controller
• Full free-lift 2-stage mast (FV)
• Full free-lift 3-stage mast (FSV)
• Tilt cylinder boots
• Tapered forks1
• Fully tapered & polished forks1
• Fork bar (wide carriage)1
• High load backrest1
• Side hosing termination6
• Less mast & forks6
• Less forks
• Less backrest
LOAD HANDLING (HOSE & VALVE ASSEMBLY)
• 3-way valve (multiple options available)
• Cascade sideshifter6
• 4-way valve (multiple options available)
• Front combination lights
• LED front headlights2
• Rear combination lights
• Rear working light
• LED work light
• Operator compartment light
• Strobe light (multiple options available)
• LED strobe light (multiple options available)
• Adjustable volume back up alarm (smart alarm)
• Back up chime
• Fire extinguisher (including bracket)
• Fire extinguisher 5 lb. upgrade (including bracket)
BODY
• Rearview mirrors (left & right sides)
• Plastic mirrors
• Battery slide-out
• Battery compartment side panels
• Pencil/tape holder
• Keyless ignition
• 12-Volt power supply
• Anti-static strap
• Steering wheel with knob
• ORS semi-suspension seat (multiple options available)
• Vinyl ORS Araco seat (multiple options available)
• ORS 4-way adjustable seat (8 series style, multiple options available)
• Orange seatbelt
• Special paint (one or two color only)
• Cloth 20° swivel seat (requires option code G40C)
• Polycarbonate OHG cover
• Optional battery connector colors (multiple options available)
• Motor brush wear/overheat protection device4
• Seat brake
• EZ Pedal (foot directional control)
• Wide tire & wide tread (front)
• French decals
WHEELS & TIRES
• Treaded, non-marking tires (front & rear)
• Smooth tires (front & rear)
• Smooth, white, non-marking tires (front & rear)
• Smooth, non-marking tires (front & rear)
• UL-approved model - Type “EE” - Type “ES”
• Cold storage model - Type “20S”
• 48-Volt model
