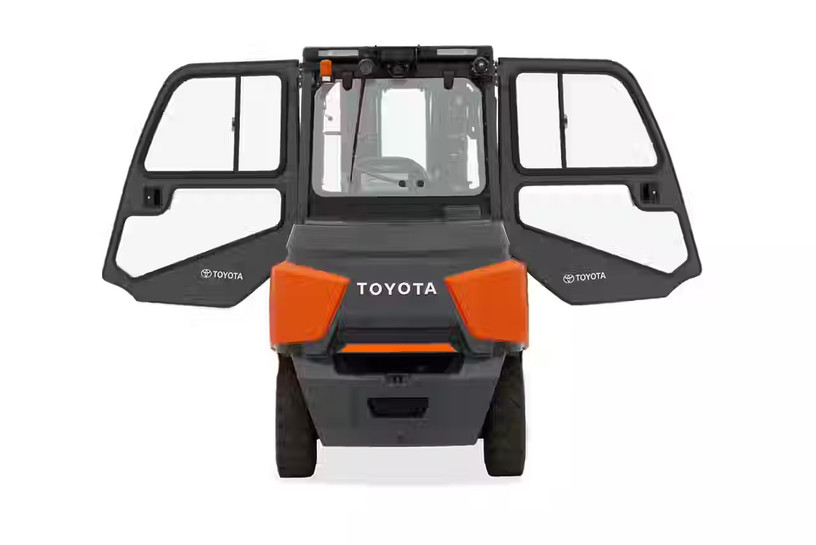

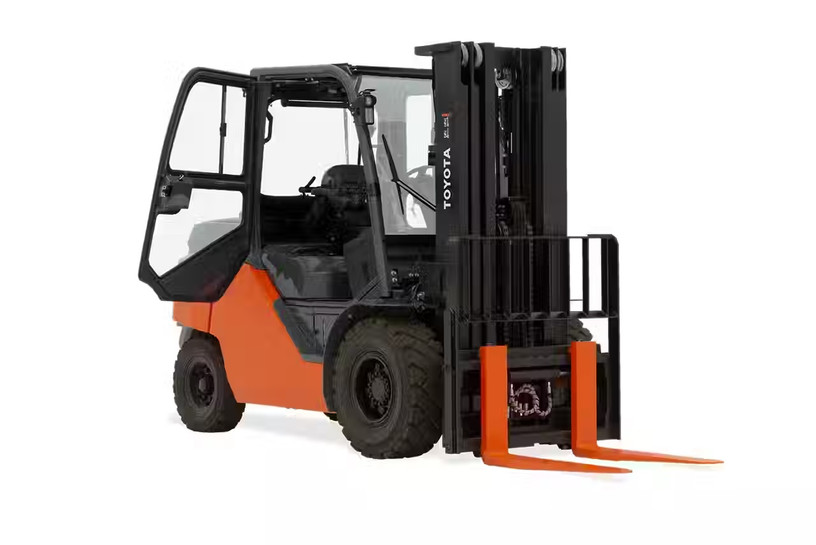

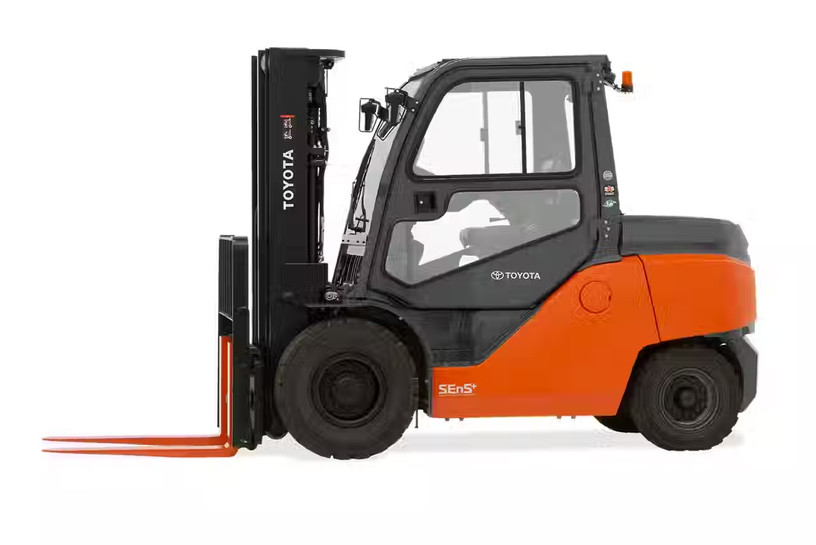

Toyota Integrated Mid Electric Pneumatic Forklift
| Toyota’s Integrated Mid Electric Pneumatic Counterbalance Forklift takes efficiency and performance to a whole new level. With a lifting capacity ranging from 8,000-11,000 lbs., this versatile lift can tackle your toughest handling challenges. The Integrated Mid Electric Pneumatic comes equipped with the power and performance you expect from an internal combustion forklift, but it’s ALL electric. The battery and the forklift were designed as one complete package to optimize operability, ergonomics, and productivity. Get ready to experience greater performance than you ever have before. |
INTEGRATED MID ELECTRIC PNEUMATIC FORKLIFT
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Gradeability Full Load (%)
|
Basic Right Angle Stack (in.)
|
|
9FBZ35U
|
8,000
|
14
|
43
|
124.5
|
|
9FBZ40U
|
9,000
|
14
|
38
|
126.5
|
|
9FBZ45U
|
10,000
|
13.7
|
34
|
132
|
|
9FBZ50U
|
11,000
|
13.7
|
31
|
134.5
|
DURABILITY
- Controller Area Network (CAN-bus communication)
- Fully-stamped steel side panels
- Full floating front axle
- Tested to IPX4 water resistance levels
- Tilt cylinder boots
- Plate iron front fenders
- Anti-restart key switch
- Stamped steel hood
- 2-stage limited free lift mast (V)
- Force-cooled wet disc brakes
- Fully oil charged lift cylinder
- Protected Battery Charging Connector
SAFETY
- System of Active StabilityTM (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key lowering interlock
- Electric horn
- Automatic parking brake
- Asbestos free components
- Orange forks
- Speed control
- LED Headlights
- Key Off/Headlight Off System
PERFORMANCE
- Integrated Lithium-Ion battery
- 90 Volt electrical system
- AC drive system
- AC lift system
- AC steering
- Electronic hydraulic controls
- Programmable hydraulics
- U.L Approved Model Type E
- Three forms of energy regeneration – Coast control – Plug braking – Foot braking
- 3-way hydraulic control valve
- Auto-off system (programmable)
- Power select functions (E.S.P.H)
- Power Keep function
- Treaded pneumatic tires (front & rear)
ERGONOMICS
- Dash mounted instrument display
- 11.8” diameter two-spoke steering wheel
- Load sensing power steering
- Seat-mounted Mini-lever Hydraulic Controls
- 12” long dual operator assist grips
- Low, wide entry steps
- Dash integrated amenity tray and oversized cup holder
- Premium, full-suspension vinyl seat
- Non-cinching seatbelt
- Integrated head light and turn signal lever
- One-way automatic fork leveling
- Poly-Clear Canopy
DISPLAY FEATURES
- LCD Color Multi-Function Display:
- Data log function with QR Code output
- Calendar– Date/Time
- Master warning indicator
- Wheel indicator
- Direction indicator
- Mast tilt indicator
- Rental hour meter
- Lap time meter
- Traveling hour meter
- Load handling hour meter
- Travel/load handling hour meter
- Seat on hour meter
- Operation data log with QR code
- Digital hour meter display
- Battery charge level display
- Parking brake indicator
- SAS/OPSS warning light
- Load weight display (Not for trade)
SERVICEABILITY
- Easy access, no-tools floorboard
- Hood assist damper with lock device
- Easy lift hood with wide 75 degree opening
- Easy access to common service items
- Self-diagnostics
- Built-in analyzer
Model:Integrated Mid Electric Pneumatic Forklift, Tire Type: Pneumatic
Featured Attribute:Electric, Power/ Fuel Type:Electric / Integrated Lithium Ion, Electrical System Voltage: 88.8
