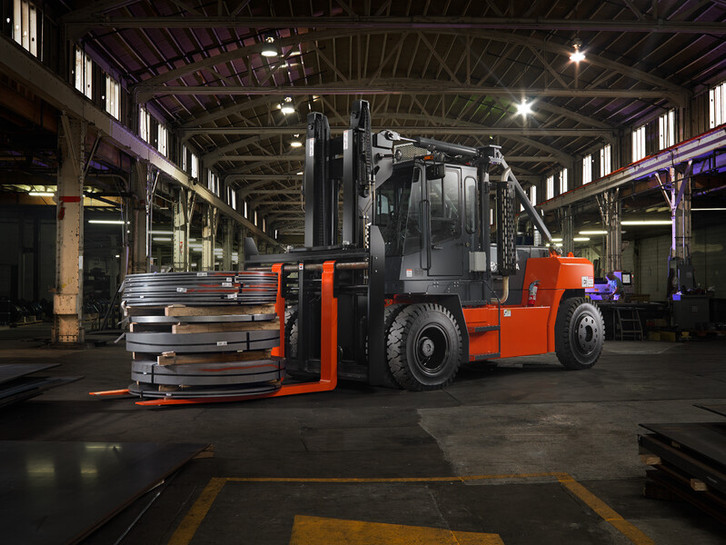

Toyota High-Capacity IC Pneumatic Forklift
| Toyota Industrial Equipment’s High-Capacity IC Pneumatic Forklift is the largest forklift in Toyota Industrial Equipment’s product line. With a lifting capacity to handle heavy loads up to 125,000 lbs., this large, rugged diesel forklift can handle almost any heavy load. Commonly found loading and unloading large shipping containers or on the construction site, the High-Capacity IC Pneumatic Forklift provides lifting solutions for extremely heavy industrial applications. Every forklift in the Toyota Industrial Equipment THD line comes equipped with an MD4 7” Touchscreen Display. It combines the rugged power of the THD model lineup with the latest advancements in heavy-duty forklift technology to put ultimate customization, advanced diagnostics, and pertinent forklift information right at your fingertips. |
HIGH-CAPACITY IC PNEUMATIC FORKLIFT
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed No Load (MPH)
|
Max Gradeability Full Load (%)
|
Basic Right Angle Stack (in.)
|
|
THD10000-48
|
100,000
|
20
|
11.7
|
364
|
|
THD11000-48
|
110,000
|
20
|
10.9
|
364
|
|
THD12000-48
|
120,000
|
20
|
10.1
|
441
|
|
THD12500-48
|
125,000
|
20
|
9.9
|
441.13
|
|
THD3000-24
|
30,000
|
23
|
24
|
203.2
|
|
THD3300-24
|
33,000
|
23
|
24
|
227
|
|
THD3300S-24
|
33,000
|
23
|
23
|
203.2
|
|
THD3600-24
|
36,000
|
23
|
22
|
237
|
|
THD3600-36
|
36,000
|
23
|
20
|
242
|
|
THD3600-48
|
36,000
|
23
|
19
|
242
|
|
THD3600S-24
|
36,000
|
23
|
21
|
206
|
|
THD3600S-36
|
36,000
|
23
|
19
|
206.5
|
|
THD4000-48
|
40,000
|
23
|
18
|
252
|
|
THD4500-48
|
45,000
|
24.9
|
19
|
305
|
|
THD4500S-48
|
45,000
|
24.9
|
18
|
276.3
|
|
THD5000-48
|
50,000
|
24.9
|
17
|
305
|
|
THD5200-48
|
52,000
|
24.9
|
17
|
305
|
|
THD5500-48
|
55,000
|
24.9
|
16
|
305
|
|
THD6000-48
|
60,000
|
21.1
|
18
|
315
|
|
THD6500-48
|
65,000
|
21.1
|
17
|
315
|
|
THD7000-48
|
70,000
|
21.1
|
14
|
315
|
|
THD7200-48
|
72,000
|
21.1
|
14
|
315
|
|
THD8000-48
|
80,000
|
19.2
|
17
|
355.5
|
|
THD8000S-48
|
80,000
|
19.2
|
16.2
|
319.3
|
|
THD9250-48
|
92,500
|
20
|
12.7
|
355.5
|
|
THD9250S-48
|
92,500
|
20
|
12.1
|
327.8
|
- Wet disc brakes with dedicated oil cooling system
- Engine protection system
- Wide view steel cabin
- 7″ Touch Screen Multi-function display
- Fingertip Hydraulic Controls
- Standard Air Ride Seat
- Standard LED Head Lights and Rear Work Lights
Model:THD12500-48, Tire Type: Pneumatic
Featured Attribute:High-Capacity, Power/ Fuel Type:Diesel, Horsepower (hp):164 - 380
