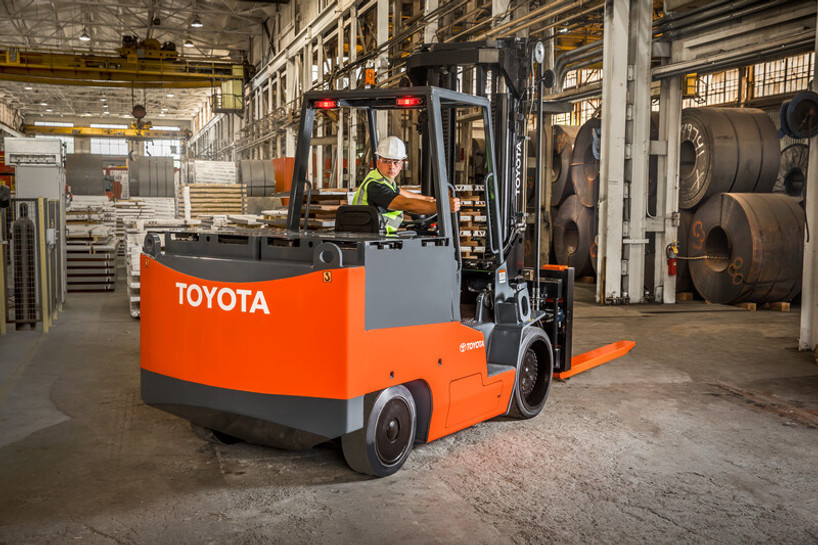

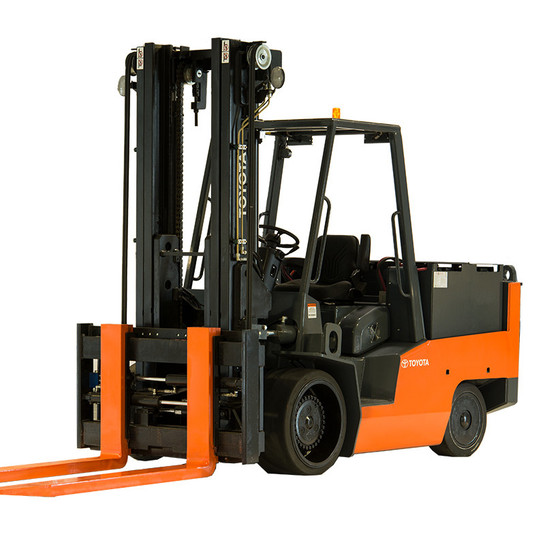

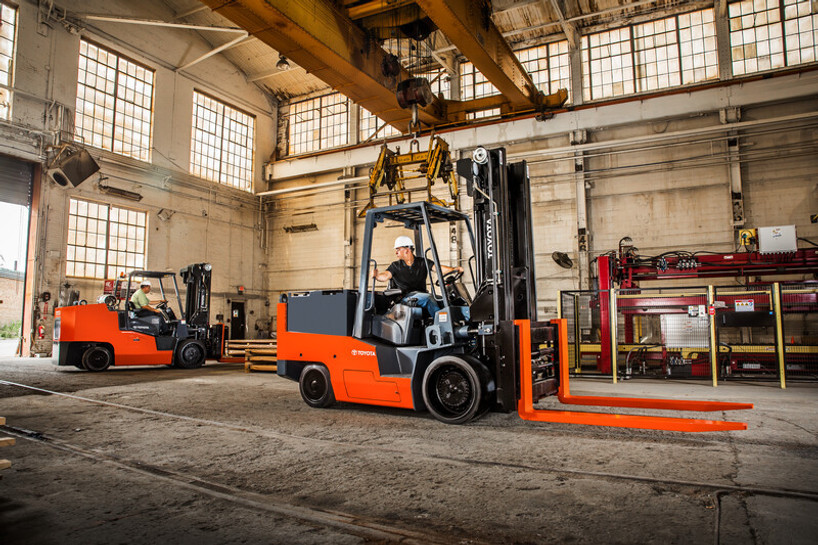

Toyota High-Capacity Electric Cushion Forklift
| The Toyota Industrial Equipment High-Capacity Electric Cushion Forklift gives you the versatility to lift massive loads without the need of traditional IC engines. The versatile electric power and high visibility combined with a large 92-inch wheelbase means you’ll have the power you want and the maneuverability you need for your heaviest indoor duties. |
HIGH-CAPACITY ELECTRIC CUSHION FORKLIFT
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Gradeability Full Load (%)
|
Basic Right Angle Stack (in.)
|
|
THDE1500-24
|
15,000
|
5.2
|
15
|
134
|
|
THDE1800-24
|
18,000
|
5
|
22.5
|
139.2
|
|
THDE2000-24
|
20,000
|
4.7
|
19.9
|
140
|
|
THDE2200-24
|
22,000
|
4.6
|
18.7
|
140
|
|
THDE3000-24
|
30,000
|
4.1
|
13.1
|
153.8
|
|
THDE3000-30
|
30,000
|
4.1
|
12.5
|
156.35
|
|
THDE3500-24
|
35,000
|
4
|
12
|
156.3
|
|
THDE3500-30
|
35,000
|
3.9
|
10.8
|
173.5
|
|
THDE4000-24
|
40,000
|
3.7
|
10.6
|
173.5
|
|
THDE4000-30
|
40,000
|
3.7
|
9.9
|
173.5
|
DURABILITY
- Heavy duty planetary drive axle provides extended service life and reduced maintenance
- Heavy duty mast rails provide superior capacity retention
- Large drum-type brakes
- High visibility carriage with integral side thrust rollers
- 72/80 volt electrical system
- 2 stage wide visible mast (V)
- Rigidly constructed, welded frame
- Hook-type forks
SAFETY
- Electrical horn
- Bolt-on overhead guard
- Operator Restraint System seat
- Orange forks
- Operator Presence Sensing System (OPSS)
PERFORMANCE
- Drive and pump motors digitally controlled by AC inverter with regen braking and
- CANBUS interface
- Load sensing, on-demand hydraulic system
- 2-function hydraulic control valve (lift/tilt)
- Full hydraulic power steering
- Tilt lock valve only allows the tilt function to operate when the truck is running
- Flow limiters in the cylinders provide controlled lowering in the event of sudden
- loss of pressure
- Dual brake pedals
- Integrated multifunction display
- Hour meter display
- Battery discharge indicator
- Controller fault codes
ERGONOMICS
- Mast mounted LED Headlights (2)
- LED rear combination lights (2)
- Fully sealed headlights and auxiliary lights
- Fingertip hydraulic controls
- Tilt steering column
- Hood mounted clipboard and cup holder
- Left-hand shift lever
- Long operator assist grips
- Vinyl adjustable semi-suspension seat
- Hand actuated disc type parking brake
- Low-height non-skid steps
- Padded floor cover
- Rubber mounted cab, isolated from frame to reduce noise and vibration
- 12V power inverter
SERVICEABILITY
- Hydraulic pump, hoses, tubes, and wiring harness are accessible and easy to inspect
- Easy access pump motor
- Easy access filters
- Hydraulic multi-gauge
- Wire harness loom
- Flip-open hood
- Drive motor easily accessible through removal of 4 bolts in the floor plate
- Hinged side door panel provides easy access to components
MASTS
- Wide Visible Mast (V)
- Full-Free Lift Two-Stage Mast (FV)
- Full-Free Lift Three-Stage Mast (FSV)
TIRE
- Poly Drive Tires
- Grooved Poly Drive Tires
CHASSIS OPTIONS
- Bellypan
- Anti-Static Straps
CARRIAGE
- Carriage Bumper Blocks
- Class IV Carriage
- Class V Carriage
- Pin-Type Carriage
- Integral Side Shifting Fork Positioner
- Hang-on Fork Positioner
- Hang-on Side Shifting Fork Positioner
- Hang-on Sideshifter, Class IV
- Hang-on Sideshifter, Class V
- Tilt Control (Forward)
- Tilt Control (Rearward)
- Tilt Control (Forward & Rearward)
- Tilt Level Indicator
- Forks (Standard Taper)
- Coil Contour Forks
- Polypad, Forks
CABIN/OVERHEAD GUARD
- Operator Compartment Fan
- Lexan, Front
- Lexan, Top
- Cloth Semi-Suspension Seat
- Air Ride Seat
- Orange Seatbelt
- Steering Wheel w/ Knob
BATTERY
- Battery Compartment, Top Cover
- Battery Compartment, Lock Bars
- Battery Compartment, Sliding Door
- Battery Compartment, Slides
- Battery Compartment, Roller Plate
- Battery Compartment, Tray
- Battery Connector, SB Blue
- Battery Connector, SB Green
- Battery Connector, SBX Gray
- Battery Connector, SBX Blue
- Battery Connector, SBX Green
- Battery Connector, Euro
- Battery Discharge Indicator/Hour meter w/Interrupt
LIGHTS/ALARMS
- Amber Strobe Light
- Blue Strobe Light
- Red Strobe Light
- Clear Strobe Light
- Amber Strobe Light (Additional)
- Blue Strobe Light (Additional)
- Red Strobe Light (Additional)
- Clear Strobe Light (Additional)
- Strobe Light Guard
- Forward Facing Blue Light*
- Rear Facing Blue Light*
- Forward & Rear Facing Blue Light*
- Forward Facing Red Light*
- Rear Facing Red Light*
- Forward & Rear Facing Red Light*
- Side Mount ‘Red Zone’ Pedestrian Light
- Turn Signal Light Kit
- Single Forward Facing LED Worklight (Additional)
- Single Rear Facing LED Worklight
- Extra Work Lights- LED Forward Facing (pair)
- Extra Work Lights- LED Rearward Facing (pair)
HYDRAULIC
- Low Nitrogen Warning System,
- Steer/Brake Accumulator
- Lift Accumulator • Tilt Accumulator
INDICATORS & MISC.
- Rear Pillar Assist Grip w/ Horn Button
- Forward Camera System Visibility Aid
- Rear Camera System Visibility Aid
- Dual Camera System Visibility Aid
- Overload Warning System
- 5 lb. Fire Extinguisher
- Back-up alarm
Model:THDE4000-30, Tire Type: Cushion
Featured Attribute:High-Capacity, Power/ Fuel Type:Battery, Electrical System Voltage: 36
