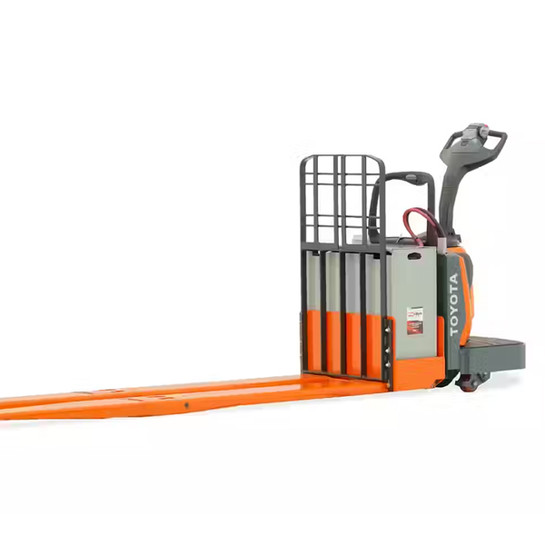

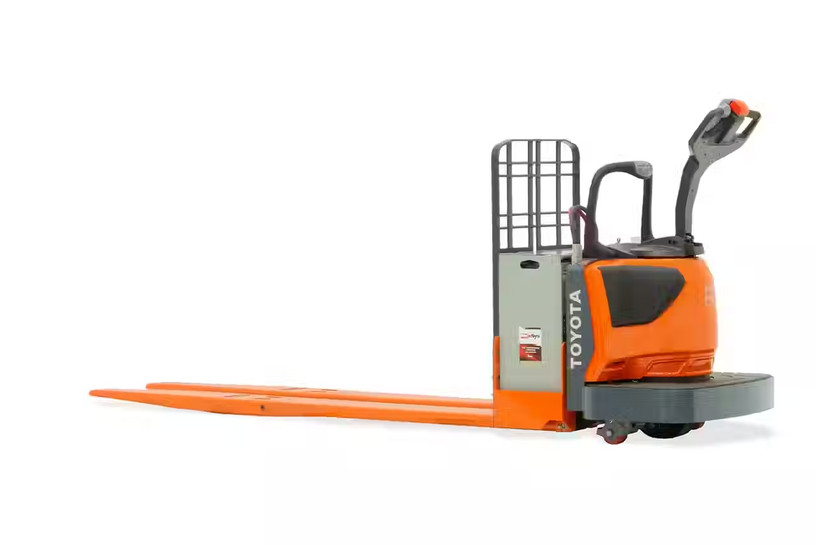

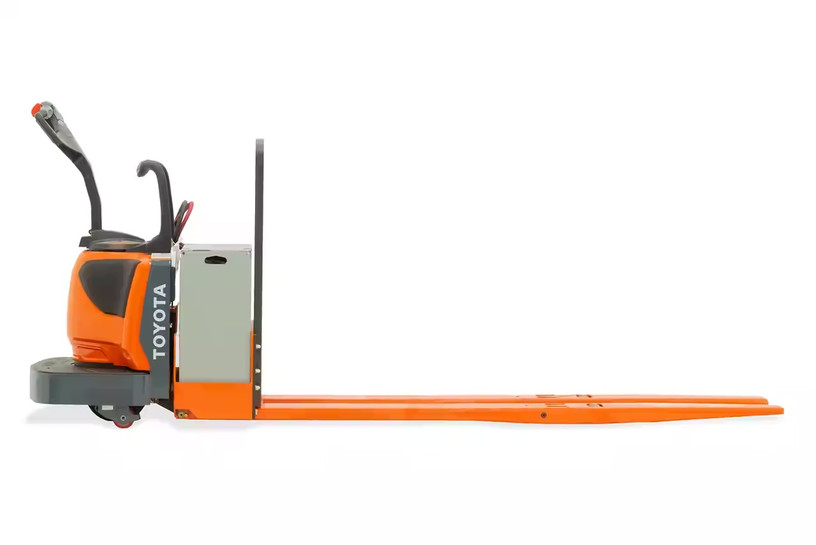

Toyota End-Controlled Rider Pallet Jack
| The Toyota End-Controlled Rider Pallet Jack is responsive and easy to maneuver. The End-Controlled Rider, ideal for longer runs, helps you move products efficiently throughout your warehouse. Doubling as a ground-level order picker, the End-Controlled Rider Pallet Jack is an asset to any warehouse or distribution center. |
END CONTROLLED RIDER PALLET JACK
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Gradeability Full Load (%)
|
Basic Right Angle Stack (in.)
|
|
8HBE30
|
6,000 on level surfaces
|
6.5
|
10
|
85.4
|
|
8HBE40
|
8,000 on level surfaces
|
6.2
|
10
|
129.3
|
PERFORMANCE
- AC drive motor with thermal protection & current limiting
- 24-Volt electrical system
- 6" lift
- Hour meter reading
- Regenerative plugging
- Programmable performance
- Adjustable maximum speed
- Adjustable acceleration
- On/off key switch
- Lift limit switch
- Multiple hour meter indicator
- Battery discharge indicator with lift interrupt
- Fused control & power circuits
- Hydraulic overload protection valve
- Dual 1.25"-dia. lift cylinders
- Drive-thru freezer curtain feature
- Polyurethane torsion block stabilizing casters
- Heavy-duty spring-loaded stabilizing casters
BODY/EXTERIOR DESIGN
- 31.5"-long x 13.44"-wide battery compartment
- SB-175 battery connector (gray)
- Top Adjust Caster Wheels
ERGONOMICS
- Multifunction control handle with ergonomically angled handgrips & wrap-around hand guard
- Soft-cushioned rider platform
- Low platform step height
- Dual thumbwheels with twist grips for directional control & travel speed
- Intuitively positioned lift/lower buttons
- Curvilinear handrail with push buttons for lift, lower, horn & high-speed functions
- Low-effort control handle
- High-speed interlock button
- Knee pad
DURABILITY
- Control Area Network (CAN-bus) communications
- Welded construction with reinforced heavy-duty bumper
- Powder coat paint finish
- Box rail fork construction
- Steel gussets reinforced rider platform
- Steel bulkhead wrappers
- Forged rectangular steel tension rods
- Heavy-duty bushings & pins
- Solid trail fork casting
- Tapered fork tips with pallet entry slides
- Four-point lift linkage
- High-strength polymer service cover
- Rubber drive tire
- Hall-effect switches
- Fork Height Travel Interlock
SERVICEABILITY
- AC drive motor (no brushes or commutator)
- One-piece, lightweight service access cover
- Error indicator with self-diagnostics
- Self-adjusting electric disc brake
- Teflon®-coated Polylube™ lift linkage bushings (maintenance free)
Model:End-Controlled Rider Pallet Jack, Wheel Type: Rubber / Polyurethane
Fuel Type: Battery, Electrical System Voltage: 24V
