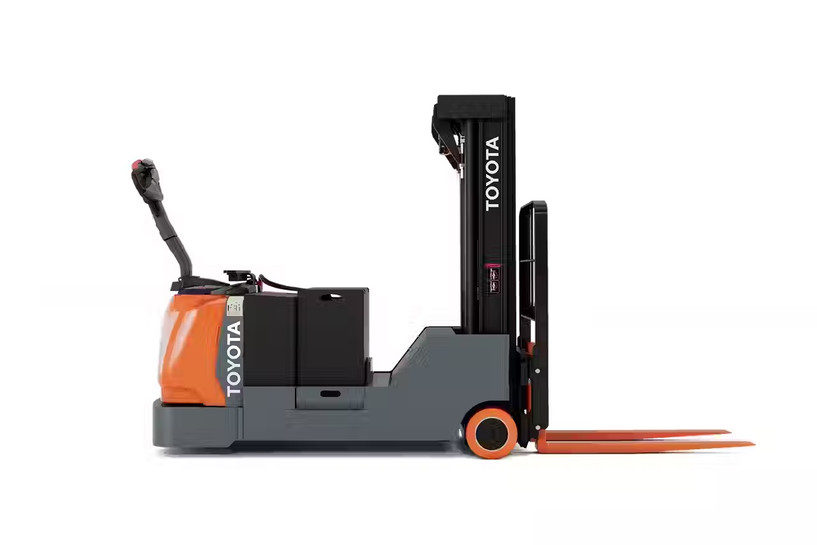

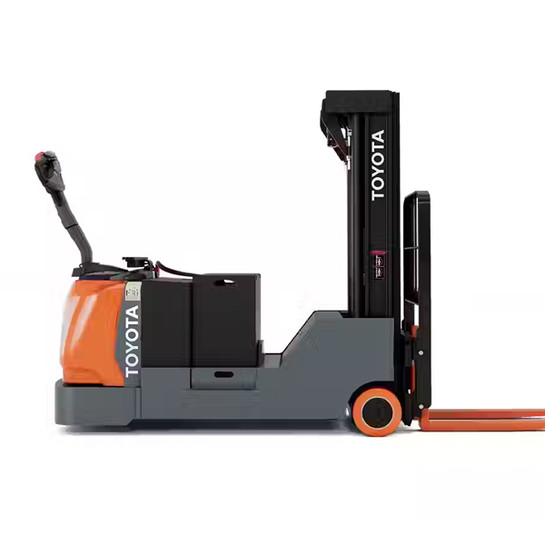

Toyota Counter-Balanced Stacker
| Toyota’s Counter-Balanced Electric Pallet Stacker is a nimble, highly-versatile lift that complements nearly any primarily indoor application. Balanced similar to a traditional forklift and without baselegs, the Counter-Balanced Electric Stacker can fit into tight spaces. Extraordinarily durable and budget-friendly, the Toyota Counter-Balanced Stacker can help increase both your uptime and your bottom line. |
COUNTER-BALANCED STACKER
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Lift Height (in)
|
Basic Right Angle Stack (in.)
|
|
WS1-CB20
|
2,000
|
3.5
|
150
|
91
|
|
WS1-CB30
|
3,000
|
3.5
|
189
|
96
|
|
WS1-CB40
|
4,000
|
3.5
|
189
|
102
|
PERFORMANCE
- 24 Volt Electrical System
- SB-175 Red Connector
- On/Off Key Switch
- UL Type-E Constructed
- Electric Raise And Lower Controls In Operator Handle
- AC Drive Motor
- Cushioned Mast Stops
BODY/EXTERIOR DESIGN
- Electric Horn
- 30 Inch Wide ITA Class II Hook Type Carriage
- 42 Inch Long Pallet Forks
- 48 Inch High Load Back Rest Extension
- Rubber Drive Tire
- Polyurethane Load Wheels 10” x 4”
- Battery Compartment: 32.13” x 13.44” x Open Height (Steel-to-Steel)
- Easy Access Service Cover
- Fixed Baselegs
OPERABILITY & ERGONOMICS
- Emergency Power Disconnect Switch
- Battery Discharge Indicator w/ Lift Interrupt and Hour Meter
- Regenerative Plugging
- Ergonomically Advanced Control Handle
- Dual Thumb Wheel Control Forward and Reverse
- Direction and Travel Speed
- Power On Self Test
Model:Counter-Balanced Stacker, Tire Type: Rubber / Polyurethane
Featured Attribute:Electric, Power/ Fuel Type:Battery, Electrical System Voltage: 24V
