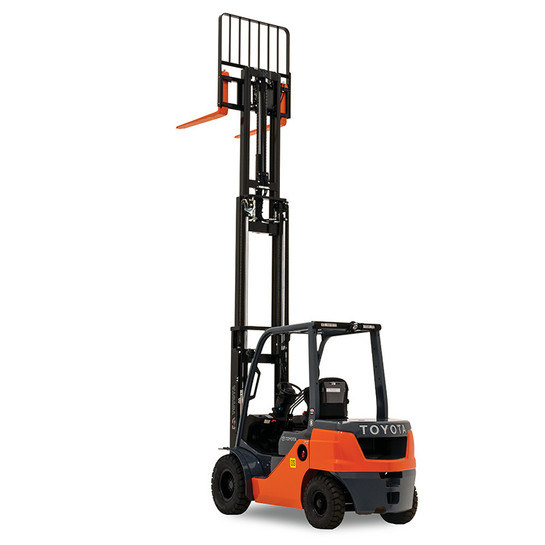

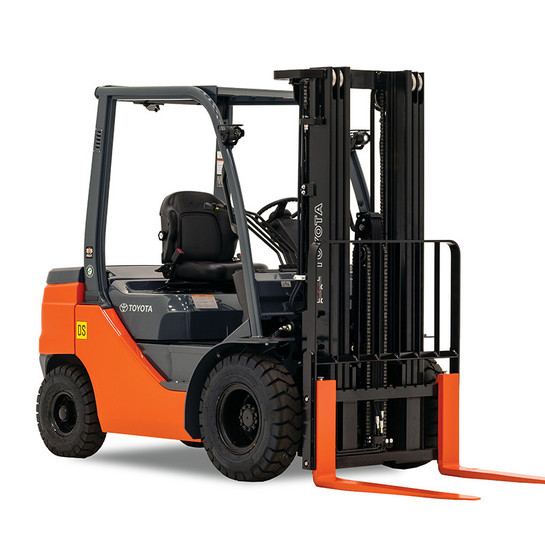

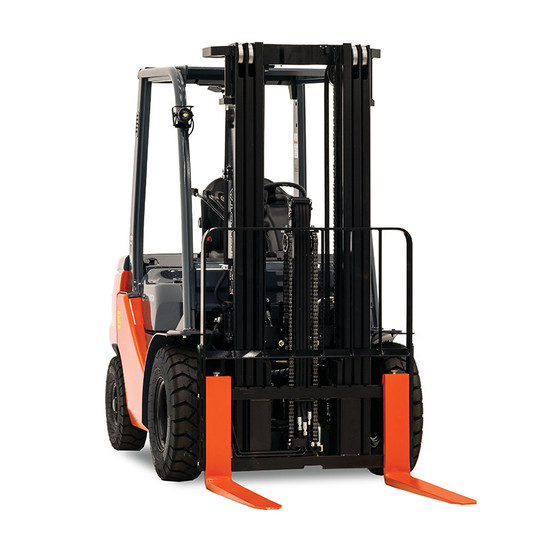

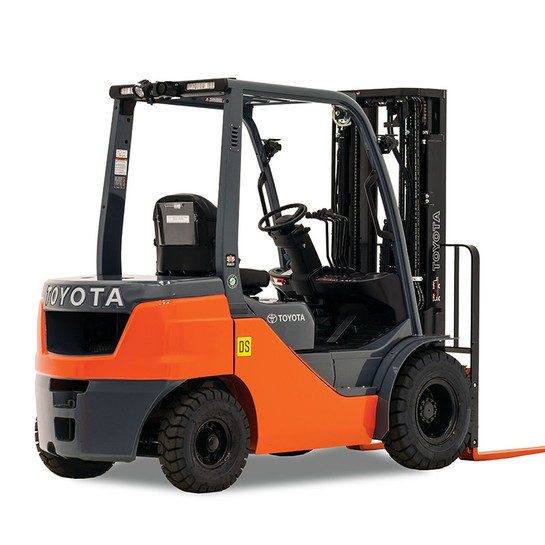

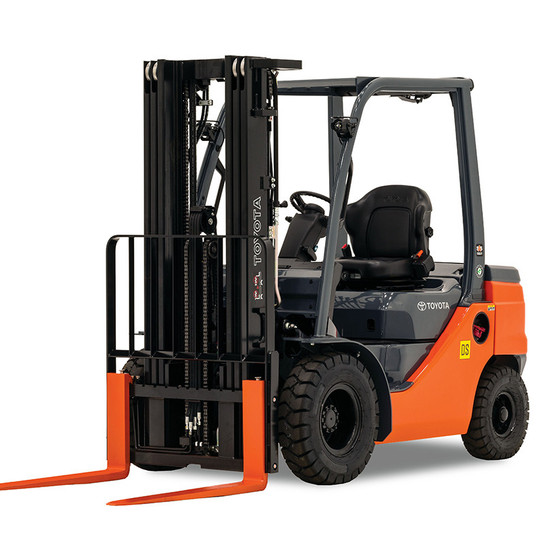

Toyota Core IC Pneumatic Forklift
| Wildly durable and engineered with ergonomics in mind, the Core IC Pneumatic forklift can maneuver almost anything. With a lift capacity range of 3,000-6,500 lbs., the Toyota Industrial Equipment Core IC Pneumatic forklift is the premier material handling solution for most outdoor applications. |
CORE IC PNEUMATIC FORKLIFT
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Gradeability Full Load (%)
|
Length (in.)
|
|
40-8FGU15
|
3,000
|
11.5
|
45
|
92.1
|
|
50-8FGU15
|
3,000
|
11.5
|
45
|
92.1
|
|
40-8FGU18
|
3,500
|
11.5
|
45
|
93.9
|
|
50-8FGU18
|
3,500
|
11.5
|
45
|
93.9
|
|
40-8FGU20
|
4,000
|
10.9
|
37/39
|
103.2
|
|
50-8FGU20
|
4,000
|
10.9
|
39
|
103.2
|
|
40-8FGU25
|
5,000
|
10.9
|
31/33
|
105.9
|
|
50-8FGU25
|
5,000
|
10.9
|
33
|
105.9
|
|
40-8FGU30
|
6,000
|
11.2
|
25/26
|
111.6
|
|
50-8FGU30
|
6,000
|
11.2
|
25
|
111.6
|
|
40-8FGU32
|
6,500
|
11.2
|
25/26
|
112.4
|
|
50-8FGU32
|
6,500
|
11.2
|
24
|
112.4
|
- Control Area Network (CAN-bus) communication
- Limited free-lift 2-stage mast (V)
- Fully stamped steel side panels
- Moisture-resistant electric connectors
- Tilt cylinder boots
- High cooling capacity radiator with fan shroud
- Low-maintenance battery
- Large-capacity engine-cooling fan
- 7" cyclone air cleaner with high positioned external air intake
- Plate-iron front fenders
- Anti-restart ignition key switch
- Stamped steel engine hood
- Fully sealed air intake system
- Self-adjusting brakes
- Rear wheel well covers
- Scratch zones on both sides of counterweight
SUPPORT
- System of Active Stability™ (SAS)
- Operator Presence Sensing System (OPSS)
- Speed control
- Bolt-on overhead guard
- Key lowering interlock
- High-durability electric horn
- LED headlights
- Neutral start safety switch
- Asbestos-free components
- Single touch maximum speed limitation & low speed setting
- Key off/headlight off system
PERFORMANCE
- UL "LP" engine
- Toyota Industrial Equipment 4Y-ECS 2.2 liter, 4-cylinder, OHV LP engine
- EPA/CARB certified LP engine with 3-way catalytic muffler system
- Distributor Less Ignition (DLI)
- Alternator with built-in regulator
- Automatic transmission with oil cooler
- Full-floating powertrain
- Electric shift control
- UL "D" diesel engine
- Toyota Industrial Equipment 1ZS Toyota Industrial Equipment Direct injection
- 4-stroke common rail diesel engine
- EPA/CARB TIER 4 Final certified diesel engine with exhaust gas recirculation & diesel oxidation catalyst
- LCD multi-function display – includes:
- Data log, fuel, and operation information with QR code output
- Master warning, wheel, direction, and mast tilt indicators
- Various hours meters
- Engine coolant temperature gauge
- Fuel gauge (excluding LP)
- Check engine light
- Engine oil pressure warning light
- OPSS activation light
- Parking brake indicator
- SAS/OPSS warning light
ERGONOMICS/CABIN
- Dash-mounted instrument display
- 11.8"-dia., two-spoke steering wheel
- Load-sensing hydrostatic power steering
- Heavy-duty non-slip rubber floor mat
- 12"-long dual operator assist grips
- One-way automatic fork leveling
- Integrated headlight & turn signal lever
- Cowl-mounted hydraulic control levers with rubber boot covers
- Low, wide-entry steps
- Non-cinching seatbelt
- Independent brake & inching pedals
- Dash-integrated amenity tray
- Oversized cup holder
- Vinyl 4-way adjustable full-suspension seat
- Slim profile, tilt steering column
- Foot-activated parking brake
- Travel speed/acceleration control system
- Hydraulic accumulator
- Intelli-Shift
- Orange seatbelt
- Rear assist grip with horn button
- Rustproof spec
- Mini-lever controls with ErgoShift
- Joystick controls with ErgoShift
- Swivel seat
- Synchronized steering
- LED front combination lights
- LED rear combination lights
- Deluxe steel cab
- Polycarbonate cab
- Standard steel cab
- 12-Volt power supply
- EZ Pedal (foot directional control)
- Plate fin radiator
- Radiator screen
- Fire extinguisher
- Steering wheel with knob
- Polished and tapered forks
- Integral & hang-on sideshifters
- Integral side shifting fork positioner
- Bottler’s tilt
- LPG low-fuel warning light & alarm
- High-capacity 70-amp alternator (4Y-ECS models)
- Strobe lights
- Step-mounted toolbox with cover
- Cloth 4-way adjustable full-suspension seat
- Back up alarms
- Combination brake & inching pedal
- Pre-cleaner for air intake
- Rearview mirrors
- Wide tread tires
- UL “DS” diesel model
- 4Y-ECS high-power engine
- Fuel system configurations with swing-out tank bracket & one-touch latch system
- UL-LP
- UL-LPS
- UL-LPG dual fuel
- Swing-down LPG tank bracket
- Reverse-activated blue light
- Seatbelt interlock
Model:8FGU32, Tire Type: Pneumatic
Featured Attribute:N/A, Power/ Fuel Type:Gas Propane, Electrical System Voltage: 12
