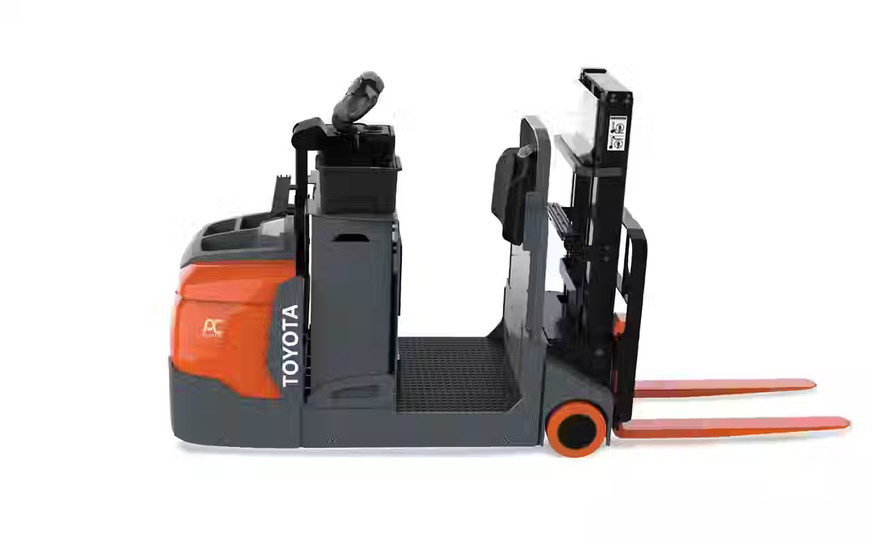

Toyota Center Rider Stacker
| Low-level picking. Dock work. Narrow-aisle stacking. The Center Rider Stacker handles all of these and more. The versatile design enables it to perform the work of a center rider, order picker, and counterbalanced forklift – all in one. This delivers the ultimate utility and value in operations where it can replace some or all existing equipment. |
CENTER RIDER STACKER
|
Model
|
Load Capacity (lbs.)
|
Max Travel Speed Full Load (MPH)
|
Max Lift Height (in)
|
Max Lift Speed - Full (FPM)
|
|
CR1-RS25
|
2,500
|
6
|
72
|
22
|
PERFORMANCE
- 24 Volt Electrical System
- AC Drive Motor
- Regenerative Plugging
- Battery Discharge Indicator with Lift Interrupt
- Hour Meter Indicator
- Electric Disc Brake
- Dual Lift Cylinders
- Power Steering
BODY/EXTERIOR DESIGN
- Special Bumper
- Poly Load Wheels
- Natural Rubber Drive Tire
- 40-inch Load Backrest
- Emergency Power Disconnect
- Battery Compartment - 31.68 in. wide - 13.4 in. length - 31.0 in. height
ERGONOMICS
- Multifunction control handle with ergonomically angled handgrips & wrap-around hand guard
- Dual thumbwheels with twist grips for directional control & travel speed
- Intuitively positioned lift/lower buttons
- High-speed interlock button
- Bubble-cushioned operator floor mat, padded backrest & knee pad
- Walk-through operator compartment
- Low platform step height
- Low effort power steering handle with adjustable height
OPERABILITY & ERGONOMICS
- Cushioned Knee Pad
- Cushioned Operator Backrest with Controls
- Lift Limit
- Directional Thumb Wheels
- Power Steer Control Handle with Ergonomically Angled Hand Grips
- Soft-cushioned Floor Mat
- Programmable Fork Height Travel Speed Limit
- Electronic Travel Alarm
Model:Center Rider Stacker, Tire Type: Rubber / Polyurethane
Featured Attribute:Electric, Power/ Fuel Type:Battery, Electrical System Voltage: 24V
