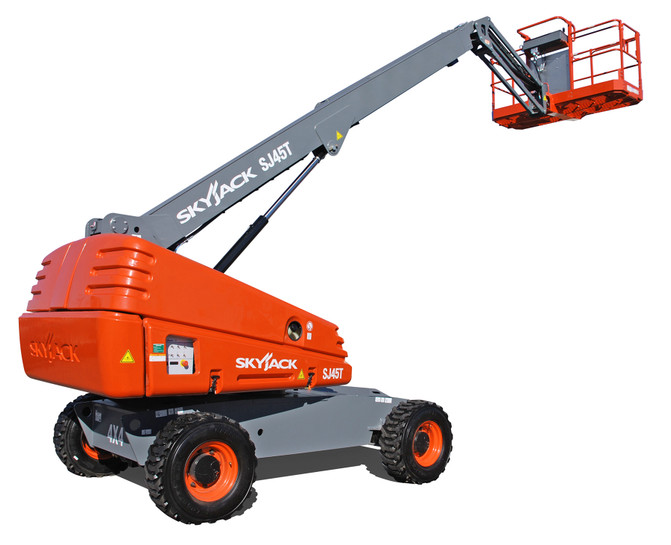

Skyjack Telescopic Boom Lift (45' - 50') SJ45 T+
| Our new 40ft and 60ft booms have been redesigned to improve customer return by using SMARTORQUE™ technology and data-driven design. SMARTORQUE™ utilizes optimized gearing, and a simplified, high-efficiency hydraulics package, so these models can employ 25hp engines to deliver similar on-site job performance as higher powered units. With these changes, rental companies can quickly improve their return on investment. |
- EASYDRIVE™ Direction sensing drive and steer controls
- AXLDRIVE™ Axle-based 4WD system
- Operator controlled locking rear differential and limited slip front differential
- Oscillating steer axle
- Drivable at full height
- 40% Gradeability
- Wet disc SAHR brakes (rear axle)
- Dual module control system with SKYCODED™ color coded and numbered wiring
- Kubota D1305 Tier 4F diesel engine
- Swing up cowlings for easy access
- Lockable power disconnect switch
- Proportional controls
- Up to 750 / 1,000 lbs Dual capacity
- 36” x 96” Platform
- Bolt-in platform railing system
- Lanyard attachment points
- Tri-entry sliding mid rails
- Secondary Guarding Electrical (SGE)
- Overload sensing system
- 110V AC Outlet on platform with GFI
- Tilt alarm (5.0° x 5.0°) with drive and lift cut-out
- Single point emergency lowering
- Hourmeter
- Operator horn
- All motion alarm
- 360° Continuous turret rotation
- Tie down/lifting lugs
- Grip lug solid tires
- Telematics ready
- 2 Year Gold Leaf Warranty (5 year structural warranty)
- Flashing light
- 36 x 72” Platform
- Side spring hinged entry gate
- Auxiliary top rail (36 x 96” platform only)
- 3.5 kW generator
- Welder ready package (Includes 7.5 kW generator, 3-phase power connection in platform, and welder mount)
- Welder package (Includes 7.5 kW generator, 3-phase power connection in platform, welder mount, and Lincoln V275-S welder)
- Cold weather start kit*
- *Recommended for regions where average monthly low temperatures can reach 14°F / -10°C (Includes cold start engine oil, battery blanket, and hydraulic tank heater)
- Arctic weather package*
- *Recommended for regions where average monthly low temperatures can reach -0.4°F / -18°C (Includes arctic engine oil, battery blanket, hydraulic tank heater, block heater, arctic hydraulic oil, and arctic gear oil in the axles and swing drive. Glow plugs, arctic hydraulic hoses (all), arctic platform rotator and oversized foot switch cover are also included (standardequipment).)
- Control box cover
- Diesel scrubber for tier 4 final engine
- Positive air shut-off valve (diesel only)
- Bio oil
- Non destructive testing
- Grip lug foam-filled tires (SJ45 T+ only)
- Grip lug foam-filled non-marking tires (SJ45 T+ only)
- Grip lug solid non-marking tires
- ELEVATE telematics
Model:SJ45 T+, Work Height (in.): 51’ 1.5”
Featured Attribute:Telescopic, Fuel Type:Diesel, Raised Platform Height (ft.): 45’ 1.5”, Lowered Platform Height (ft.):7' 10.5", Overall Width (in.):7' 6”, Overall Length (in.):28’ 11.5”, Platform Capacity at Lift Height (lb) (in.) : 660 / 1,000 lbsl, Platform Lift Time (sec):N/A, Platform Lower Time (sec): N/A, Ground Clearance (Collapsed) (in.): 10.75”, Ground Clearance (Lifted) (in.):N/A, Wheelbase (in.):8', Max Travel Speed (Lowered) (mph):2.5, Max Travel Speed (Lifted) (mph): N/A, Max Gradeability (%):41, Turn Radius Inside (deg): 7' 6”,Turn Radius Outside (deg): 198”, Number of Mast Stages: N/A, Electrical Voltage: N/A, Max Drive Height: 9' 7"
Model:SJ45 T+
