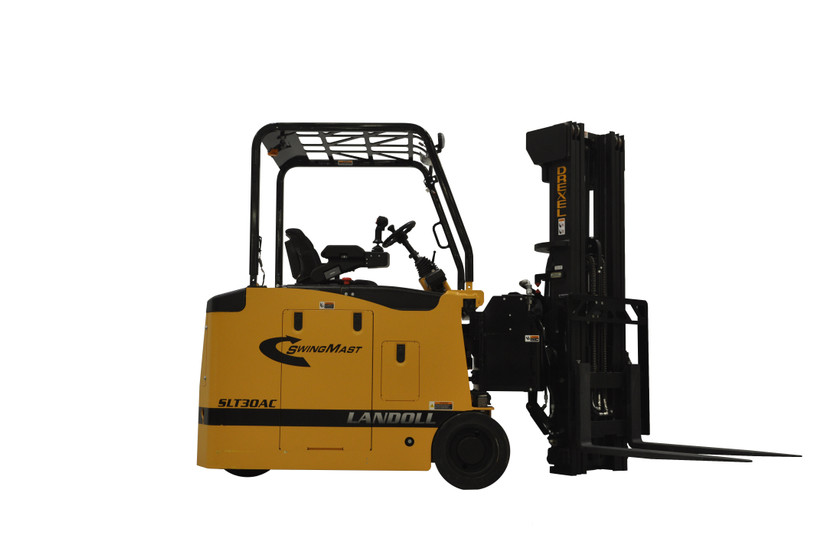

Bendi SwingMast RWD VNA Warehouse Forklift SLT30AC
| The Drexel model SLT30AC and SLT35AC work in aisles as narrow as 56″ (1.4M), have a basic capacity of 3,000 lbs. (1361kg) or 3,500 lbs. (1588kg) at 24″ (600mm) load center and lift heights available to 26′ (7.92M). The SLT30AC and SLT35AC are 3-wheel front/side loading VNA forklifts with a single smooth rubber rear-drive/steer tire and solid poly-front load tires. The front mast rotates 90° and has side shift of 20” (508mm), allowing stacking easily in Very Narrow Aisles. Both models can work inside and outside on paved surfaces, can perform the jobs of a normal front-loading forklift (including loading and unloading highway trucks and containers, working in bulk storage, drive-in rack, push back rack, double deep and climbing steep ramps). The SLT range does the jobs of reach and counterbalanced trucks in aisles over 50% smaller. The rear steering and drive allow turning in short-cross aisles further increasing the storage density when compared to counterbalanced trucks. |
- 3,000 lb. (1361kg) and 3,500 lb. (1588kg) Capacity at 24″ (600mm) Load Center
- Three-Wheel Design, Single Rear-Wheel Drive and Steering Provide Excellent
- Maneuverability and Traction
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Single Joystick Controls Hydraulic Functions, Directional Control, Horn and
- Wire Guidance
- Electronic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- The Adjustable Swivel Seat Improves Operator Comfort while Traveling in Reverse
- An Electro/Mechanical Parking Brake is Automatically Applied When Power is
- Turned Off or the Operator Leaves the Seat
- High Visibility Mast Allows Optimum Safety and View of Loads and Forks
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High Efficiency Curtis AC Controllers Provide Trouble Free Operation
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with
- Service Monitor, Diagnostic Code Display, Input Device Calibration)
- 48 Volt Electrical System and Large Capacity Battery Compartment
- Optional Cold Storage Conditioned to -22°F (-30°C)
- Non-Standard Fork Lengths
- Dual Overhead Guard-Mounted LED Headlights
- Dual Rear Safety LED Light Bars
- Safety Flashing LED Light
- Backup Alarm – Beeping Tone (“Smart” dB Adjusting)
- Fire Extinguisher – OHG Post Mounted
- Cold Storage Conditioning to -22°F (-30°C)
- Lazer Fork Height Indicator
- Fork Positioner
- Keyless Key Pad On-Off
- Type EE Construction
- Single Auxiliary Hydraulics
- Landguide Wire Guidance
Model:SLT30AC, Tire Type: Polyurethane
Featured Attribute:Elecric, Power/ Fuel Type:Battery, Electrical System Voltage: 48V, Horsepower (hp):N/A, Max Capacity (lbs.):3000, Max Travel Speed Empty (mph):7, Max Travel Speed Loaded (mph): 6, Lift Speed Loaded (fpm):95, Max Gradeability Loaded (%): 10, Length to Fork Face (in.):89, Overall Height Collapsed (in.):224-308, Overall Width (in.):45.5, Overall Length (n.): N/A, Lift Height (in.):188-272, Turn Radius Outside (deg/in): 67,Turn Radius Inside (deg/in): N/A, Wheelbase (in.): 56
Model:SLT30AC
