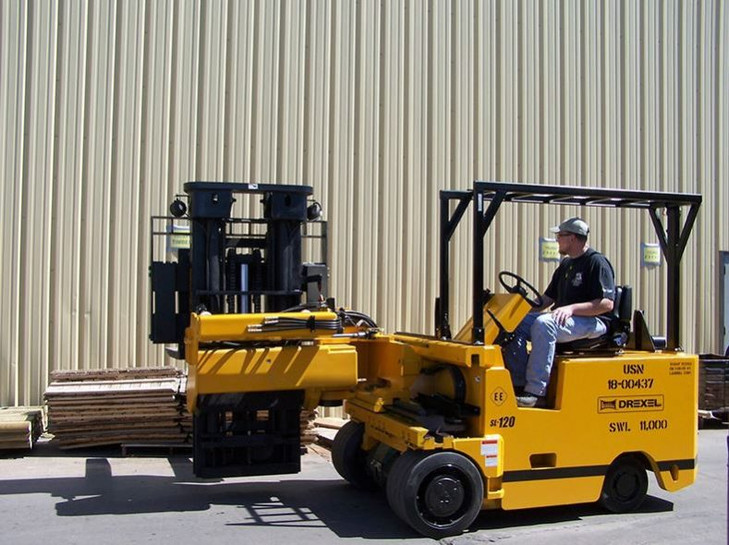

Drexel SwingMast VNA & Side Loading Forklift SL120AC
| The Drexel model SL120 is a specialized high capacity SwingMast® model that works in aisles as narrow as 72″ (1.8M), has a basic capacity of 12,000 lbs. (5443kg) at 24″ (600mm) load center and has lift heights available to 243” (6.17M). The SL120 is a 4-Wheel SwingMast® VNA and Side Loading Forklift with independently driven front wheels and dual rear steer tires. The front mast rotates 90° and has a side shift of 44” (1118mm), allowing stacking easily in Very Narrow Aisles. The SL120 can also work inside and outside on paved surfaces, can perform the jobs of a high capacity front loading and side loading forklift combined including working in bulk storage, cantilever rack and climbing steep ramps. The SL120 performs the jobs of a high capacity counterbalanced truck but in aisles over 40% smaller. The ability to store and transport heavy long loads as a side loader increases versatility and maximizes utilization. |
- 12,000 lb. (5443kg) Capacity at 24″ (600 mm) Load Center
- Four-Wheel Design, Independently Driven Front Drive Wheels and Dual Rear
- Steering Wheels Provide Excellent Maneuverability and Traction
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Dual Joysticks Control all Hydraulic Functions
- Hydrostatic Power Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Adjustable Suspension Seat Improves Operator Comfort
- Large Battery Compartment Allows Maximum Battery Capacity for Long Run
- Times
- High Visibility Mast Allows Optimum Safety and View of Loads and Forks
- Series Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High Efficiency Controllers Provide Trouble Free Operation
- Battery Discharge Indicator with Lift Interrupt, Hour Meter with Service
- Monitor and Diagnostic Code Display are Standard
- 72 Volt Electrical System
- Type “EE” UL Construction
- LED Headlights, Flashing Light, and Rear Safety Lights
- Backup Alarm
- Fire Extinguisher
- Long Load Handling Deck Mount
- Lift Limit
- Integral Fork Positioner
- Non-Standard Fork Lengths
- Auxiliary Hydraulics
- “X” Groove Polyurethane Drive & Steer Tires
Model:SL120, Tire Type: Polyurethane
Featured Attribute:Narrow Aisle, Power/ Fuel Type:Battery, Electrical System Voltage: 72V, Horsepower (hp):N/A, Max Capacity (lbs.):12000, Max Travel Speed Empty (mph):6, Max Travel Speed Loaded (mph): 5, Lift Speed Loaded (fpm):80, Max Gradeability Loaded (%): 10, Length to Fork Face (in.):117, Overall Height Collapsed (in.):82-124, Overall Width (in.):69.5, Overall Length (n.): N/A, Lift Height (in.):135-243, Turn Radius Outside (deg/in): 106,Turn Radius Inside (deg/in): N/A, Wheelbase (in.): 59
Model:SL120
