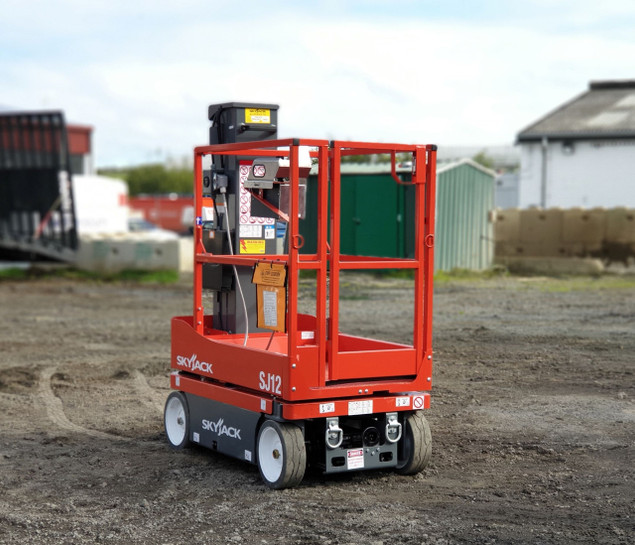

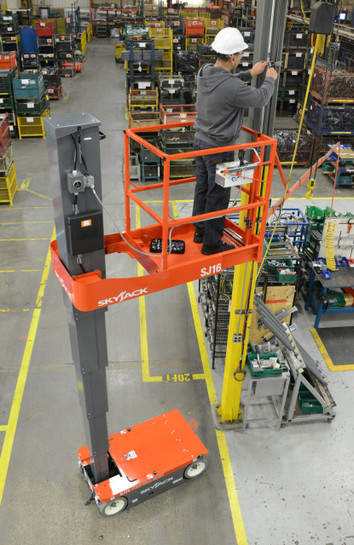

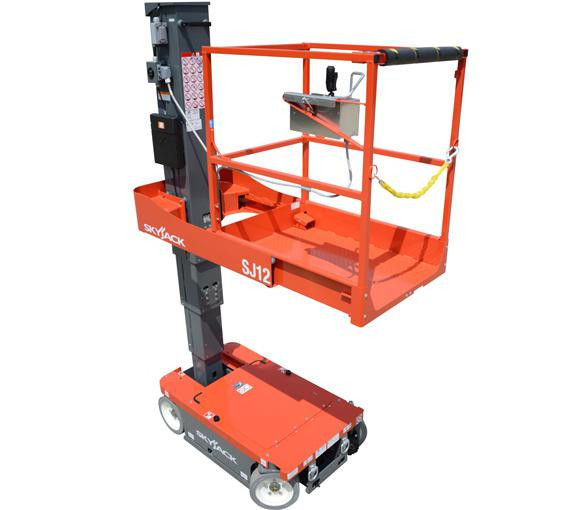

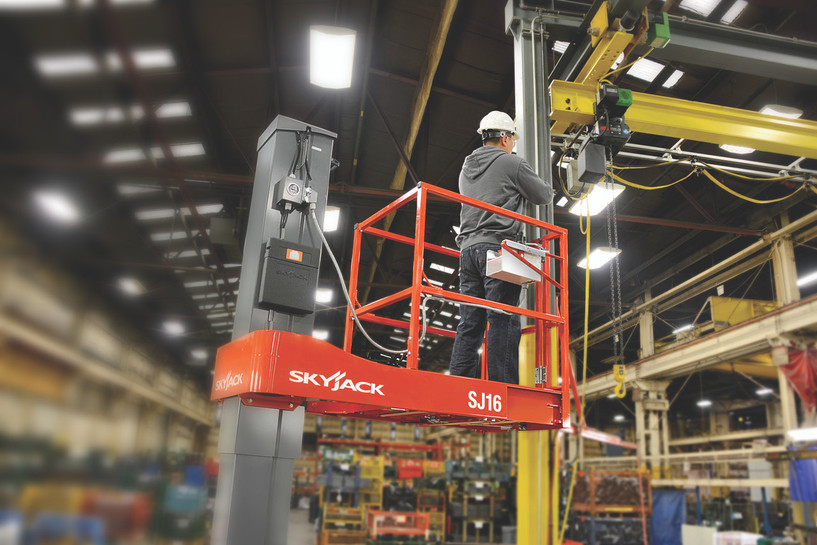

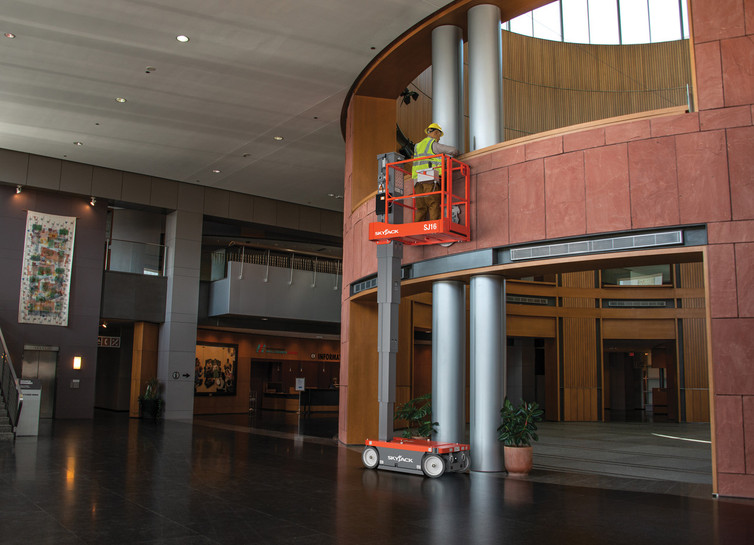

Skyjack Vertical Mast Lift
|
Skyjack’s Next Generation Vertical Mast Lifts provide a quiet and versatile package with zero emissions. With a new mast design, AC electric drive, drivable at full height, and less hydraulic connection points, the SJ12 E, SJ16 E and SJ20 E boast increased duty cycle expectations. Exceptional maneuverability and Skyjack’s unique traversing platform make these Next Generation masts an ideal choice for a wide range of indoor and outdoor construction, maintenance, and industrial applications. |
VERTICAL MAST LIFT
|
Model
|
Working Height
|
Raised Platform Height
|
Weight (lb)
|
Capacity (lb)
|
|
SJ12 E
|
18'
|
12'
|
2012
|
500
|
|
SJ16 E
|
21'6"
|
15'6"
|
2054
|
500
|
|
SJ20 E
|
25'6"
|
19'6"
|
2440
|
350
|
- Variable speed, front two wheel electric drive
- Overload sensing system
- Drivable at full height with platform retracted
- 90° Steering (zero inside turning radius)
- Dual holding brakes
- On-board visual interface with diagnostic capabilities
- Shroud style, impact resistant composite control box
- Proportional controls for drive & lift functions
- 16” (0.41 m) Traversing platform
- Multistage lift cylinders
- 24V DC power source
- 2 x 12V Batteries
- Low voltage battery protection
- 25% Gradeability
- Solid rubber, non-marking tires
- Fixed pothole protection system
- 110V AC outlet at platform with GFI
- Tilt alarm with drive & lift cut-out (2.5° x 1.5°)
- All motion audible alarm
- Lanyard attachment points
- Operator horn
- Lift rings/tie downs
- Half height spring hinged entry gate
- Removable oil filter
- Forklift pockets (2.5” x 5”)
- Telematics ready
- 2 Year Gold Leaf Warranty (5 year structural warranty)
Model:Vertical Mast Lift
Featured Attribute:Electric, Fuel Type:Battery, Raised Platform Height (ft.): 12'-19'6", Platform Capacity (lb): 350-500
