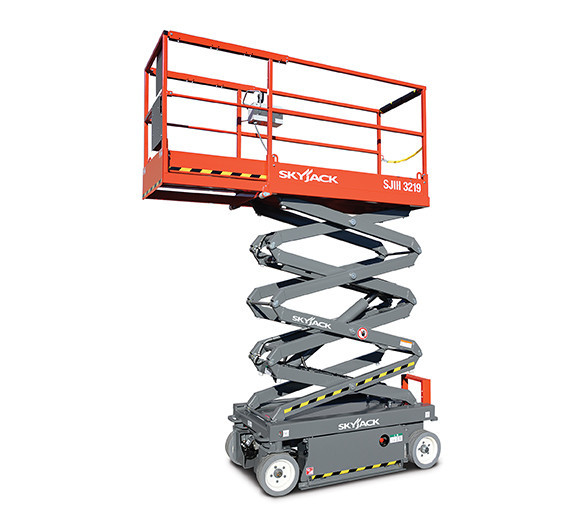

Skyjack Micro Electric Scissor Lift
|
The SJ3213 micro and SJ3219 micro remain simply reliable, combining low cost of ownership with Skyjack’s renowned product support. Fully proportional drive and lift controls offer superior drive with more efficiency, controllability and improved torque, while variable speed brushless AC electric front wheel drive provides exceptional duty cycles. These new micros have been designed to fit most passenger style elevators and work in environments where space is at a premium while still providing a substantial work area. |
MICRO ELECTRIC SCISSOR LIFT
|
Model
|
Working Height
|
Raised Platform Height
|
Weight (lb)
|
Capacity (lb)
|
|
SJ3213 Micro
|
19'
|
13'
|
1897
|
500
|
|
SJ3219 Micro
|
24'
|
18'1"
|
2675
|
500
|
- Drivable at full height
- Variable speed, dual front wheel electric drive
- Motor guards
- Dual holding brakes
- SKYCODED™ Color coded and numbered wiring system
- On-board visual interface with diagnostic capabilities
- Shroud style, impact resistant composite control box with extended cable
- 28 mph (12.5 m/s) Wind rating Up to 12’ (3.65 m) for SJ3213 micro and 16’ (4.87 m) for SJ3219 micro
- Low battery indicator light on control box
- Proportional controls for drive & lift functions
- 20” (0.5 m) Roll out extension deck
- 24V DC Power source
- 110V AC Outlet on platform with GFI
- 2 x 12V Batteries
- Low voltage battery protection
- 25% Gradeability
- Solid rubber, non-marking tires
- Fixed pothole protection system
- Tilt alarm with drive & lift cut-out (3° x 1.5°)
- All motion audible alarm
- Lanyard attachment points
- Steel front wheel motor guards
- Operator horn
- Forklift pockets and tie down / lift lugs
- Overload sensing system
- Solid rails
- Full height spring hinged entry gate
- Telematics ready
- 2-Year Gold Leaf Warranty (5-year structural warranty)
Model:Micro Electric Scissor Lift, Work Height (in.): 25'
Featured Attribute:Electric, Fuel Type:Battery, Raised Platform Height: 13'-18'1", Platform Capacity (lb): 500
Model:Micro Electric Scissor Lift
