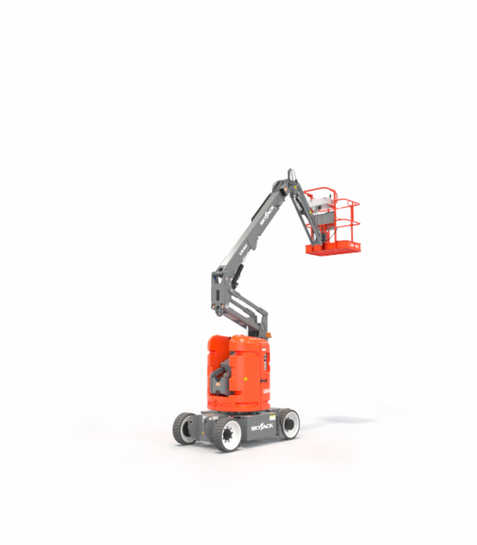

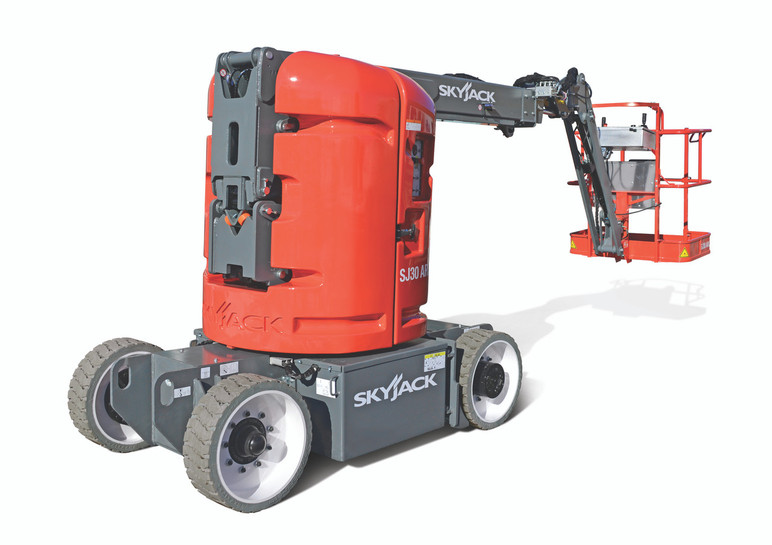

Skyjack Articulating Boom Lift
|
Skyjack articulating booms offer precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach. The tight turning radius on these machines and minimal tailswing make them ideal for maneuvering in confined areas. SPEEDYREACH Skyjack's SJ63/85 AJ features a boom geometry that allows the operator to lower the main fly boom to ground level to restock on material or supplies, then return to full height at the original working position - without lowering the riser section. It can be quickly executed and there is no need for machine repositioning or having to remember the sequence of operations to get back to the original working position - thus, improving productivity. |
ARTICULATING BOOM LIFT
|
Model
|
Working Height
|
Raised Platform Height
|
Weight (lb)
|
Capacity (lb)
|
|
SJ30 ARJE
|
35'6"
|
29'6"
|
12,320
|
500
|
|
SJ45 AJ+
|
51'
|
45'
|
11,190
|
660
|
|
SJ60 AJ+
|
66'
|
60'
|
18,865
|
660-1000
|
|
SJ45 AJE+
|
51'
|
45'
|
11,920
|
660
|
|
SJ60 AJE+
|
66'
|
60'
|
19,577
|
660-1000
|
|
SJ85 AJ
|
91'
|
85'
|
36,300
|
500-750
|
- EASYDRIVE™ Direction sensing drive and steer controls
- SKYRISER™ True vertical rise
- Direct AC electric drive
- Dual spring applied, electromagnetically released brakes
- Speed and angle sensing traction control
- Drivable at full height
- 35% Gradeability
- Relay based control system with SKYCODED™ color coded and numbered wiring
- 48V 305 Ah Battery pack
- Swing out battery trays
- Swing out cowlings for easy access
- Proportional controls
- Function speed selector
- Bolt-in platform railing system
- Lanyard attachment points
- Rear-entry sliding mid rail
- Secondary Guarding Electrical (SGE)
- Overload sensing system
- Powered emergency lowering
- Hourmeter
- Operator horn
- All motion alarm
- Tie down / lifting lugs
- Telematics ready
- 2-Year Gold Leaf Warranty (5-year structural warranty)
- Pipe rack
- Tool caddy
- Flashing light
- Rear spring hinged entry gate
- Bio oil
- Half height mesh platform
- Control box cover
- Non-destructive testing
- ELEVATE telematics
Model:Articulating Boom Lift, Work Height: 35’ 6”-91'
Featured Attribute:Articulating, Fuel Type:Battery, Raised Platform Height (ft.):29'6"-85', Platform Capacity(lb): 500-1000
Model:Articulating Boom Lift
