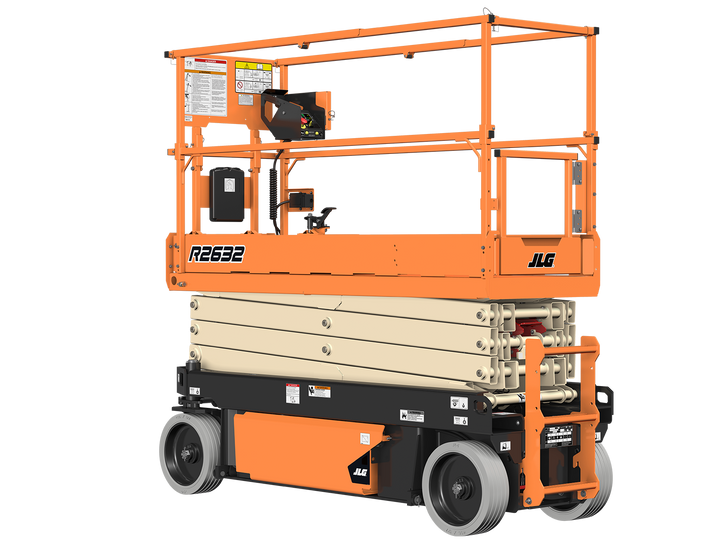

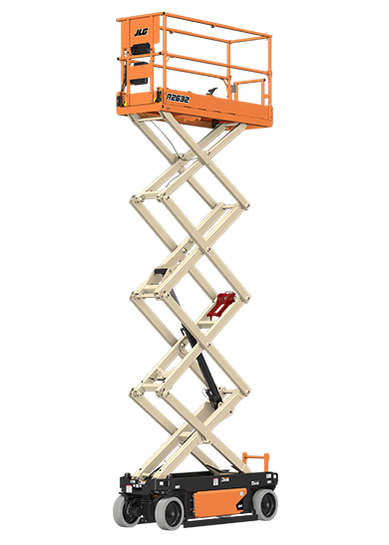

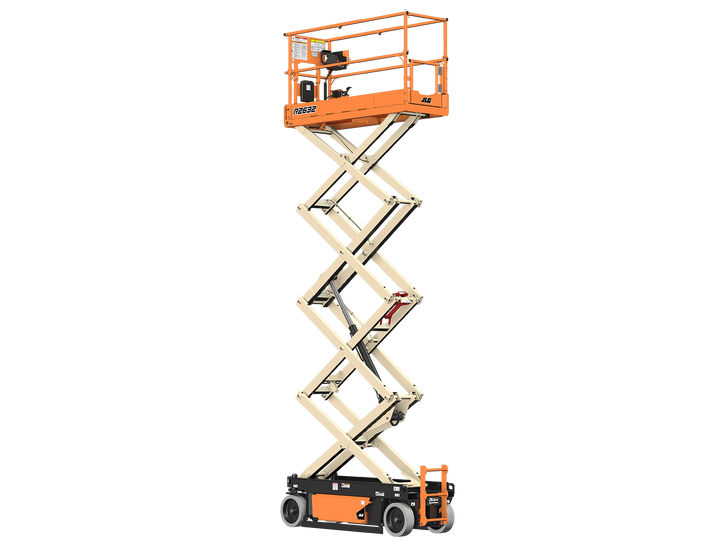

JLG R2632 Electric Scissor Lift
| R Series electric scissor lifts are a rental-ready solution for all types of job sites. Offering greater affordability, reliability and serviceability, these scissor lifts have fewer parts and all-steel swing-out component trays. Their compact dimensions are ideal for confined spaces. Plus, the improved battery charger reduces guesswork by informing you on how your batteries are performing. |
•Reach More in Difficult Conditions: Industry-exclusive outdoor rating for use up to 21 ft
•Tackle Demanding Terrain: Active pothole protection provides increased ground clearance
•Meet the Highest Standards: Complies with A92.20 ANSI regulations
•Fit Through Standard Doorways: Ability to pass through single doorways gives you more access site-wide
- Coiled Platform Control BoxCable
- Drive Motor Covers
- Extension DeploymentHandles
- Flashing Amber Beacon
- MDI (Ground)
- Anti-Vandalism PKG
- Eagle Performance Charger
- 900W Inverter
- Ambient Noise Alarm
- Batteries, AGM (6V, 220AH) -R2632/R3246
- Batteries (6V, 220AH) - R2632/R3246
- Batteries (6V, 250) - R2632
- Batteries (6V, 255AH) - R3246
- Batteries (12V, 185AH) - R4045
- Batteries, AGM (12V, 150AH)- R4045
- Batteries, (12V, 150AH) - R4045
- JLG® Mobile Control
Model:R2632, Work Height (in.): 31 ft 6 in.
Featured Attribute:Electric, Fuel Type:Electric, Raised Platform Height (ft.): 25 ft 6 in., Lowered Platform Height (ft.):3 ft 8 in., Overall Width (in.):2 ft 8 in. , Overall Length (in.):7 ft 10 in., Platform Capacity at Lift Height (lb) (in.) : 507, Platform Lift Time (sec):32, Platform Lower Time (sec): 24, Ground Clearance (Collapsed) (in.): 4, Ground Clearance (Lifted) (in.):N/A, Wheelbase (in.):6 ft 2 in., Max Travel Speed (Lowered) (mph):2.2, Max Travel Speed (Lifted) (mph): 0.6, Max Gradeability (%):25, Turn Radius Inside (deg): 0,Turn Radius Outside (deg): 7 ft 4 in., Number of Mast Stages: N/A, Electrical Voltage: 4 x 6V, Max Drive Height: 21 ft
Model:R2632
