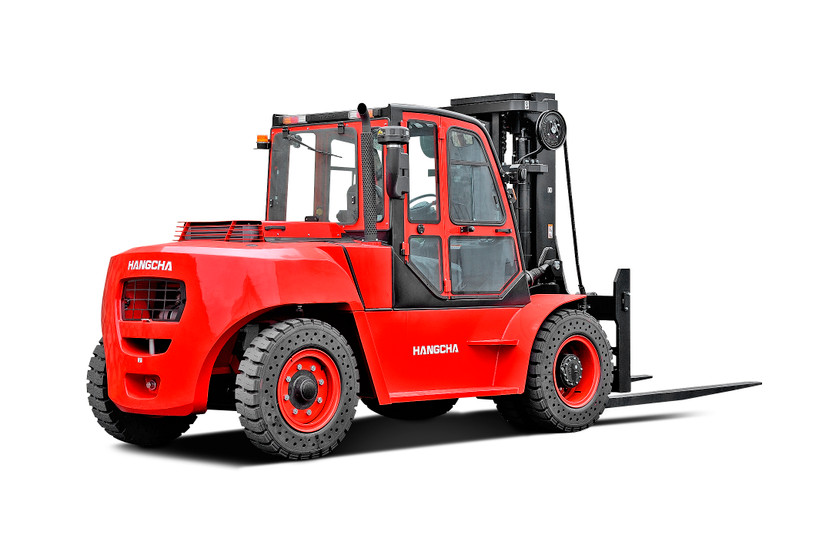

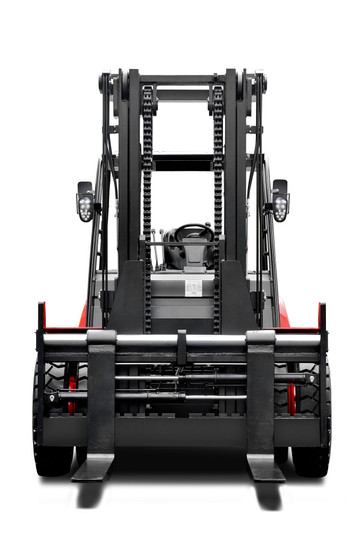

Hangcha Large Pneumatic Forklift FD100G
| In developing the XF 17500-22000lbs series,comfort and easy operation is always considered, for example, inproved vibrating levels, compound engine damper and full floationg seat and cabin are applied. Comfortable also contribute to increased productivity. |
- Transmission
- Suspension transmission
- Oil filter
- Dipstick
- Oil cooler
- Non-asbestos bake
- Wet brake
- Steering
- Full hydraulic power steering
- Smaller diameter steering wheel
- Adjuster of steering wheel
- Shock absorber of steering axle
- Chassiss
- Skidproof pedal
- Rubber pedal
- Engine hood spring
- Control
- Power steering
- Suspension pedal
- Integrated combination switch
- Parking brake
- Hydraulic
- Dynamic load sending control valve
- Hydraulic oil filter
- Tilt cylinder self-lock valve
- Hydraulic oil dipstick
- Accumulator
- Hydraulic oil radiator
- Truck
- Traction device
- Hand grip
- Standard seat
- Floating overhead guard
- Waterproof cover on the guard
- Back view mirror
- Air pneumatic tyres
- Toolbox
- Power
- Big capacity aluminum radiator
- Whirlwind air cleaner
- Safety filter
- High-effcient intake muffler
- High-effcient exhaust muffler
- High-positioned exhaust system
- Electronics
- LED headlamp
- High-e cient LED rear lights
- Service-free start battery
- Combination controller
- LCD display
- Neutual switch
- Hour meter
- Fuel gauge
- Water temperature gauge
- Pre-heat indicator
- Charging indicator
- Engine fuel pressure warning
- Oil temperature
- Horn
- Reversing buzzer
- Air-filter with jam sensor
- Emergency power off
- Mast
- Standard wide view duplex mast
- Standard forks
- Standard fork carriage
- Mast speed limiting valve
- Load safety valve
- Mast down bu er device
- Mast up bu er device
- Side roller
- Fork positioner
- Truck
- Full cabin
- Cabin heater
- Front window
- Super pneumatic tyre
- Non-mark tyre(white/green)
- Suspension seat
- Fire extinguisher
- Special given color
- Boot for tilt cylinder
- Counter weight net
- OPS
- Power
- Overhead exhaust system
- Air pre-cleaner
- Radiator screen
- Fan protector
- Hydraulic
- Auxiliary hydraulic valve
- Elecctro-hydraulic
- Proportional control system
- Duplex wide view free-lift mast
- Triplex wide view free-lift mast
- Special forks
- Wider fork carriage
- Widerload back rest
- Electronics Mast
- Front working light
- Rear working light
- Warning lamp
Model:FD100G, Tire Type: Pneumatic
Featured Attribute:N/A, Power/ Fuel Type:Diesel, Horsepower (hp):114, Max Capacity (lbs.):22000, Max Travel Speed Empty (mph):17.7, Lift Speed Loaded (fpm):62.4, Max Gradeability Loaded (%): >20, Length to Fork Face (in.):167, Overall Height Collapsed (in.):112.2, Overall Width (in.):85.2, Overall Length (n.): 226, Lift Height (in.):118, Turn Radius Inside (deg/in): 155.1, Wheelbase (in.): 110
Model:FD100G
