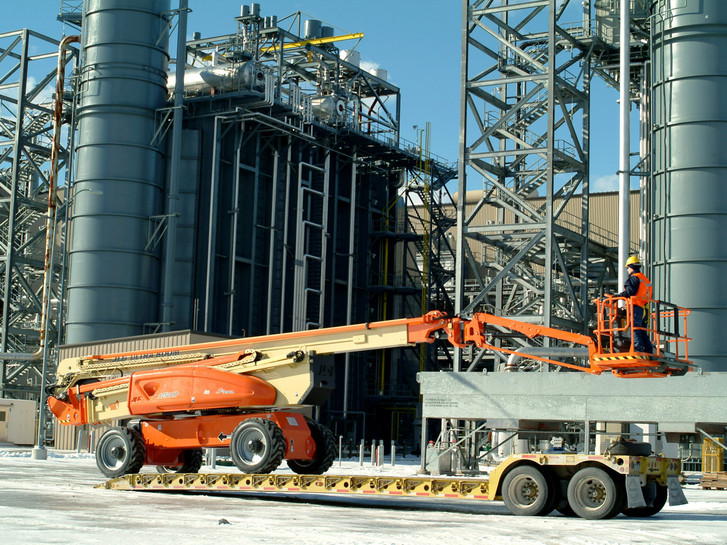

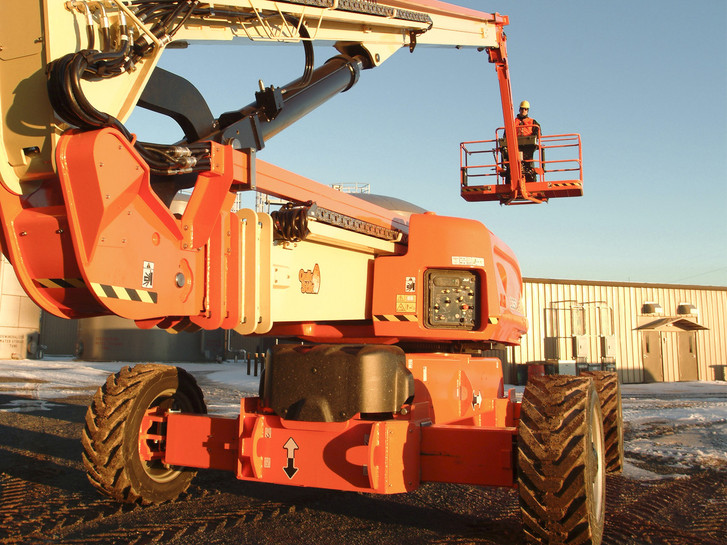

JLG Ultra Series Articulating Boom Lift
|
When working at twelve stories high or more, you want boom lifts you can trust to go above and beyond the day’s demands. Steel mills and chemical plants, airports, convention centers, shipyards and heavy construction, the JLG Ultra Series was designed to dominate some of the toughest industries that demand crews work higher and reach farther. CHOOSE JLG ULTRA BOOMS FOR: + Maximum Productivity – All JLG Ultra Booms offer full-time 4WD and three steering modes to keep you confident on diverse and changing job sites. + Exclusive QuikStik® Design – Provides articulating models faster cycle speeds from ground to full elevation to help crews start their work quicker. + JibPLUS® – Select models offer up to 180 Degrees of horizontal maneuverability. + Customizing Your Lift – Equip your boom for success in any trade with a wide range of advanced accessories including in-platform generators, welders, factory-approved glass and panel trays, bolt-on external fall arrest and more. |
ULTRA SERIES BOOM LIFT
|
Model
|
Platform Height
|
Horizontal Outreach
|
Up & Over Height
|
Platform Capacity (lb)
|
|
1250AJP
|
125'8"
|
63'2"
|
60'6"
|
500
|
|
1500AJP
|
150'
|
75'
|
60'4"
|
600
|
|
1200SJP
|
120'
|
75'
|
-
|
500
|
|
1350SJP
|
135'
|
80'
|
-
|
500
|
|
1500SJ
|
150'
|
80'
|
-
|
500
|
|
1850SJ
|
185'
|
80'
|
-
|
500
|
- Platform: 36 x 96 in. (0.91 x 2.44 m) Side Entry 8 ft (2.44 m)
- JibPLUS® Boom
- Selectable Capacity Envelope
- 180° Hydraulic Platform Rotator
- AC Receptacle in the Platform
- 5 Degree Tilt Alarm/Indicator Light
- All Motion Alarm
- Swing-Out Engine Tray
- 12V DC Auxiliary Power
- Hourmeter
- Control ADE® System
- Full-time 4WD
- 3 Selectable Steering Modes
- Drive-out Extendible Axles
- Oscillating Axle
- Proportional Controls
- Gull-Wing Hoods
- 445/50D710 Foam Filled Rim Protector Lug Tread Tires
- Platform Console Machine Status Light Panel*
- Lifting/Tie Down Lugs
- Engine Distress Warning/Shutdown — Selectable via JLG Analyzer
- SkyGuard SkyLine™
