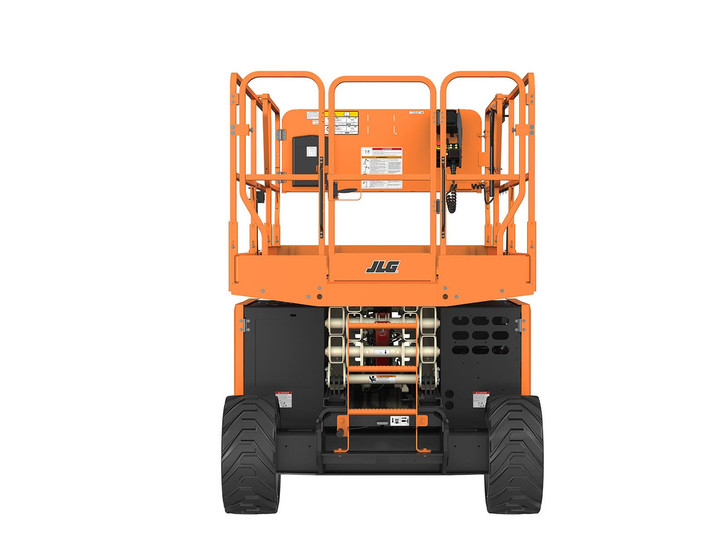

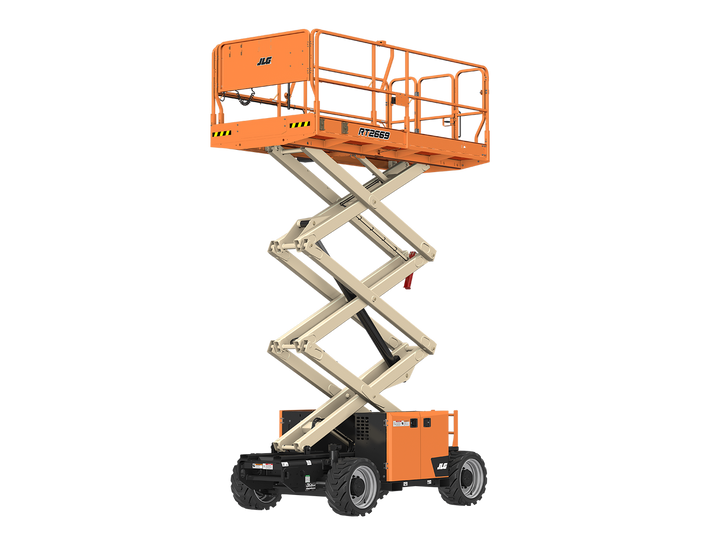

JLG Rough Terrain Scissor Lift
| Our family of JLG® engine powered rough terrain scissors offers a wide range of models. Choose from four, 69 in wide machines that range in platform heights from 26 ft to 47 ft or from three 94 in wide machines that range in platform heights from 33 ft to 53 ft. Most models are capable of driving at full height, ensuring this line provides the broadest range of machines to handle any application. |
RT SERIES ROUGH TERRAIN SCISSOR LIFT
|
Model
|
Machine Height
|
Max Platform Height
|
Up & Over Height
|
Platform Capacity (lb)
|
|
RT2669
|
8'
|
26'2"
|
-
|
1500
|
|
RT3369
|
8'6"
|
32'10"
|
-
|
1000
|
|
RT3394
|
9'1"
|
33'
|
-
|
2250
|
|
RT4069
|
8'7"
|
40'3"
|
-
|
800
|
|
RT4394
|
9'10"
|
43'
|
-
|
1500
|
|
RT4769
|
9'1"
|
47'
|
-
|
800
|
|
RT5394
|
10'1"
|
53'
|
-
|
1500
|
- 42 in Roll-out Deck Extension
- Nickel Plated Pins, Yellow Zinc-Chromate
- Plated Fasteners
- Pin-Less Fold Down Rail System
- Platform Control Box with LCD Display,
- USB Charger and Phone Holster
- Self-Closing Gate
- Full Time Traction Control
- Lubrication-Free Scissor Arm Bushings
- Manual Descent Pull Cable1
- Oscillating Front Axle
- Scissor Maintenance Prop
- Tie Down Lugs
- 26 x 12 Foam Filled Lug Tread Tires
- 110V-AC Receptacle In Platform
- All Motion Alarm
- Horn
- Hourmeter
- Proportional Lift and Drive
- Pin-based Load Sensing System
- Telematics-Ready Harness
- LCD Display with LiftSense System
- Fold Down Rails
- ECU Controlled Engine Speed
- Remote Engine Oil Filter Package
- ANSI A92.20 Compliant
- 33.5 lb Aluminum Propane Tank
- Moveable, Removable Platform Control Box
- Hydraulic Leveling Jacks (Auto Level)
- Hydraulic Oil Cooler (Excludes RT4769)
- 26 x 12 Foam Filled Non-Marking Tires
- Flashing Amber Beacon - LED
- Dual Flashing Amber Beacons - LED
- White Noise Backup Alarm
- Special Hydraulic Fluids
- Special Paint
- ClearSky™
- Operator Access Control
- 2500W Generator 60Hz/110V (Belt-driven)
- Dual LP Tanks (Dual Fuel Engines only)
- QuikLevel Advanced
- Heavy Duty Pipe Racks
- 2WD
Model:RT Series
Featured Attribute:Rough Terrain, Fuel Type:Diesel
Model:RT Series
