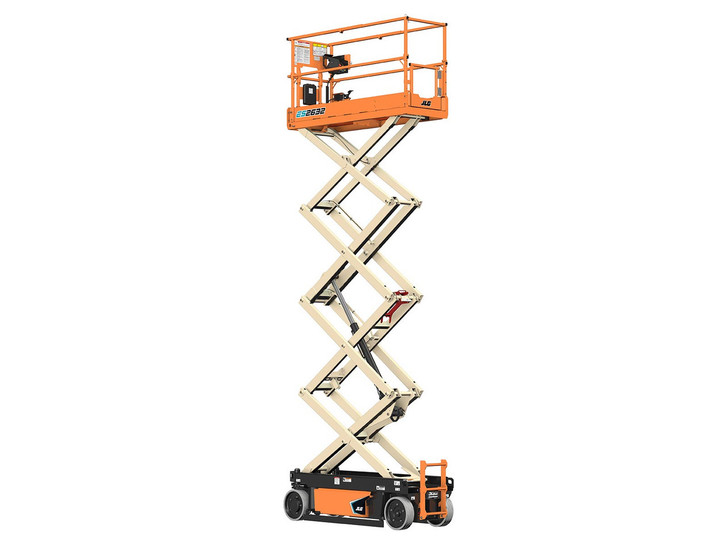

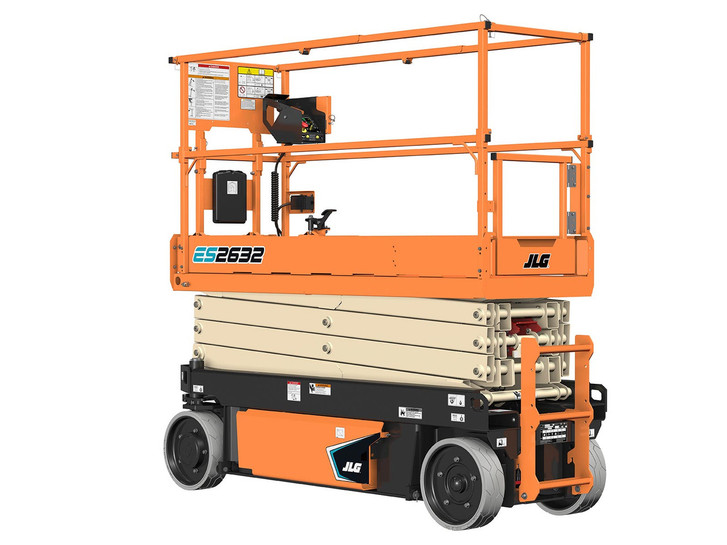

JLG ES Series Electric Scissor Lift
| Experience the benefits of reduced charging time and longer runtime with the ES Series. Choose from a wide range of model options offering up to 1,000-lb capacity, with indoor-only and indoor/outdoor capabilities, and full proportional controls that come standard for ease of operation. Optional accessory packages enhance your productivity. |
ES SERIES SCISSOR LIFT
|
Model
|
Machine Height
|
Max Platform Height
|
Up & Over Height
|
Platform Capacity (lb)
|
|
ES1330M
|
5'11"
|
13'
|
-
|
500
|
|
ES1530M
|
6'2"
|
15'
|
-
|
500
|
|
ES1930M
|
6'6"
|
18'6"
|
-
|
500
|
|
ES1932
|
6'10"
|
19'
|
-
|
507
|
|
ES2632
|
7'4"
|
25'6"
|
-
|
507
|
|
ES2646
|
7'5"
|
26'
|
-
|
1200
|
|
ES3246
|
8'
|
32'
|
-
|
705
|
|
ES4046
|
8'3"
|
39'1"
|
-
|
770
|
- Proportional Controls
- Battery Condition Indicator
- AC Receptacle in Platform
- All Motion Alarm
- 27 amp Multi-Function
- Universal Charger
- Horn
- Hourmeter
- Tilt Alarm and Light
- Lanyard Attach Points
- Movable, Removable
- Platform Control Box
- Nickel Plated Pins
- Lubrication Free Scissor Arm Bushings
- Scissor Maintenance Prop
- Active Pothole Protection System
- Lifting and Tie Down Points
- Fork Lift Pockets
- Foot-Actuated Deck Extension
- Steel Swing-Out Doors
- Variable Tilt Visual Zone Indicator
- Manual Descent Cable
- Diamond Tread Steel Deck
- Greaseless Kingpin Joints
- Analyzer Port for Diagnostics
- Dynamic Braking
- Removable Ladder
- Smart Charger - CAN Enabled
- USB Charger & Phone Holster
- Self-closing Gate
- DC Electric Drive
- Telematics-Ready Harness
- Load Sensing System
- Fold Down Rails with SelfClosing Gate
- ANSI A92.20 Compliant
- CleanGuard
- Coiled Platform Control Box Cable
- Drive Motor Covers
- Flashing Amber Beacon
- MDI (Ground)
- Anti-Vandalism PKG
- Eagle Performance Charger
- 900W Inverter
- White Noise Alarm
- JLG™ Mobile Control
- SkySense™ Level I
- SkySense™ Level II (ES2632 & ES3246)
Model:ES Series Scissor Lift
Featured Attribute:Electric, Fuel Type: Electric, Electrical Voltage: 6V
