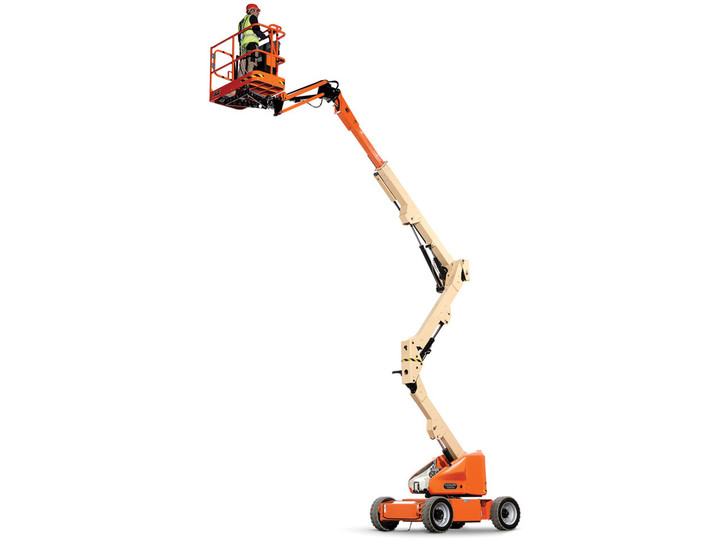

JLG Articulating Boom Lift
|
Standing tall in cramped conditions isn’t all JLG’s line of articulating booms are good for. They can maneuver up, over and around obstacles to provide precision platform placement that crews need to get the job done. CHOOSE JLG ARTICULATING BOOMS FOR: + Capable and Efficient – Reach over and around obstacles like chimneys, ceiling joists, roof trusses, HVAC systems, electrical fixtures, flooring under construction or warehouse shelves. + Compact Maneuverability – Space-restricted job sites require machines with smaller footprints and narrow operating profiles. Zero tail swing on several models doesn’t hurt either. + Versatile Reach – Flexible precision in working heights helps operators tackle overhead tasks from the angle they need to get the job done right. |
ARTICULATING BOOM LIFT
|
Model
|
Platform Height
|
Horizontal Outreach
|
Up & Over Height
|
Platform Capacity (lb)
|
|
E300AJP
|
25'9"
|
20'1"
|
13'2"
|
500
|
|
E400AN
|
40'
|
21'2"
|
21'6"
|
500
|
|
E400AJPN
|
40'
|
22'5"
|
21'6"
|
500
|
|
E450AJ
|
45'
|
23'9"
|
25'3"
|
500
|
|
H340AJ
|
33'10.5"
|
19'11"
|
17'
|
500
|
|
340AJ
|
33'10.5"
|
19'11"
|
17'
|
500
|
|
450AJ
|
45'
|
25'
|
24'
|
550
|
|
450AJ HC3
|
45'
|
25'
|
24'
|
660
|
|
600AJ
|
60'
|
39'
|
26'
|
500
|
|
600AJ HC3
|
60'
|
40'
|
26'
|
660
|
|
800AJ
|
80'
|
51'
|
32'
|
500
|
|
800AJHC3
|
80'
|
52'
|
32'
|
660
|
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Environmentally friendly – zero emissions
- Inward Self-closing Swing Gate
- Flashing Amber Beacon
- Operator Tool Tray
