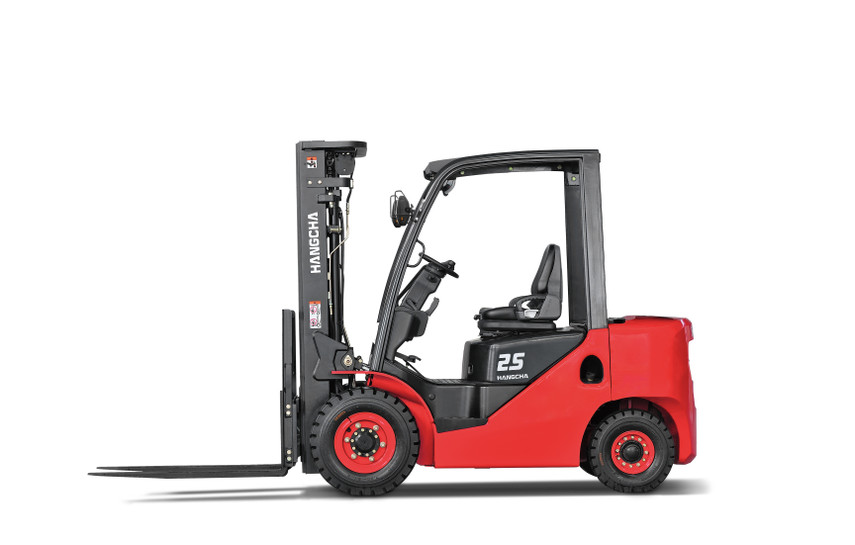

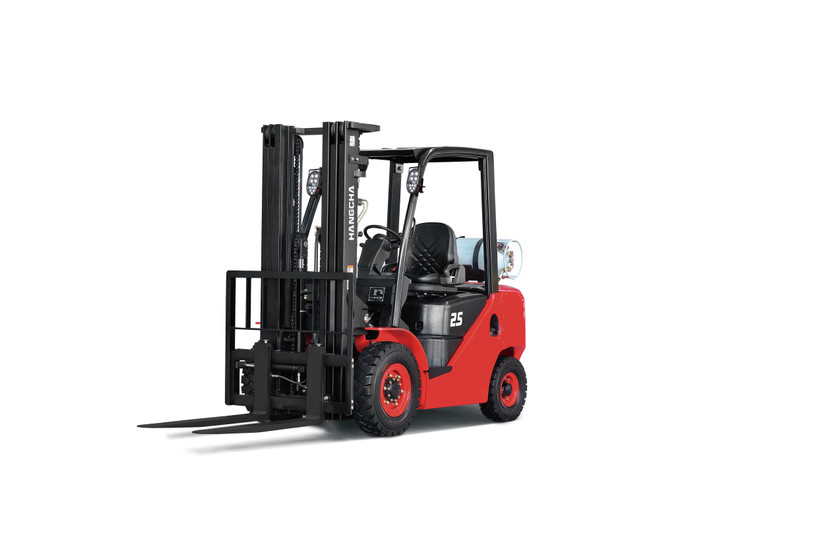

Hangcha IC Pneumatic Forklift FD20
| In the XF Series, Hangcha brought together the experience of more than 30 years building forklifts and the latest forklift technologies, the result is superior in efficiency, environmental friendliness, comfortable operation, reliability, safety. The XF Series, produced from careful research and development, represent a true solution to needs from environment, operator and owner. |
- Suspended transmission
- Dipstick
- Oil cooler
- Non-asbesttos brake
- Full hydraulic power steering
- Smaller diameter steering wheel /Adjuster of steering wheel
- Skidproof pedal
- Rubber pedal
- Engine hood spring
- Power steering
- Suspension pedal
- Integrated combination switch /Cable parking brake
- Dynamic load sending control valve ( Diesel IC )
- Tilt cylender self-locking valve /Hydraulic oil dipstick
- Traction device
- Handhilds
- Standard seat
- Standard overhead guard
- Waterproof cover on the guard /Back view mirror
- Air pneumatic tire
- Big capacity aluminum radiator /Little tank
- Whirlwind air cleaner
- Safety filter
- High-efficient intake muffler /High-efficient exhaust muffler
- LED headlamp
- High-efficient LED rear lights
- Service-free start battery
- Combination controller
- LCD display
- Neutual switch
- Timee meter
- Fuel gauge
- Water temperature gauge
- Pre-heat indicator
- Charging indicator
- Engine fuel pressure warning
- Transmission oil pressure warning /Horn
- Reversing uzzer
- Power off
- Standard wide view duplex mast /Standard forks
- Standard fork carriage
- Standard load back rest
- Mast speed limiting valve
- Load safety valve
- Mast down buffer device
- Mast up buffer device
- Side roller
- Full cabin
- Cabin heater
- Front window with wiper /Solid pneumatic tires
- Non-mark tire
- Suspension seat
- Fire Extinguisher
- Cover of tilt cylender
- Higher overhead guard
- Rear grip handle
- Customized color
- Operator presence system /Boot for tilt cylinder
- Counterweight net
- 2-D wheel
- Big capacity copper radiator
- Overhead guard exhaust system (only for diesel)
- Counterweight exhaust system /Air pre-cleaner
- Radiator screen
- LPG Swing out metal bracket
- LPG Swing down metal bracket /Exhaust fan protector
- Auxiliary hydraulic valve
- Electro-hydraulic proportional control system /Return oil filter
- Front working light
- Rear working light
- Strobe light
- Oil-water seperator warning
- Duplex wide view free-lift mast
- Triplex wide view free- lift mast
- Triplex wide view 4-cylinder free-lift mast /Special forks
- Wider fork carriage
- Wider load back rest
Model:FD20, Tire Type: Pneumatic
Featured Attribute:N/A, Power/ Fuel Type:Diesel, Electrical System Voltage: 12, Horsepower (hp):50.2, Max Capacity (lbs.):4000, Max Travel Speed Empty (mph):11.5, Lift Speed Loaded (fpm):118, Max Gradeability Loaded (%): 25, Length to Fork Face (in.):99.6, Overall Height Collapsed (in.):80.1, Overall Width (in.):45.5, Overall Length (n.): N/A, Lift Height (in.):159.3, Turn Radius Inside (deg/in): 85.8, Wheelbase (in.): 65
Model:FD20
