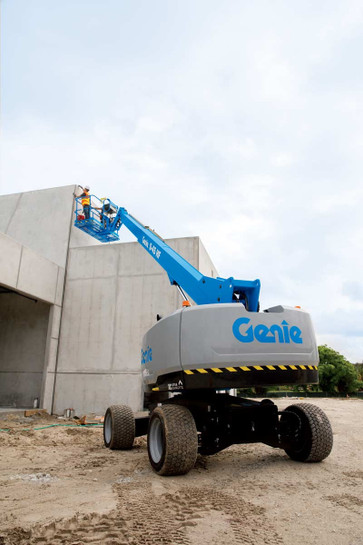

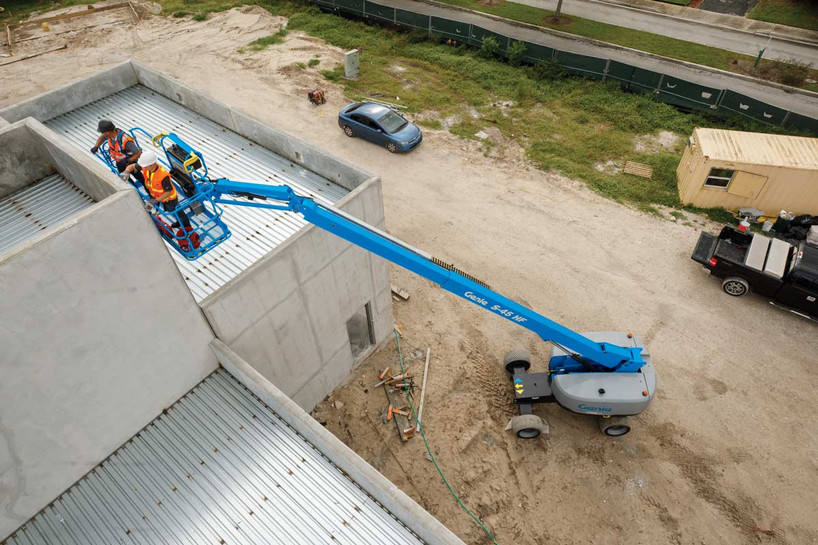

Genie Xtra Capacity Telescopic Boom Lift
| Responding to customer demand worldwide for aerial work platforms to handle heavy lifting, Genie Xtra Capacity (XC) boom lifts are designed to work in more applications that require a higher lift capacity. All Genie XC™ boom lifts have dual lift capacity to provide an unrestricted platform capacity of 660 lb (300 kg) and a restricted capacity of 1,000 lb (454 kg). This reduces the number of lift cycles and amount of equipment needed to get tools and materials to aerial worksites — doing more with a single unit saves time and increases productivity.
In addition to increased platform weight capacity, all Genie Xtra Capacity lifts feature:
Standard Capacity vs. Xtra CapacityWhen you need a high-lift machine on the jobsite, platform capacity matters. Standard-capacity boom lifts can’t exceed 500 lb (227 kg) — but Genie Xtra Capacity lifts have an additional 160 lb (73 kg) of unrestricted capacity and an additional 500 lb (227 kg) of restricted capacity. That means you can get more done in less time and stay on schedule. The Genie Xtra Capacity Telescopic Boom Lift is able to perform a wider range of heavier lift tasks on construction and industrial jobsites, offering a dual lift capacity of 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted and up to three people on board. This TraX model is available with a fixed, four-point track system that allows contractors to work any time of the year. |
XTRA CAPACITY TELESCOPIC BOOM LIFT
|
Model
|
Max Working Height (ft./in.)
|
Max Horizontal Reach (ft./in.)
|
Platform Capacity (lb.)
|
Machine Width (in.)
|
|
S-40 TraX
|
45'6"
|
31'1"
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
|
S-40 XC
|
45'6"
|
31'1"
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
|
S-45 TraX
|
50'6"
|
36'2"
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
|
S-45 XC
|
50'6"
|
36'2"
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
|
S-65 TraX
|
71'
|
54'2"
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
|
S-65 XC
|
71'
|
54'2"
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
|
S-85 XC E
|
91'
|
74'6"
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
|
S-85 XC FE
|
91'
|
74'6"
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
|
S-85 XC
|
91'
|
74'6"
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
|
Z-45 XC
|
51'6"
|
24'9"
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
|
SX-125 XC
|
131'
|
80'
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
|
SX-135 XC
|
141'
|
90'
|
660 lb Unrestricted, 1,000 lb Restricted
|
8'2"
|
- High flotation air filled tires
- 4WD
- Active oscillation, 4WD
- Self-leveling platform
- 160° hydraulic platform rotation
- Proportional joystick controls
- Fuel select switch on platform
- and ground control panels (Gas/LPG models)*
- Drive enable
- AC power cord to platform
- Horn
- Hour meter
- Tilt alarm
- Descent alarm
- 360° continuous turntable rotation
- Locking turntable covers
- Positive traction drive
- Two speed wheel motors
- Entry Toeboard
- Lift Guard™ Contact Alarm
- Lift Tools Work Tray
- Hydraulic oil cooler
- Alarm package (flashing beacon and travel alarm)
Power
- 12 V DC auxiliary power
- Anti-restart engine protection
- Auto engine fault shutdown
- Intake air heater (Deutz engine)
- Productivity Options
Lift Power
-
- - 3 kW AC Generator
- - 12 kW 240 V / 60 Hz Welder
Ready package
-
- - 12 kW Welder Equipped, Select
- Lincoln or Miller (12 kW options
- include a fire extinguisher and fireproof sleeves)
- Lift Guard Platform Mesh - Half
- Lift Guard Platform Mesh - Full
- Lift Guard Platform Mesh - Screen (8ft platform only)
- Platform top auxiliary rail
- Thumb rocker steer
- Air line to platform
- Specialty hydraulic oil (cold weather, fire resistant, or biodegradable)
- Hostile environment kit, standard or deluxe
- Panel cradle package
- Lockable platform control box covers
- Tow package
- Work light package
- Operator Protective Structure***
- Fall Arrest Bar
- Positive Air Shutoff System
- Fluorescent tube caddy**
- Pipe cradle**
- Power Options
- Engine gauge package
- Cold Weather Packages
- Diesel scrubber/muffler (catalytic muffler, Tier 4i only)
- LPG tank 33.5 lb (15.19 kg) capacity
- Intake air pre-cleaner (Tier 4i only)
