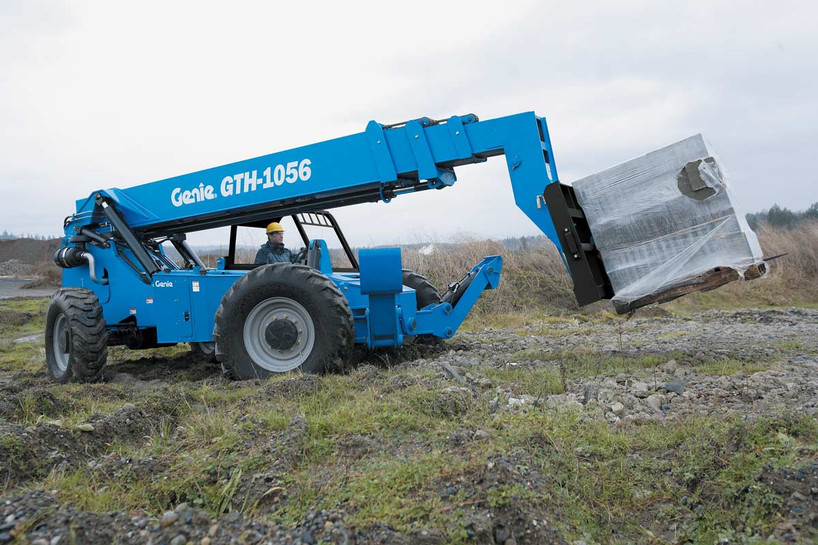

Genie Telehandler
| With outstanding design and performance, the new line of redesigned Genie® GTH™ telehandlers takes reliability to new heights while delivering all-around utility to answer virtually all your work site needs. Available in five power-packed models, new Genie telehandler designs were put through rigorous testing — equal to 10 years of severe duty — to ensure the reliability you depend on. They offer exactly what you need for productivity in limited-access areas or applications where high reach is needed. With a wide range of available attachments, Genie telehandlers can easily handle even the most demanding jobs. |
TELEHANDLER
|
Model
|
Max Lift Capacity (lb)
|
Max Lift Height (ft)
|
Max Forward Reach (ft/in)
|
Capacity at Max Height (lb)
|
|
GTH-636
|
6,000
|
36
|
21' 11"
|
5,000
|
|
GTH-844
|
8,000
|
43' 10"
|
28' 2"
|
6,000
|
|
GTH-1044
|
10,000
|
44' 7"
|
30' 7"
|
8,000
|
|
GTH-1056
|
10,000
|
56' 7"
|
42'
|
5,000
|
|
GTH-1244
|
12,000
|
44' 7"
|
30' 7"
|
8,000
|
|
GTH-1256
|
12,000
|
56' 3"
|
42'
|
6,000
|
|
GTH-5519
|
5,500
|
18 ' 10"
|
11' 3"
|
4,400
|
Productivity
- Full time 4WD
- 4WS
- Operator selectable front, crab, coordinated steering modes
- Frame leveling 10° side to side
- 4-speed forward and reverse powershift transmission
- Power assisted steering
- Inboard wet disc service brakes
- Wet disc spring applied parking brake
- 14 x 28 in 12-ply air-filled rough terrain tires
- Front axle differential lock
- Rear axle stabilization system
- Twin axle mounted stabilizers
- High efficiency/variable displacement hydraulic pump
- ROPS/FOPS canopy
- Single, multi-function, proportional joystick
- Machine level indicator
- Full gauge cluster with engine diagnostics
- Boom angle indicator
- Retractable 3 in (7.6 cm) seatbelt
- Left front and rear tire fenders
- Reverse motion alarm
- Adjustable suspension seat
- Auxiliary hydraulic circuit (15 GPM)
- Genie manual Quick-Attach™ system
- Fenders (set of 4)
- Lift Shackle at boom tip
Productivity
- Fully enclosed cab (includes full glass, defroster, wiper, washer, right-side sliding window, split door)
- Fully enclosed cab air conditioning
- Front and top glass
- Right-side screen
- Flashing beacon
- Work lights (High output LED cab, boom and rear)
- Road lights (High output LED 2 front mounted, 1 backup, 2 rear stop/turn/tail)
- Fire extinguisher
- Rear proximity alarm
- Engine Options
- Deutz TCD 3.6 L Tier 4f 121 HP (90.23 kW)
- Engine block heater
Tire Options
- 14 x 28 in 12-ply foam-filled rough terrain tires
- 14 x 24 in solid rubber Tires
- 14 x 28 in 12-ply foam-filled hard surface tires
Model: Genie Telehandler
