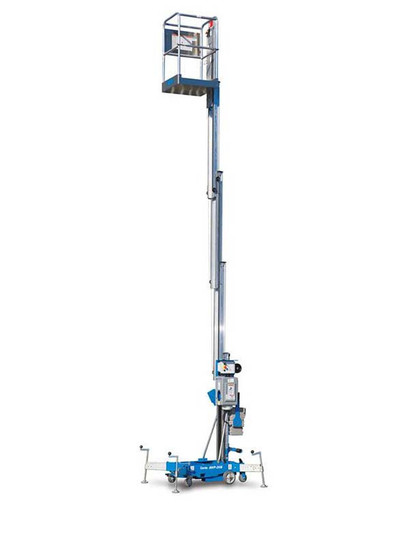

Genie Aerial Work Platform AWP
| The Genie® AWP®Super Series aerial work platform boasts ease of use, convenience and flexibility thanks to its lightweight maneuverability and durable design. This model is ideal for use in a variety of rental, light-duty construction and maintenance applications. |
AERIAL WORK PLATFORM
|
Model
|
Working Height (m)
|
Capacity (kg)
|
Collapsed Height (m)
|
Machine Width (m)
|
|
AWP-20S
|
6.10
|
159
|
1.98
|
0.74
|
|
AWP-25S
|
9.50
|
159
|
1.98
|
0.74
|
|
AWP-30S
|
11
|
159
|
1.98
|
0.74
|
|
AWP-36S
|
13.10
|
159
|
2.78
|
0.74
|
|
AWP-40S
|
14.30
|
136
|
2.78
|
0.74
|
Measurements
- AWP-20S
- 26 ft 1 in (8.12 m) working height
- 20 ft 1 in (6.12 m) platform height
- 2 ft 5 in (.74 m) standard base width
- 2 ft 6 in (.76 m) RT base width
- 1 ft 11 in (.58 m) narrow base width
- Up to 350 lbs (159 kg) lift capacity
Productivity
- Auxiliary platform lowering
- Most rigid mast in the industry
- Rocker base system for maneuverability
- Tilt back frame (standard on AWP™-36, -40)
- Easily rolls through standard doorways
- AC power to platform***
- Dual activated up/down switch
- Ground fault interrupt (ANSI / CSA only)
- Small outrigger footprints
- Outrigger storage sockets
- Easy loading in pickup trucks
- Tie down attachment points
- Overhead crane attachment point
- Wide, rear access forklift pockets
- LED lights indicate outrigger installation
- Standard indoor outriggers
Power
- AC power 85V / 50-60 Hz
- AC power 110V / 50-60 Hz
- AC power 220V / 50-60 Hz
- DC power with worldwide automatic smart charging system (12V / 110V / 230V / 50-60 Hz)
Productivity
- Super Straddle****
- Descent light and alarm package
- Work station tool tray*
- Fluorescent tube caddy**
- Platform locating laser light**
Power
- Air motor power 1.5 hp (1.1 kW)
- (AWP™-30 only)
- Platform Options
- Gated standard platform
- Gated narrow platform
- Gated ultra-narrow platform
- Standard fiberglass platform
- Base Options
- Rough terrain (RT) base with pneumatic casters and rear wheels (AWP™-20, -25, -30 only)
- Narrow base (AWP-20, AWP-25, AWP-30 only)
Model:Aerial Work Platform, Work Height (in.): 6-14 m
Featured Attribute:N/A, Fuel Type:Electric
