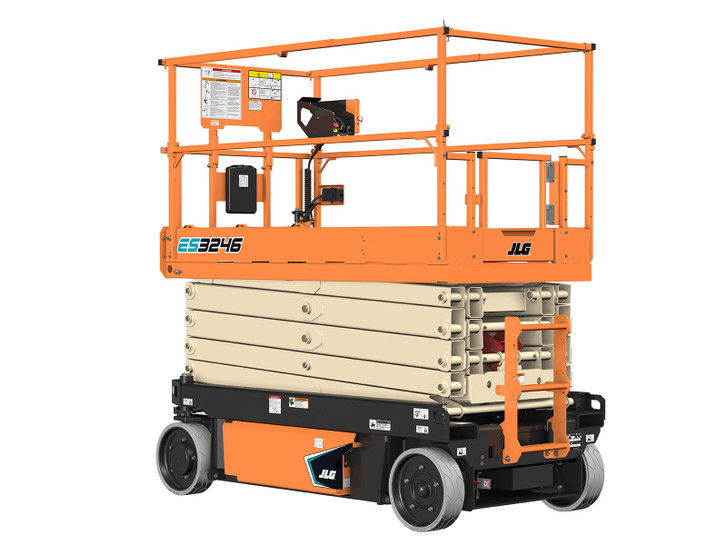

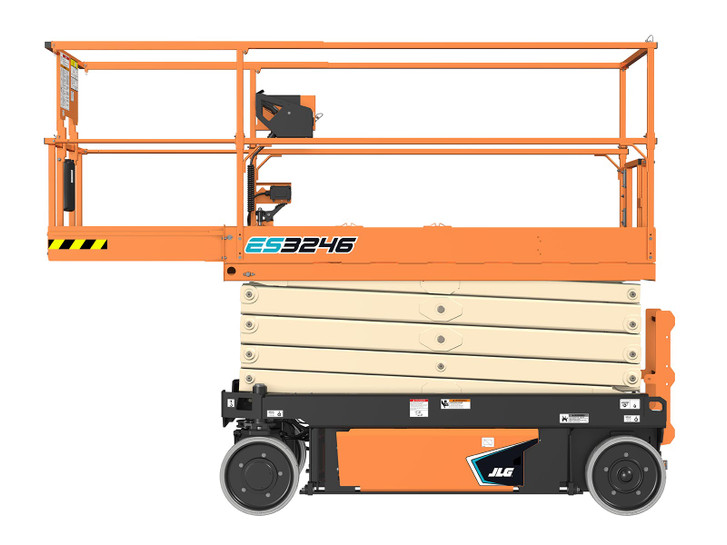

JLG ES3246 Electric Scissor Lift
| Experience the benefits of reduced charging time and longer runtime with the ES Series. Choose from a wide range of model options offering up to 1,000-lb capacity, with indoor-only and indoor/outdoor capabilities, and full proportional controls that come standard for ease of operation. Optional accessory packages enhance your productivity. |
- Proportional Controls
- Battery Condition Indicator
- AC Receptacle in Platform
- All Motion Alarm
- 27 amp Multi-Function
- Universal Charger
- Horn
- Hourmeter
- Tilt Alarm and Light
- Lanyard Attach Points
- Movable, Removable
- Platform Control Box
- Nickel Plated Pins
- Lubrication Free Scissor Arm Bushings
- Scissor Maintenance Prop
- Active Pothole Protection System
- Lifting and Tie Down Points
- Fork Lift Pockets
- Foot-Actuated Deck Extension
- Steel Swing-Out Doors
- Variable Tilt Visual Zone Indicator
- Manual Descent Cable
- Diamond Tread Steel Deck
- Greaseless Kingpin Joints
- Analyzer Port for Diagnostics
- Dynamic Braking
- Removable Ladder
- Smart Charger - CAN Enabled
- USB Charger & Phone Holster
- Self-closing Gate
- DC Electric Drive
- Telematics-Ready Harness
- Load Sensing System
- Fold Down Rails with SelfClosing Gate
- ANSI A92.20 Compliant
- CleanGuard
- Coiled Platform Control Box Cable
- Drive Motor Covers
- Flashing Amber Beacon
- MDI (Ground)
- Anti-Vandalism PKG
- Eagle Performance Charger
- 900W Inverter
- White Noise Alarm
- JLG™ Mobile Control
- SkySense™ Level I
- SkySense™ Level II (ES2632 & ES3246)
Model:ES3246, Work Height (in.): 38'
Featured Attribute:Electric, Fuel Type:N/A, Raised Platform Height (ft.): 32', Lowered Platform Height (ft.):8', Overall Width (in.):3' 10", Overall Length (in.):7' 10", Platform Capacity at Lift Height (lb) (in.) : 705, Platform Lift Time (sec):50, Platform Lower Time (sec): 33, Ground Clearance (Collapsed) (in.): 4", Ground Clearance (Lifted) (in.):N/A, Wheelbase (in.):6' 2", Max Travel Speed (Lowered) (mph):3, Max Travel Speed (Lifted) (mph): 0.5, Max Gradeability (%):25%, Turn Radius Inside (deg): 0,Turn Radius Outside (deg): 7' 9", Number of Mast Stages: N/A, Electrical Voltage: 6V, Max Drive Height: 32'
Model:ES3246
