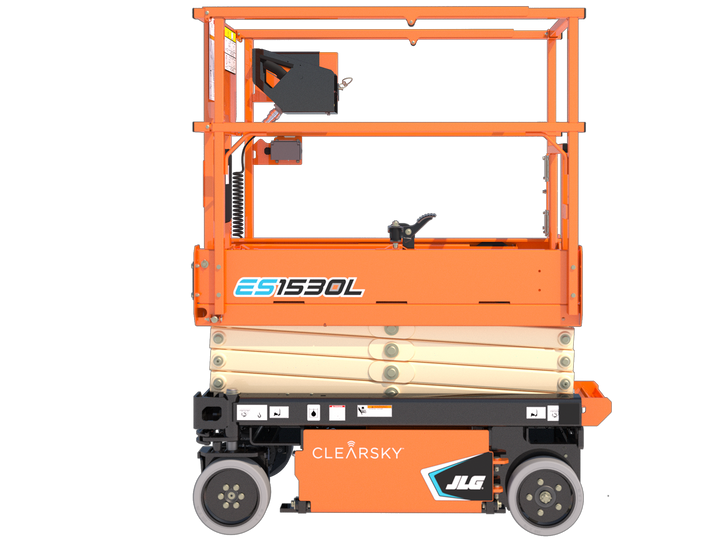

JLG ES1530L Electric Scissor Lift

JLG ES1530L Electric Scissor Lift

Experience the benefits of reduced charging time and longer runtime with the ES Series. Choose from a wide range of model options offering up to 1,000-lb capacity, with indoor-only and indoor/outdoor capabilities, and full proportional controls that come standard for ease of operation. Optional accessory packages enhance your productivity.
  • Proportional Controls
  • Battery Condition Indicator
  • All Motion Alarm
  • DeltaQ - 27 amp Multi-Function Universal Charger
  • Horn
  • Hourmeter
  • Tilt Alarm and Light
  • AC Receptacle in Platform
  • Active Pothole Protection System
  • Lifting and Tie Down Points
  • Fork Lift Pockets
  • Lanyard Attach Points
  • Steel Swing-Out Doors
  • Visual Variable Tilt Indicator
  • Manual Descent Cable
  • Diamond Tread Steel Deck
  • Greaseless Kingpin Joints
  • Analyzer Port for Diagnostics
  • Dynamic Braking
  • Movable, Removable Platform Control
  • Nickel Plated Pins
  • Lubrication Free Scissor Arm Bushings
  • Scissor Maintenance Prop 22 in. (55 cm) Foot-Actuated Deck Extension
  • Removable Ladder
  • Self Closing Gate
  • Load Sensing System
  • Anti-Vandalism Package
  • Coiled Platform Control Box Cable
  • Flashing Amber Beacon - LED
  • Dual Flashing Amber Beacons - LED
  • JLG™ Mobile Control
  • MDI (Ground)
  • CleanGuard™
Model:ES1530L, Work Height (in.): N/A
Featured Attribute:Electric, Fuel Type:N/A, Raised Platform Height (ft.): 15', Lowered Platform Height (ft.):6' 3", Overall Width (in.):2' 6", Overall Length (in.):4' 8", Platform Capacity at Lift Height (lb) (in.) : 500, Platform Lift Time (sec):25, Platform Lower Time (sec): 15, Ground Clearance (Collapsed) (in.): 2", Ground Clearance (Lifted) (in.):N/A, Wheelbase (in.):3' 6", Max Travel Speed (Lowered) (mph):2.4, Max Travel Speed (Lifted) (mph): 0.5, Max Gradeability (%):25%, Turn Radius Inside (deg): 0,Turn Radius Outside (deg): 4' 7", Number of Mast Stages: N/A, Electrical Voltage: 25V, Max Drive Height: 15'
