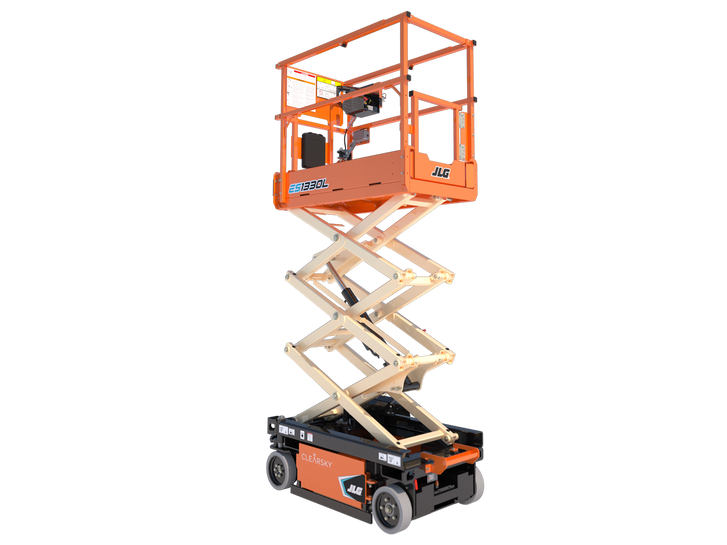

JLG ES1330L Electric Scissor Lift
| Experience the benefits of reduced charging time and longer runtime with the ES Series. Choose from a wide range of model options offering up to 1,000-lb capacity, with indoor-only and indoor/outdoor capabilities, and full proportional controls that come standard for ease of operation. Optional accessory packages enhance your productivity. |
- Proportional Controls
- Battery Condition Indicator
- All Motion Alarm
- DeltaQ - 27 amp Multi-Function Universal Charger
- Horn
- Hourmeter
- Tilt Alarm and Light
- AC Receptacle in Platform
- Active Pothole Protection System
- Lifting and Tie Down Points
- Fork Lift Pockets
- Lanyard Attach Points
- Steel Swing-Out Doors
- Visual Variable Tilt Indicator
- Manual Descent Cable
- Diamond Tread Steel Deck
- Greaseless Kingpin Joints
- Analyzer Port for Diagnostics
- Dynamic Braking
- Movable, Removable Platform Control
- Nickel Plated Pins
- Lubrication Free Scissor Arm Bushings
- Scissor Maintenance Prop
- 22 in. (55 cm) Foot-Actuated Deck
- Extension
- Removable Ladder
- Self Closing Gate
- Load Sensing System
- Anti-Vandalism Package
- Coiled Platform Control Box Cable
- Flashing Amber Beacon - LED
- Dual Flashing Amber Beacons - LED
- JLG™ Mobile Control
- MDI (Ground)
- CleanGuard™
Model:ES1330L, Work Height (in.): N/A
Featured Attribute:Electric, Fuel Type:N/A, Raised Platform Height (ft.): 13', Lowered Platform Height (ft.):2' 4", Overall Width (in.):2' 6", Overall Length (in.):4' 8", Platform Capacity at Lift Height (lb) (in.) : 250, Platform Lift Time (sec):25, Platform Lower Time (sec): 15, Ground Clearance (Collapsed) (in.): 2", Ground Clearance (Lifted) (in.):N/A, Wheelbase (in.):3' 6", Max Travel Speed (Lowered) (mph):2.4, Max Travel Speed (Lifted) (mph): 0.5, Max Gradeability (%):25%, Turn Radius Inside (deg): 0,Turn Radius Outside (deg): 4' 7", Number of Mast Stages: N/A, Electrical Voltage: 24V, Max Drive Height: 13'
Model:ES1330L
