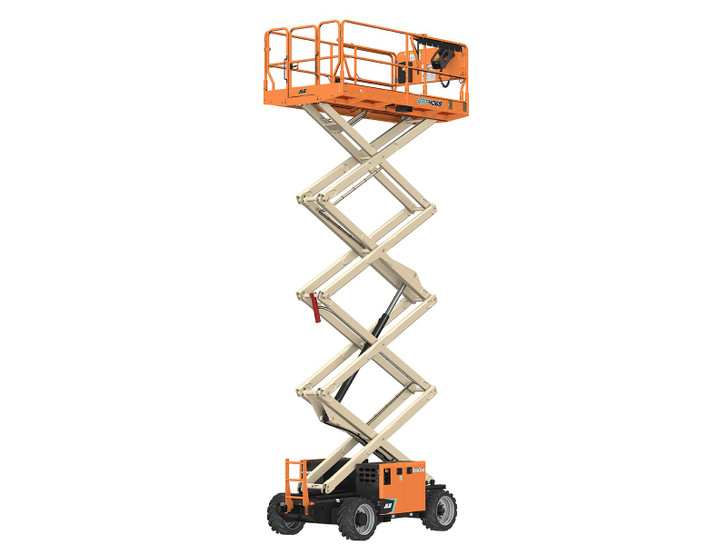

JLG ERT4069 Electric Scissor Lift

JLG ERT4069 Electric Scissor Lift

Our family of JLG® electric powered rough terrain scissors offers four models ranging in platform heights from 26 ft to 47 ft. Each of these models is capable of driving at full height, ensuring this line provides the broadest range of machines to handle any application.

•Limit Trips Up and Down: Electric powered rough terrain models offer drive capability at full height
•Carry More to Height: The largest platform size in its class lets you bring more operators and tools to the job
•Use the Latest Technology: An LCD platform control box with LiftSense technology and USB charging delivers next-level, real-time productivity and service communication to the operator
•Reduce Maintenance Needs: Higher parts commonality and a maintenance-free 2WD AC drive system simplifies service across the rough terrain family
•Stay in Compliance: This ANSI A92.20 compliant lift features a load sensing system and the ability to calibrate the system without weight

  • Hydraulic Leveling Jacks (Auto Level)
  • 26 x 12 Foam Filled Lug Tread Tires
  • 8 x 6V, 310 Amp-Hour Batteries (ERT2669,ERT3369)
  • 8 x 6V, 375 Amp-Hour Batteries (ERT4069)
  • Flashing Amber Beacon - LED
  • Dual Flashing Amber Beacons - LED
  • White Noise Backup Alarm
  • JLG CleanGuard
  • Special Hydraulic Fluids
  • Special Paint
  • ClearSky™
  • Operator Access Control
  • Generator Set (Kubota Stage V OC60-E4)6hp (4.5kW)
  • Heavy Duty Pipe Racks
Model:ERT4069, Work Height (in.): 46 ft
Featured Attribute:Electric, Fuel Type:Electric, Raised Platform Height (ft.): 40 ft 3 in., Lowered Platform Height (ft.):64 ft 10 in., Overall Width (in.):4 ft 10 in., Overall Length (in.):11 ft 7 in., Platform Capacity at Lift Height (lb) (in.) : 800, Platform Lift Time (sec):69, Platform Lower Time (sec): 46, Ground Clearance (Collapsed) (in.): 10 ft 1 in., Ground Clearance (Lifted) (in.):N/A, Wheelbase (in.):6 ft 9 in. , Max Travel Speed (Lowered) (mph):3.5, Max Travel Speed (Lifted) (mph): .5, Max Gradeability (%):35, Turn Radius Inside (deg): N/A,Turn Radius Outside (deg): 14 ft 7 in., Number of Mast Stages: N/A, Electrical Voltage: N/A, Max Drive Height: N/A
Model:ERT4069

Featured Information

Product Badge:
Aerial Work Platforms
Price Link:
Request a Quote
Phone:
(763) 425-9066
Condition:
New
Location:
Brooklyn Park, MN
Location:
Byron, MN
Specification Tab:
true
Operational Tab:
true
Promotions:
true
Financing:
https://www.commercialcreditapps.com/BusinessIQ/credec/caps/pla/loadAppInternalPLAPage?addEditFlag=A&appTemplateId=dZwGGY%2ByrR7r%2B0FeNDXmlw%3D%3D&appTemplateToken=2710
Featured Info:
true
Inventory Form:
true
Featured Attributes Tab:
true
Power Source:
Battery
Manufacturer:
JLG
Brochure:
https://atlastoyota.com/asset/61ddd85b09900
SKU:
ERT4069
