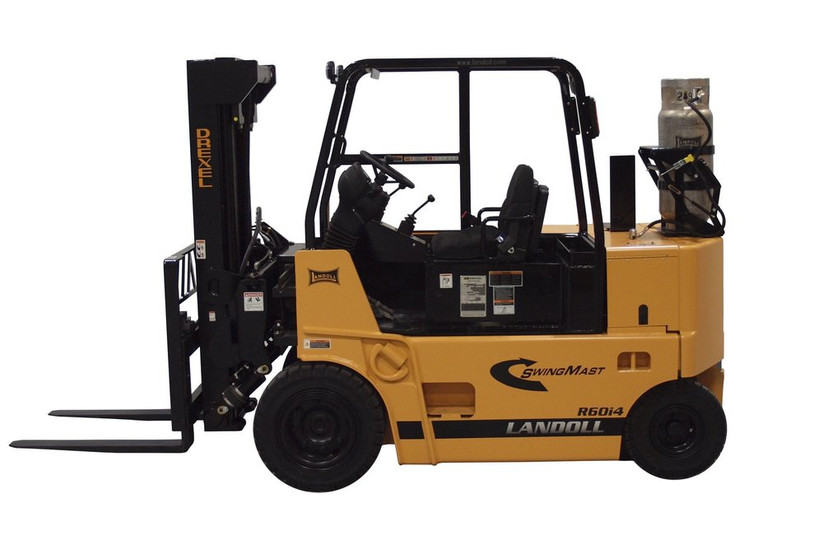

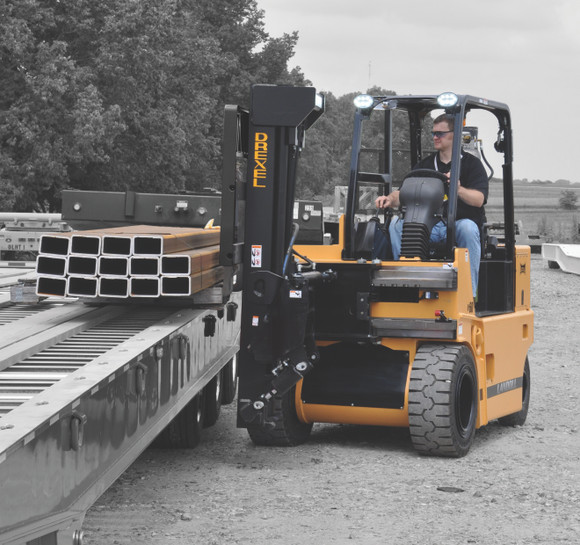

Drexel SwingMast IC VNA Forklift
| The 4-wheel Drexel R60i5 SwingMast® is an LP Gas powered, hydrostatically driven, front/side loading forklift that works in aisles as narrow as 72″ (1.82M)*, has a starting capacity of 6,000 lbs (2722kg) at 24″ (600mm) load center and lift heights available to 240″ (6.1M). |
- 6,000 lbs. (2722kg) Capacity at 24” (600mm) Load Center
- Four-Wheel Design, Dual Hydrostatically Driven Front Wheels
- Solid, Pneumatic-Style Drive and Steer Tires
- LPG Engine, GM 4.3L Tier III and LPG Fuel System (Tank Not Included)
- Integrated Computer Controlled Hydrostatic Drive and Efficient Fuel System
- Hydrostatic Power Steering with Tilt Steering Wheel
- Dual Joystick Hydraulic Control Levers
- 23″ (584mm) of Shift Includes 2″ (51mm) of Reach
- 40″ (1016mm) Forks with Standard Bottom Taper and Class III Carriage and Long Load Handling Package
- Dash Display Contains Engine Coolant Temperature Gauge, Hour Meter, Clock, Warning Icons and Display Function Buttons
- Neutral Start, Anti Restart, Operator Presence Seat Switch
- Adjustable Steering Column, Key Switch, Rear View Mirror, Horn and Seatbelt
- Comfortable Seated Operation with Vinyl Suspension Seat
- All Weather Cab With Heater and Windshield Wipers is Optional
- Non-Standard Fork Lengths
- LED Headlights, Flashing Light and Rear Safety Lights
- Integral Fork Positioner
- Single Auxiliary Hydraulics
- Cloth Seat
- Fire Extinguisher
- Steel / Glass Cab with Wipers, Heater and Defroster Vinyl Cab Enclosure
Model:R60I5, Tire Type: Polyurethane
Featured Attribute:Narrow Aisle, Power/ Fuel Type:LPG, Horsepower (hp):N/A, Max Capacity (lbs.):6000, Max Travel Speed Empty (mph):8, Max Travel Speed Loaded (mph): 8, Lift Speed Loaded (fpm):87, Max Gradeability Loaded (%): 15, Length to Fork Face (in.):122, Overall Height Collapsed (in.):89-113, Overall Width (in.):52, Overall Length (n.): N/A, Lift Height (in.):181-240, Turn Radius Outside (deg/in): 106, Wheelbase (in.): 77
Model:R60I5
