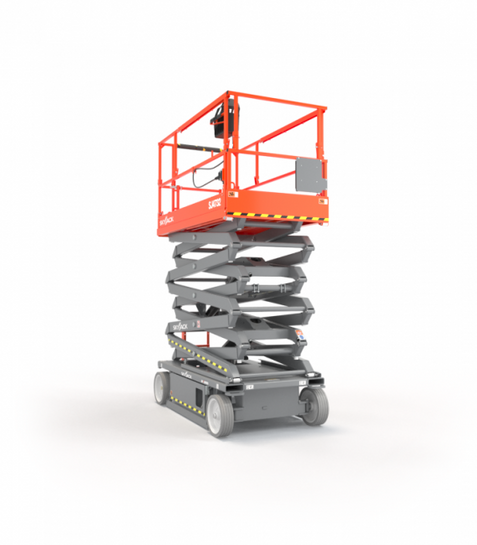

Skyjack DC Electric Scissor Lift (92" Length / 47" Width) SJ432

Skyjack DC Electric Scissor Lift (92" Length / 47" Width) SJ432

Skyjack electric scissor lifts have been recognized as an industry leader for over a decade. Our DC scissor lifts are ideal for indoor work where accuracy and precision turns around sensitive material is critical.
  • Drivable at full height
  • Variable speed, rear two wheel hydraulic drive
  • Dual holding brakes
  • SKYCODED™ Color coded and numbered wiring system
  • On-board visual interface with diagnostic capabilities
  • Shroud style, impact resistant composite control box with extended cable
  • Proportional controls for drive & lift functions
  • Tilt sensor (3.5° x 1.5°)
  • 4’ (1.22 m) Roll out extension deck
  • 24V DC Power source
  • Low voltage battery protection
  • 25% Gradeability
  • Solid rubber, non-marking tires
  • Pothole protection system
  • 110V AC Outlet on platform with GFI
  • 28 mph (12.5 m/s) Wind rating
  • Tilt alarm with drive & lift cut-out
  • All motion audible alarm
  • Lanyard attachment points
  • Operator horn
  • Forklift pockets and tie down/lift lugs
  • Overload sensing system
  • Fold down hinged railing system
  • Half height spring hinged entry gate
  • Telematics ready
  • 5-Year parts warranty on standard charger and controller
  • 2-Year Gold Leaf Warranty (5-year structural warranty)
  • Light duty pipe rack
  • Heavy duty pipe rack
  • Board carrier
  • Tool caddy
  • Flashing light
  • Dual flashing lights
  • 6’ (1.83 m) Powered ext. deck (SJ4726)*
  • *adds 251 lbs (114 kg) to unit weight and capacity remains the same
  • 800W AC Inverter
  • 250 Ah Batteries (cannot be combined with EE rating package)
  • AGM Batteries
  • Lockable swingout trays
  • EE Rating package (not available with telematics keypad)
  • Aircraft protection package (SJ4726)
  • Full height spring hinged entry gate
  • Bio oil
  • Secondary Guarding Lift Enable (SGLE)
  • Non-destructive testing
  • ELEVATE telematics (3-year or 5-year plans available)
  • ELEVATE Battery Management System (BMS) *
  • Warranty options (3-year or 5-year plans available)
Model:SJ432, Work Height (in.): 37’ 7”
Featured Attribute:Electric, Fuel Type:Battery, Raised Platform Height (ft.): 31’ 7”, Lowered Platform Height (ft.):50", Overall Width (in.):47", Overall Length (in.):91.6, Platform Capacity at Lift Height (lb) (in.) : 700 Overall, Platform Lift Time (sec):50, Platform Lower Time (sec): 30, Ground Clearance (Collapsed) (in.): 4.0", Ground Clearance (Lifted) (in.):0.5", Wheelbase (in.):69", Max Travel Speed (Lowered) (mph):2.0, Max Travel Speed (Lifted) (mph): 0.6, Max Gradeability (%):25%, Turn Radius Inside (deg): 28",Turn Radius Outside (deg): 104”, Number of Mast Stages: N/A, Electrical Voltage: N/A, Max Drive Height: Full Height
Model:SJ432
