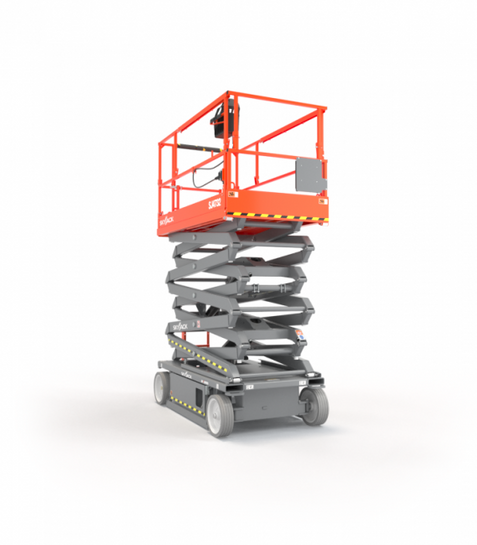

Skyjack DC Electric Scissor Lift (92" Length / 47" Width) SJ432
| Skyjack electric scissor lifts have been recognized as an industry leader for over a decade. Our DC scissor lifts are ideal for indoor work where accuracy and precision turns around sensitive material is critical. |
- Drivable at full height
- Variable speed, rear two wheel hydraulic drive
- Dual holding brakes
- SKYCODED™ Color coded and numbered wiring system
- On-board visual interface with diagnostic capabilities
- Shroud style, impact resistant composite control box with extended cable
- Proportional controls for drive & lift functions
- Tilt sensor (3.5° x 1.5°)
- 4’ (1.22 m) Roll out extension deck
- 24V DC Power source
- Low voltage battery protection
- 25% Gradeability
- Solid rubber, non-marking tires
- Pothole protection system
- 110V AC Outlet on platform with GFI
- 28 mph (12.5 m/s) Wind rating
- Tilt alarm with drive & lift cut-out
- All motion audible alarm
- Lanyard attachment points
- Operator horn
- Forklift pockets and tie down/lift lugs
- Overload sensing system
- Fold down hinged railing system
- Half height spring hinged entry gate
- Telematics ready
- 5-Year parts warranty on standard charger and controller
- 2-Year Gold Leaf Warranty (5-year structural warranty)
- Light duty pipe rack
- Heavy duty pipe rack
- Board carrier
- Tool caddy
- Flashing light
- Dual flashing lights
- 6’ (1.83 m) Powered ext. deck (SJ4726)*
- *adds 251 lbs (114 kg) to unit weight and capacity remains the same
- 800W AC Inverter
- 250 Ah Batteries (cannot be combined with EE rating package)
- AGM Batteries
- Lockable swingout trays
- EE Rating package (not available with telematics keypad)
- Aircraft protection package (SJ4726)
- Full height spring hinged entry gate
- Bio oil
- Secondary Guarding Lift Enable (SGLE)
- Non-destructive testing
- ELEVATE telematics (3-year or 5-year plans available)
- ELEVATE Battery Management System (BMS) *
- Warranty options (3-year or 5-year plans available)
Model:SJ432, Work Height (in.): 37’ 7”
Featured Attribute:Electric, Fuel Type:Battery, Raised Platform Height (ft.): 31’ 7”, Lowered Platform Height (ft.):50", Overall Width (in.):47", Overall Length (in.):91.6, Platform Capacity at Lift Height (lb) (in.) : 700 Overall, Platform Lift Time (sec):50, Platform Lower Time (sec): 30, Ground Clearance (Collapsed) (in.): 4.0", Ground Clearance (Lifted) (in.):0.5", Wheelbase (in.):69", Max Travel Speed (Lowered) (mph):2.0, Max Travel Speed (Lifted) (mph): 0.6, Max Gradeability (%):25%, Turn Radius Inside (deg): 28",Turn Radius Outside (deg): 104”, Number of Mast Stages: N/A, Electrical Voltage: N/A, Max Drive Height: Full Height
Model:SJ432
