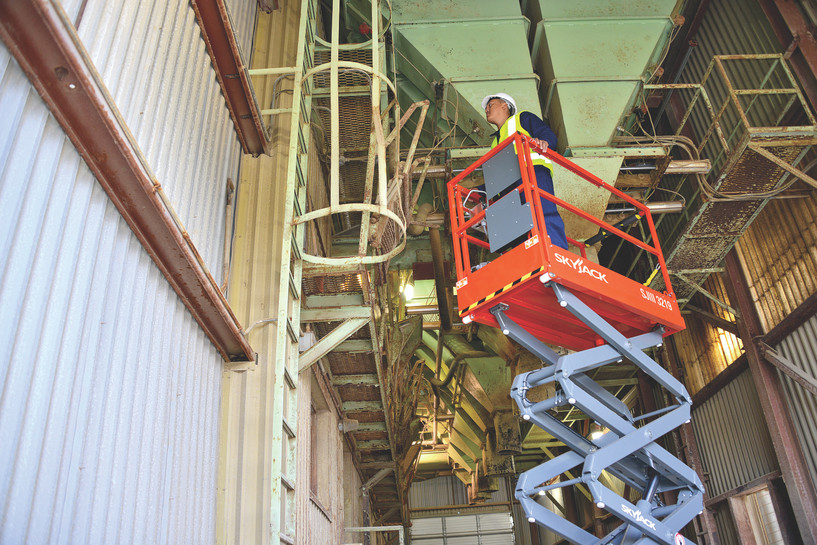

Skyjack DC Electric Scissor Lift (71" Length) SJ3219
| Skyjack electric scissor lifts have been recognized as an industry leader for over a decade. Our DC scissor lifts are ideal for indoor work where accuracy and precision turns around sensitive material is critical. |
- DC motor controller
- Drivable at full height
- Variable speed, front two wheel hydraulic drive
- 90° Steering (zero inside turning radius)
- Dual holding brakes
- Proportional controls for drive & lift functions
- 3’ (0.91 m) Roll out extension deck
- 24V DC Power source
- Low voltage battery protection
- 30% Gradeability
- Solid rubber, non-marking tires
- Pothole protection system
- 110V AC Outlet on platform with GFI
- 28 mph Wind rating (12.5 m/s)
- Tilt alarm with drive & lift cut-out
- All motion audible alarm
- Lanyard attachment points
- Operator horn
- Forklift pockets and tie down/lift lugs
- Relay based control system
- SKYCODEDTM color coded and numbered wiring system
- Telematics ready
- Flashing light
- Dual flashing lights
- Extended control box cable
- Light duty pipe rack
- Heavy duty pipe rack
- Tool caddy
- Drywall/board carrier (SJIII 3219)
- 800W AC inverter
- 250 Ah batteries (cannot be combined with EE rating package)
- AGM Batteries
- EE rating package
- Hinged railing system
- Half height spring hinged gate
- Full height spring hinged gate*
- Bio oil
- Non destructive testing
- ELEVATE telematics package
- Warranty Options (3 year or 5 year plans available)
- Secondary Guarding Lift Enable (SGLE) w/ shroud
Model:SJ3219, Work Height (in.): 25'
Featured Attribute:Electric, Fuel Type:Battery, Raised Platform Height (ft.): 19', Lowered Platform Height (ft.):39", Overall Width (in.):32", Overall Length (in.):71", Platform Capacity at Lift Height (lb) (in.) : 550 Overall, Platform Lift Time (sec):25, Platform Lower Time (sec): 29, Ground Clearance (Collapsed) (in.): 2.375”, Ground Clearance (Lifted) (in.):0.7", Wheelbase (in.):55", Max Travel Speed (Lowered) (mph):2, Max Travel Speed (Lifted) (mph): 0.7, Max Gradeability (%):30%, Turn Radius Inside (deg): 0,Turn Radius Outside (deg): 66", Number of Mast Stages: N/A, Electrical Voltage: N/A, Max Drive Height: Full Height
Model:SJ3219
