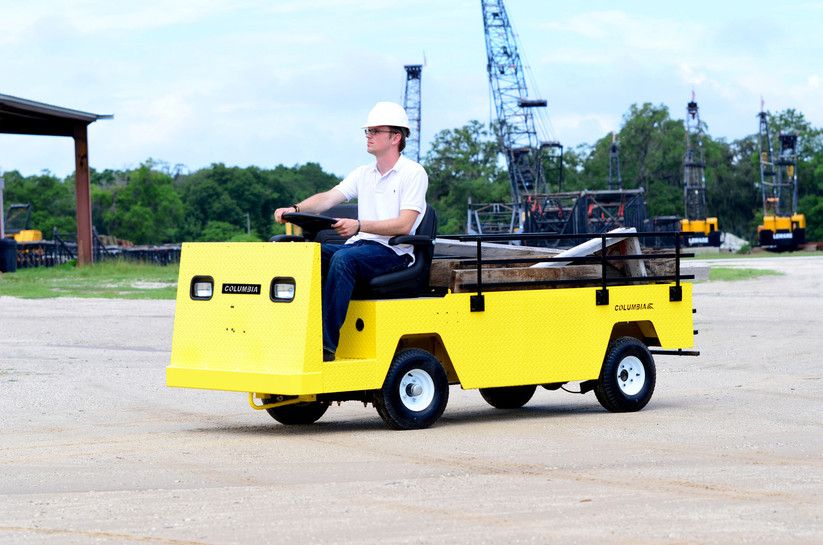

Columbia Payloader Burden Carrier
| Take light or heavy loads to places other high-capacity burden carriers simply can’t go and replace forklifts with a safer alternative. The Payloader carries up to 4,000 pounds, tows up to 18,000 pounds, and travels up to 17 miles per hour while offering exceptional maneuverability and efficiency without sacrificing durability. We use the same steel chassis for all weight classes to provide the dependability you need from a heavy carrier. |
PAYLOADER BURDEN CARRIER
|
Model
|
Rated Capacity (lbs.)
|
Towing Capacity (lbs.)
|
Weight (lbs)
|
Max Speed (mph)
|
|
Standard Duty
|
2,400
|
6,500
|
1,690
|
14
|
|
Heavy Duty
|
3,200
|
10,000
|
1,720
|
13
|
|
Super Duty
|
4,000
|
18,000
|
1,850
|
12
|
- Bed Length - 76"
- 12 gauge steel smooth plate body
- 10 gauge steel support sections
- Front and rear steel bumpers
- Best in class load capacities
- Great platform for customization
- Dual head and tail lights
- Adjustable bucket seats
- Class H motor insulation
- Seat belts
- Steel cab with doors
- Hour meter
- Battery exchange system
- Turn signals

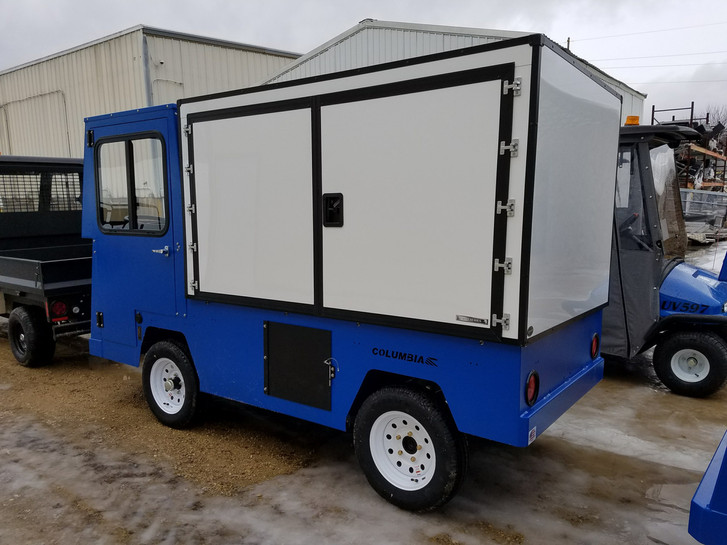

- Cargo van enclosures
- Tire/ wheel combinations
- Sun canopies
- Foldaway 2nd seat
- DC to DC converters
- In-motion beep
Model:Payloader Standard Duty, Tire Type: Pneumatic
Fuel Type: Battery, Electrical System Voltage: 48, Horsepower (hp):15.3-17.3, Max Travel Speed Empty (mph):12-14, Turning Radius (in.): Curb-to-Curb: 264 in. Intersecting Aisle: 92 in., Max Number of Persons: 2-4, Overall Width (in.):46, Overall Length (in.): 120.25, Ground Clearance (in.): 4.5, Wheelbase (in.): 65, Step Height (in.): 16.5, Load Bed Height (in.): 29, Bed (L x W) (in.): 76 x 45, Range (mi): 30
Model:Payloader Standard Duty
