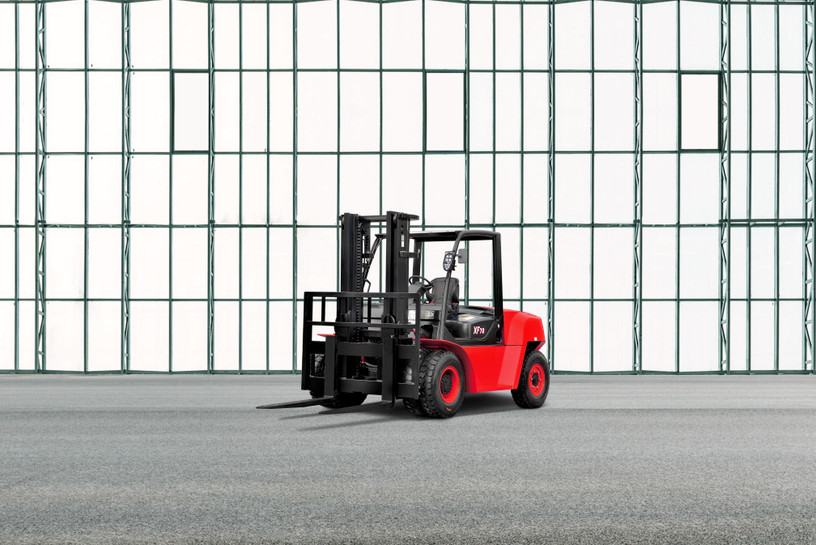

Hangcha Big Pneumatic Forklift FD70G
| In developing the XF series, comfort and easy operation is always considered,for example, inproved vibrating levels, compound engine damper and full floationg seat and cabin are applied. Comfortable also contribute to increased productivity. |
- Transmission
- Suspension transmission
- Oil filter
- Dipstick
- Oil cooler
- Non-asbestos bake
- Wet brake
- Steering
- Full hydraulic power steering
- Smaller diameter steering wheel
- Adjuster of steering wheel
- Shock absorber of steering axle
- Chassiss
- Skidproof pedal
- Rubber pedal
- Engine hood spring
- Control
- Power steering
- Suspension pedal
- Integrated combination switch
- Parking brake
- Hydraulic
- Dynamic load sending control valve
- Hydraulic oil filter
- Tilt cylinder self-lock valve
- Hydraulic oil dipstick
- Accumulator
- Hydraulic oil radiator
- Truck
- Traction device
- Hand grip
- Standard seat
- Floating overhead guard
- Waterproof cover on the guard
- Back view mirror
- Air pneumatic tyres
- Toolbox
- Power
- Big capacity aluminum radiator
- Whirlwind air cleaner
- Safety filter
- High-effcient intake muffler
- High-effcient exhaust muffler
- High-positioned exhaust system
- Electronics
- LED headlamp
- High-e cient LED rear lights
- Service-free start battery
- Combination controller
- LCD display
- Neutual switch
- Hour meter
- Fuel gauge
- Water temperature gauge
- Pre-heat indicator
- Charging indicator
- Engine fuel pressure warning
- Oil temperature
- Horn
- Reversing buzzer
- Air-filter with jam sensor
- Emergency power off
- Mast
- Standard wide view duplex mast
- Standard forks
- Standard fork carriage
- Mast speed limiting valve
- Load safety valve
- Mast down bu er device
- Mast up bu er device
- Side roller
- Fork positioner
- Truck
- Full cabin
- Cabin heater
- Front window
- Super pneumatic tyre
- Non-mark tyre(white/green)
- Suspension seat
- Fire extinguisher
- Special given color
- Boot for tilt cylinder
- Counter weight net
- OPS
- Power
- Overhead exhaust system
- Air pre-cleaner
- Radiator screen
- Fan protector
- Hydraulic
- Auxiliary hydraulic valve
- Elecctro-hydraulic
- Proportional control system
- Duplex wide view free-lift mast
- Triplex wide view free-lift mast
- Special forks
- Wider fork carriage
- Widerload back rest
- Electronics Mast
- Front working light
- Rear working light
- Warning lamp
Model:FD70G, Tire Type: Pneumatic
Featured Attribute:N/A, Power/ Fuel Type:Diesel, Horsepower (hp):74, Max Capacity (lbs.):15500, Max Travel Speed Empty (mph):17.6, Max Travel Speed Loaded (mph): 13.7, Lift Speed Loaded (fpm):70.9, Max Gradeability Loaded (%): 36, Length to Fork Face (in.):142, Overall Height Collapsed (in.):98.4, Overall Width (in.):78.5, Overall Length (n.): 189, Lift Height (in.):118, Turn Radius Inside (deg/in): 132, Wheelbase (in.): 90.5
Model:FD70G
