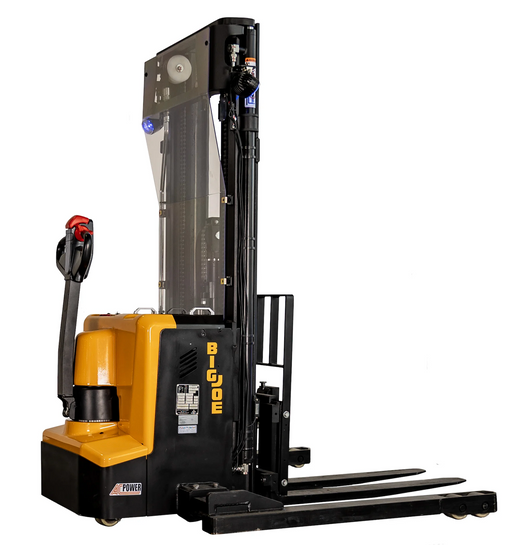

Big Joe StraddleStacker WS25-126
|
*Price does not include battery or freight MAXIMUM OPERATOR CONFIDENCE AND PRODUCTIVITY SUPPORTED BY AGILITY AND CONTROL Increasingly tight warehouse and production environments challenge operators to get the job done on time and on target. WS25-40 walkie stackers help operators maneuver in tight spaces with a class-leading, compact design. Fast lift and lower speeds are adjustable and combine with fully proportional controls, giving operators pinpoint control. |
- 24V infinitely variable travel control
- Lithium-ion battery with onboard 30A charger
- Lithium Ion Phosphate (LFP) battery chemistry
- AC drive motor
- Anti-rollback and neutral braking
- Regenerative braking
- Drive tire: (1) 9 in. x 3 in. smooth polyurethane
- Traction drive tire - rubber (optional)
- Traction Drive Tire - Poly (optional)
- Class II ITA fork carriage: 16.25 in. tall x 31.4 in. wide
- 42 in. standard taper forks
- 36 in. tall load backrest
- ClearView polycarbonate mast guard
- Hang-on sideshifter (optional)
- 48 in. tall load backrest (optional)

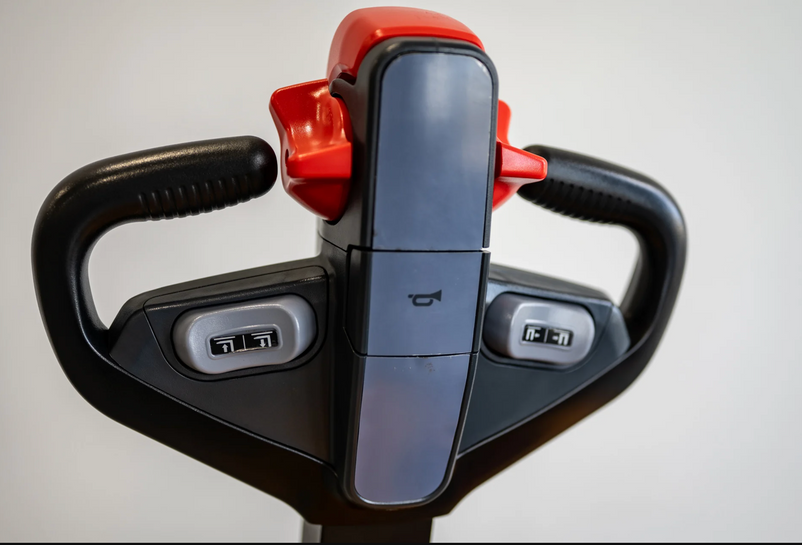

- Thumb control travel functions
- Crawl speed travel control
- Proportional fingertip hydraulic controls
- Belly button reversing switch and horn

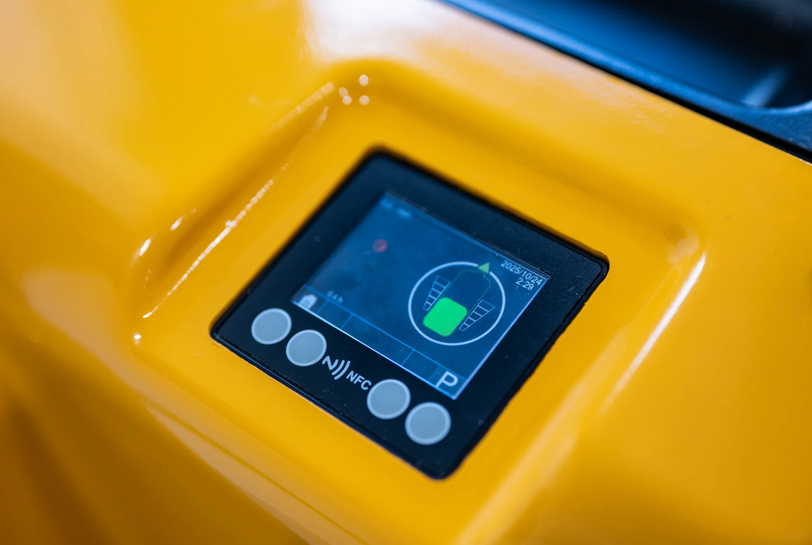

- LCD display with battery discharge indicator, hour meter and programming controls
- Dual USB charge ports
- Convenient storage tray
- Key Switch
Model:WS25-126, Tire Type: Polyurethane
Featured Attribute:Electric, Power/ Fuel Type:Battery, Electrical System Voltage: 24V, Max Capacity (lbs.):2500, Max Travel Speed Empty (mph):3.4, Max Travel Speed Loaded (mph): 3.1, Lift Speed Loaded (fpm):35.4, Max Gradeability Loaded (%): 10, Length to Fork Face (in.):32.1, Overall Width (in.):48, Overall Length (n.): 74.2, Lift Height (in.):126, Turn Radius (deg/in): 58.4, Wheelbase (in.): 50.3
Model:WS25-126
