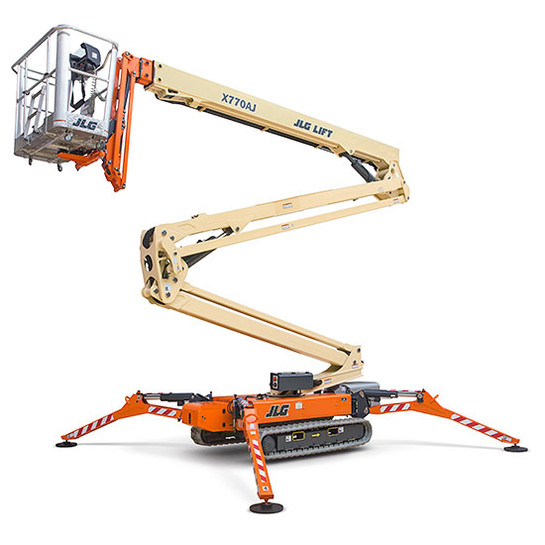

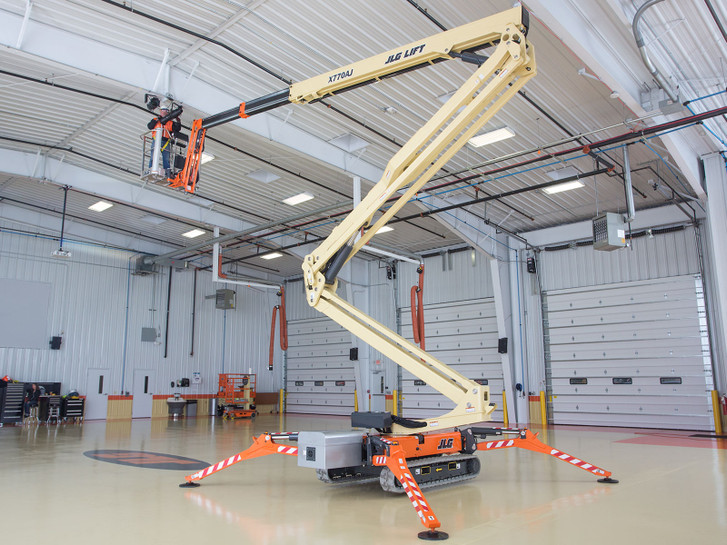

JLG 77' Compact Crawler Boom Lift X770AJ

JLG 77' Compact Crawler Boom Lift X770AJ

Drive speed control for smooth operation on a variety of terrains
500 lb unrestricted platform capacity
Regenerative valve on telescopic cylinder resulting 50% increase in speed
Fits through standard double doors
Auto levels on uneven surfaces
  • Drive speed control for smooth operation on a variety of terrains
  • 500 lb unrestricted platform capacity
  • Regenerative valve on telescopic cylinder resulting 50% increase in speed
  • Fits through standard double doors
  • Auto levels on uneven surfaces
Model:X770AJ, Work Height (in.): 84'
Featured Attribute:Electric, Fuel Type:Optional, Raised Platform Height (ft.): 77' 5", Lowered Platform Height (ft.):6' 6", Overall Width (in.):39", Overall Length (in.):20' 9", Platform Capacity at Lift Height (lb) (in.) : 500, Platform Lift Time (sec):N/A, Platform Lower Time (sec): N/A, Ground Clearance (Collapsed) (in.): N/A, Ground Clearance (Lifted) (in.):N/A, Wheelbase (in.):N/A, Max Travel Speed (Lowered) (mph):.7, Max Travel Speed (Lifted) (mph): N/A, Max Gradeability (%):28%, Turn Radius Inside (deg): N/A,Turn Radius Outside (deg): N/A, Number of Mast Stages: N/A, Electrical Voltage: 76V, Max Drive Height: N/A
Model:X770AJ

Featured Information

Product Badge:
Aerial Work Platforms
Price Link:
Request a Quote
Phone:
(763) 425-9066
Condition:
New
Location:
Brooklyn Park, MN
Location:
Byron, MN
Specification Tab:
true
Operational Tab:
true
Promotions:
true
Financing:
https://www.commercialcreditapps.com/BusinessIQ/credec/caps/pla/loadAppInternalPLAPage?addEditFlag=A&appTemplateId=dZwGGY%2ByrR7r%2B0FeNDXmlw%3D%3D&appTemplateToken=2710
Featured Info:
true
Inventory Form:
true
Featured Attributes Tab:
true
Power Source:
Diesel
Featured Attribute:
Compact
Manufacturer:
JLG
Brochure:
https://atlastoyota.com/asset/61ddd742aeade
SKU:
X770AJ

Specifications and Operational Information

Condition
New
Manufacturer
JLG

Current Promotions

Apply For Financing

Download and Print Brochure

Available at These Locations
