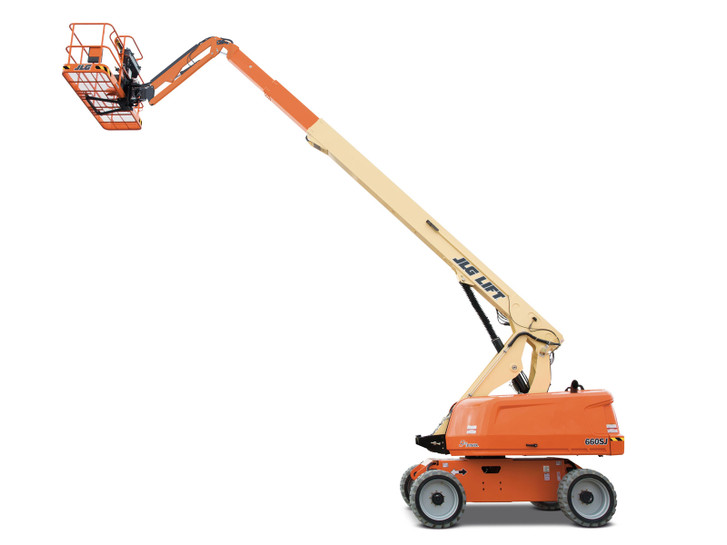

JLG Engine Powered Telescopic Boom Lift 660SJ
| 602 Series telescopic boom lifts have a powerful combination of performance and reliability so you can conquer all your worksite challenges. Lift heavier loads with increased platform capacities and improve your access to overhead tasks with enhanced horizontal outreach. Mud, sand and rough terrain are no match for the standard oscillating axle and 45% grade climbing ability on a 600 Series telescopic boom lift. Plus, our Hi-Capacity telescoping lifts allow you to push the envelope without compromise, offering three capacity zones, each rated for three occupants and tools. |
- Oscillating Axle
- Hydraulic Platform Rotator
- 110V AC Receptacle in the Platform
- 5 Degree Tilt Alarm/Indicator Light
- Swing-Out Engine Tray
- 12V DC Auxiliary Power
- Hourmeter
- SkyGuard SkyLine™
- Control ADE® System
- All Motion Alarm
- Proportional Controls
- Gull-Wing Hoods
- Platform Console Machine Status
- Light Panel*
- Engine Distress Warning/Shutdown—
- Selectable via JLG Analyzer
- Lifting/Tie Down Lugs
- Load Sensing System
- 36 x 72 in. (0.91 x 1.83 m) Platform
- Fall Arrest Platform
- Inward Swinging Gate
- Soft Touch System
- SkySense™
- Operators Tool Tray
- Tow Package
- 43.5 lb (19.7 kg) Propane Tank
- Cold Weather Start Kit1
- Hostile Environment Kit2
- Light Package3
- Flashing Amber Beacon
- Arctic Package4
- Accessory Packages:
- - SkyWelder®
- - SkyPower®
Model:660SJ, Work Height (in.): N/A
Featured Attribute:Telescopic, Fuel Type:Diesel, Raised Platform Height (ft.): 65' 8", Lowered Platform Height (ft.):8' 2", Overall Width (in.):8' 2", Overall Length (in.):35' 5, Platform Capacity at Lift Height (lb) (in.) : 550-750, Platform Lift Time (sec):N/A, Platform Lower Time (sec): N/A, Ground Clearance (Collapsed) (in.): 11", Ground Clearance (Lifted) (in.):N/A, Wheelbase (in.):N/A, Max Travel Speed (Lowered) (mph):3.8, Max Travel Speed (Lifted) (mph): N/A, Max Gradeability (%):45%, Turn Radius Inside (deg): 5' 3",Turn Radius Outside (deg): 12' 8", Number of Mast Stages: N/A, Electrical Voltage: 12V, Max Drive Height: N/A
Model:660SJ
