JLG 25AM Push Around Vertical Mast Lift

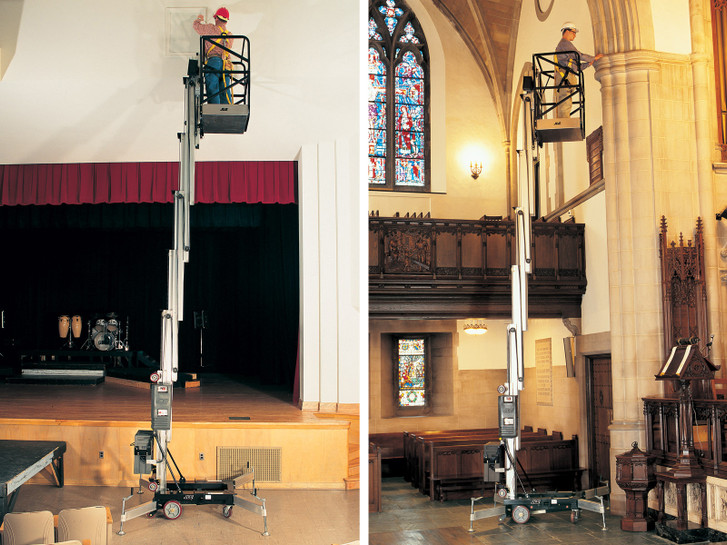

| Virtually eliminating the need for scaffolding or ladders, JLG® push-around vertical mast lifts allow you to get closer to your overhead work and maintenance applications. You’ll be able to fit through standard doorways, maneuver your way through narrow aisles and go more places than ever before. Push-around vertical mast lifts are great for general repair work, routine maintenance, managing inventory and even hanging holiday decorations. |
- Lanyard Attachment Anchor for Body
- Harness
- Quick-Change 26 in. W x 28 in. L (.66 x .71m) —Gull-Wing Entry Platform
- Quick-Change Platform Mounts
- Low Maintenance Anodized Mast
- Non-Marking Tires
- 110 Volt Double Receptacle in Platform
- 93 AH Lead-Acid Battery—DC Models Only
- Descent Alarm
- Automatic Battery Charger—DC Models
Only - Battery Discharge Indicator (BDI)
- Hourmeter
- Roller Loading Device: For Loading on
- Pickup Trucks
- Auto Power Saver—Shuts Off Power When
Idled - ANSI, OSHA & CSA Compliant
- 22x22” Gullwing Platform
- 26x26” Ride Side Entry Platform
- Tool Tray
- 8 x 18 x 5 (20 x 46 x 13 cm)
- Programmable 4-Digit Security Lock
- Crane Hook
- Locking Casters
- Auxiliary Lowering
Model:25AM, Work Height (in.): 31'
Featured Attribute:Push Around, Fuel Type:N/A, Raised Platform Height (ft.): 24' 10", Lowered Platform Height (ft.):6' 6", Overall Width (in.):2' 6", Overall Length (in.):4', Platform Capacity at Lift Height (lb) (in.) : 350, Platform Lift Time (sec):N/A, Platform Lower Time (sec): N/A, Ground Clearance (Collapsed) (in.): N/A, Ground Clearance (Lifted) (in.):N/A, Wheelbase (in.):N/A, Max Travel Speed (Lowered) (mph):N/A, Max Travel Speed (Lifted) (mph): N/A, Max Gradeability (%):N/A, Turn Radius Inside (deg): N/A,Turn Radius Outside (deg): N/A, Number of Mast Stages: N/A, Electrical Voltage: N/A, Max Drive Height: N/A
Model:25AM
