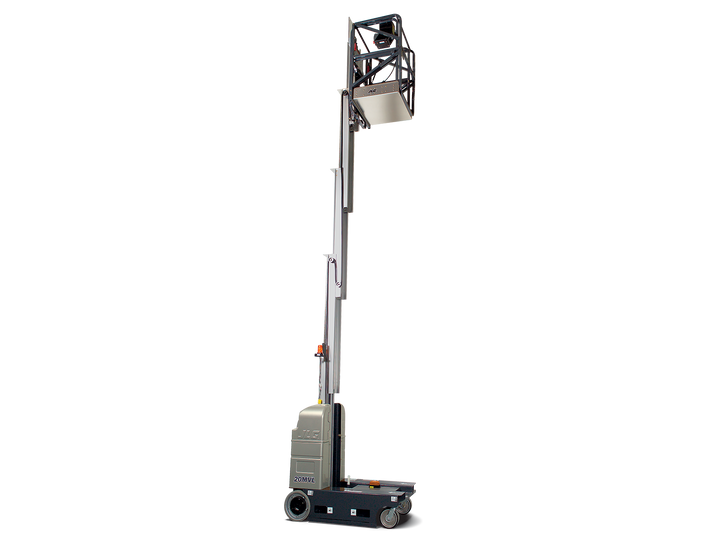

JLG 20MVL Drivable Vertical Mast Lift
| With stellar battery life, maintenance-free components and robust construction, JLG® driveable vertical mast lifts last longer and are more reliable than ever. All vertical mast lift models run on electric power thanks to a reliable electric drive. They also offer ease of operation and greater maneuverability. With mast lifts from JLG, you can get maintenance jobs done quickly and efficiently. |
- Heavy Duty Planetary Gear Drive Motors
- with 5 Times the Life of Previous Models
- Low Maintenance Anodized Aluminum
- Mast
- Quick-Change Platform Mounting
- Safety Interlocked Controls
- Pistol-Grip Platform Control
- Single Joystick Drive and Steer Control—
- Solid State, Microprocessor Controlled
- Variable Speed Elevation Controls
- Automatic Pothole Protection System
- 1-1/2 Degree Tilt Alarm
- Key Lock Main Power Switch
- Automatic Power-Off Battery Saver
- Control
- Battery Discharge Indicators—Platform and Base
- Transportation Tie Downs
- Built-In Fork Truck Pockets
- Lanyard Attachment Anchor
- Hourmeter
- All Motion Alarm
- 110 Volt Double Receptacle on Platform
- Flashing Amber Beacon
- Horn
- ANSI, OSHA & CSA Compliant
- Platform Options:
- Narrow Platform
- 22 x 25 in. (56 x 64 cm)
- Oversized Gull-Wing Front Entry 28 x 26 in. (71 x 66 cm)
- Extension Gull-Wing Front Entry 26 x 26 in. (66 x 66 cm) – Retracted 26 x 49 in. (66 x 125 cm) – Extended
- Programmable 4-Digit Security Lock
- Lifting Eye for a Crane Hook
- Tool Tray 8 in. W x 18 in. L x 5 in. D (20 x 45 x 12.5 cm)
Model:20MVL, Work Height (in.): 25' 1"
Featured Attribute:Electric, Fuel Type:Battery, Raised Platform Height (ft.): 19' 1", Lowered Platform Height (ft.):6' 6", Overall Width (in.):2' 6", Overall Length (in.):4' 6", Platform Capacity at Lift Height (lb) (in.) : 350, Platform Lift Time (sec):N/A, Platform Lower Time (sec): N/A, Ground Clearance (Collapsed) (in.): 2", Ground Clearance (Lifted) (in.):N/A, Wheelbase (in.):N/A, Max Travel Speed (Lowered) (mph):3.5, Max Travel Speed (Lifted) (mph): 0.6, Max Gradeability (%):25%, Turn Radius Inside (deg): 0,Turn Radius Outside (deg): 0, Number of Mast Stages: N/A, Electrical Voltage: 12V, Max Drive Height: N/A
Model:20MVL
