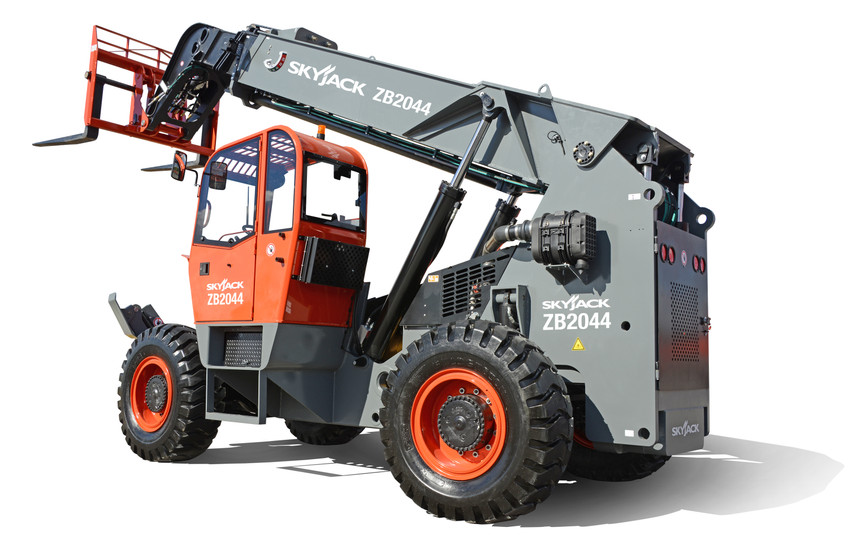

Skyjack 20K Capacity Telehandler ZB2044
| In a class of its own, Skyjack’s ZB2044 is best described as robust, rugged, and reliable. The ZB2044 offers exceptional maneuverability making it the perfect jobsite substitute for heavy cranes and handlers. Similar to Skyjack’s TH Series, the ZB2044 offers proprietary features as well as the industry’s best life cycle value. |
- KEY FEATURES
- 12,000 lbs (5,443 kg) Maximum lift capacity
- 56’ 3” (17.14 m) Maximum lift height
- 6,000 lbs (2,722 kg) Capacity @ maximum lift height (no outriggers)
- 7,000 lbs (3,175 kg) Capacity @ maximum lift height (on outriggers)
- 42’ 6” (12.95 m) Maximum forward reach
- 1,000 lbs (454 kg) Capacity @ maximum forward reach (no outriggers)
- 3,500 lbs (1,588 kg) Capacity @ maximum forward reach (on outriggers)
- Tier 4 final 107hp/320 lb-ft Deutz TCD 3.6L engine
- 22,500 lbs Drawbar pull
- 3 Speed Dana powershift transmission & Dana axles
- Yoke mounted lifting hook
- 48” Quick attach, floating pin carriage
- Pallet forks, 2.25” x 5” x 48”, 12,000 lbs capacity
- STANDARD FEATURES
- Axle mount outriggers
- Auxiliary hydraulics
- Engine block heater
- Quick attach carriage mount
- Rear window with wiper
- Side window
- Suspension seat
- Single multifunction pilot operated joystick control
- In-cab engine multifunction display
- Hydraulic test ports
- Lockable in-cab storage box
- Rear towing hitch pin
- Fiberglass engine cowling
- Steel component and access covers
- 2-Year Gold Leaf Warranty (5-year structural warranty)
- OPTIONS
- Closed cab (adds front and top window, sliding side window, wipers,
full door, heater/defroster, operator fan) - Air conditioning (closed cab only)
- Premium joystick
- Back up sensor
- Backup sensor and camera
- Service convenience package (remote axle grease points & clean drain
engine oil pan valve) - Cold weather package (cold start engine oil, 50/50 antifreeze mix,
battery blanket & hyd. tank heater) - Four wheel fenders
- Road light package (2 front headlights, front & rear turn signals, tail lights,
brake lights) - Work light package (2 front facing & 2 rear facing halogen work lights)
- Boom light package (2 boom mounted LED work lights)
- Rotating beacon
- Positive air shut-off valve
- Reserve brake system
- Pintle hitch (in lieu of standard hitch pin)
- Non-destructive testing
- ELEVATE telematics
- Warranty Options (3-year or 5-year plans available)
Model:ZB2044, Work Height (in.): 56’ 3”
Featured Attribute:High-Capacity, Fuel Type:N/A, Raised Platform Height (ft.): N/A, Lowered Platform Height (ft.):N/A, Overall Width (in.):N/A, Overall Length (in.):8’ 5”, Platform Capacity at Lift Height (lb) (in.) : 23’ 1”, Platform Lift Time (sec):19", Platform Lower Time (sec): N/A, Ground Clearance (Collapsed) (in.): 15, Ground Clearance (Lifted) (in.):N/A, Wheelbase (in.):N/A, Max Travel Speed (Lowered) (mph):173”, Max Travel Speed (Lifted) (mph): N/A, Max Gradeability (%):12,000, Turn Radius Inside (deg): N/A,Turn Radius Outside (deg): N/A, Number of Mast Stages: N/A, Electrical Voltage: N/A, Max Drive Height: N/A
Model:ZB2044
